Features
ColorQube 8570/8870 Color Printer
User Guide 18
Parts of the Printer
This section includes:
•
Right-Front View on page 18
• Right-Side View on page 19
• Rear View on page 19
• Control Panel on page 20
Right-Front View

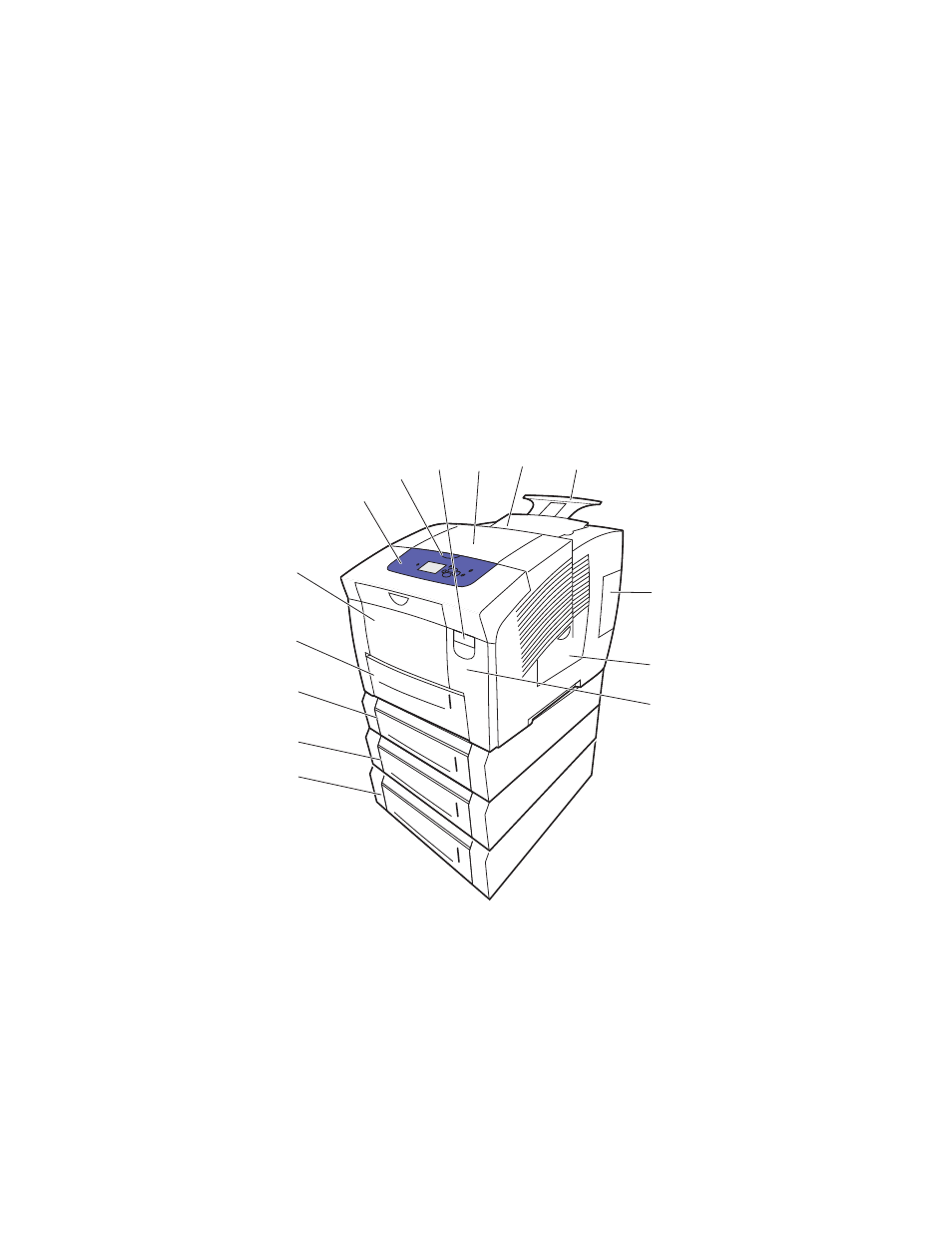

View shows the ColorQube 8570/8870 printer with all three optional feeder trays.
1. Optional 525-Sheet Feeder (Tray 5)
2. Optional 525-Sheet Feeder (Tray 4)
3. Optional 525-Sheet Feeder (Tray 3)
4. Standard 525-Sheet Tray 2
5. Tray 1, 100-Sheet max. capacity
6. Control panel
7. Exit door release 8. Front door release
9. Exit door B
10. Ink loader door C
11. Legal/A4 output tray extension
12. Interface (I/O) door E
13. Side door D
14. Front door A
8X70-044
2
1
3
4
5
8 10 11 9
7
6
13
12
14
