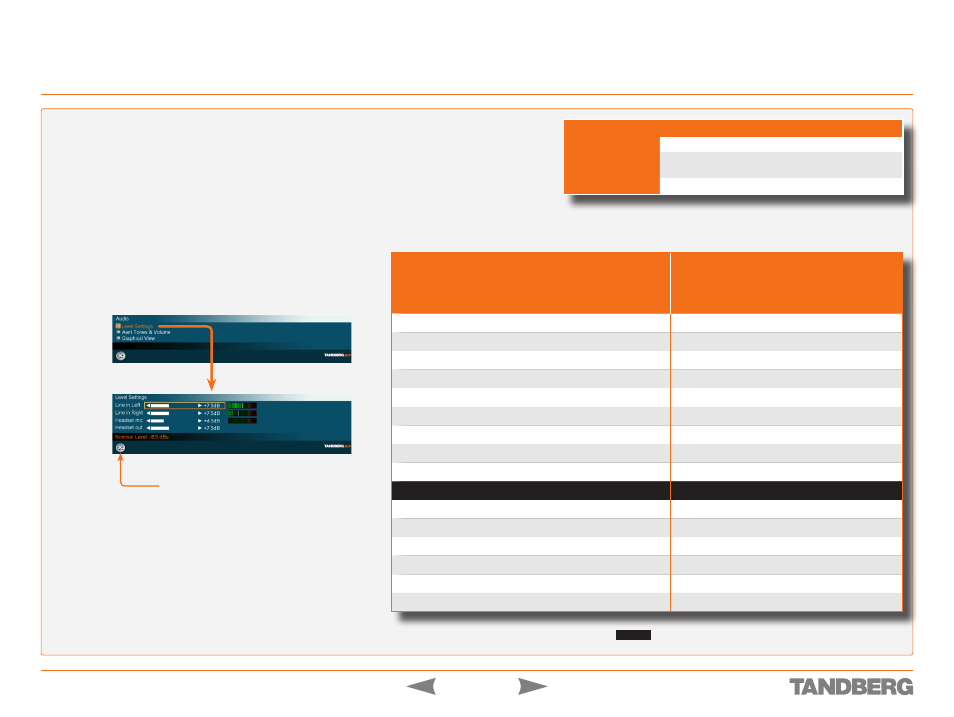

Level Settings
Control Panel > Audio Settings
Level Settings lets you set each max level independently. The
volume control (on the remote control) acts as an attenuator with
which you then may adjust the volume without the risk of causing
damage to the transducers.
Note! When you use the volume control, it may look like you are
able set the volume higher than the level specified here (gain, and
not just attenuation). However, a limiter is used to ensure that low
levels are amplified, while high and potentially damaging levels will
be limited so that the maximum level as specified here will not be
exceeded. A compression will thus occur at higher levels.
A volume setting potentially employing the limiter will be indicated
by the volume bar changing colour to yellow and red.
Tip! Since the unit has built-in micro-
phones and loudspeakers, level set-
tings apply to Line level inputs and the
headset loudspeakers / microphone
only.
Headset Output Levels (from System) Headset Input Levels (to System)
Signal levels Abs. max output level Nominal level Signal Levels Clipping Level Nominal Level
Output menu
level setting
Vpp dBu dBu Input menu
level setting
mVpp dBu dBu
0,0 dB 0,2 Vpp –20,4 dBu –38,4 dBu 0,0 dB 80 mVpp –28,8 dBu –46,8 dBu
1,5 dB 0,2 Vpp –18,9 dBu –36,9 dBu 1,5 dB 67 mVpp –30,3 dBu –48,3 dBu
3,0 dB 0,3 Vpp –17,4 dBu –35,4 dBu 3,0 dB 57 mVpp –31,8 dBu –49,8 dBu
4,5 dB 0,4 Vpp –15,9 dBu –33,9 dBu 4,5 dB 48 mVpp –33,3 dBu –51,3 dBu
6,0 dB 0,4 Vpp –14,4 dBu –32,4 dBu 6,0 dB 40 mVpp –34,8 dBu –52,8 dBu
7,5 dB 0,5 Vpp –12,9 dBu –30,9 dBu 7,5 dB 34 mVpp –36,3 dBu –54,3 dBu
9,0 dB 0,6 Vpp –11,4 dBu –29,4 dBu 9,0 dB 28 mVpp –37,8 dBu –55,8 dBu
10,5 dB 0,7 Vpp –9,9 dBu –27,9 dBu 10,5 dB 24 mVpp –39,3 dBu –57,3 dBu
12,0 dB 0,8 Vpp –8,4 dBu –26,4 dBu 12,0 dB 20 mVpp –40,8 dBu –58,8 dBu
13,5 dB 1,0 Vpp –6,9 dBu –24,9 dBu 13,5 dB 17 mVpp –42,3 dBu –60,3 dBu
15,0 dB 1,2 Vpp –5,4 dBu –23,4 dBu 15,0 dB 14 mVpp –43,8 dBu –61,8 dBu
16,5 dB 1,4 Vpp –3,9 dBu –21,9 dBu 16,5 dB 12 mVpp –45,3 dBu –63,3 dBu
18,0 dB 1,7 Vpp –2,4 dBu –20,4 dBu 18,0 dB 10 mVpp –46,8 dBu –64,8 dBu
19,5 dB 2,0 Vpp –0,9 dBu –18,9 dBu 19,5 dB 8 mVpp –48,3 dBu –66,3 dBu
21,0 dB 2,4 Vpp 0,6 dBu –17,4 dBu 21,0 dB 7 mVpp –49,8 dBu –67,8 dBu
22,5 dB 2,8 Vpp 2,1 dBu –15,9 dBu 22,5 dB 6 mVpp –51,3 dBu –69,3 dBu
Headset input Headset Output
Signal type Unbalanced Unbalanced
Connector
(codec)
3.5mm jack, sleeve-gnd,
tip-microphone
3.5mm stereo jack, sleeve-gnd,
tip-left, ring-right
Impedance 2200 ohms Low
Input is System Input (from Headset), Output is System Output (to Headset)
Figures shown INVERTED denote default values.
Back . Takes you
one level back up.
