Graphical View of Settings
Control Panel > Audio Settings

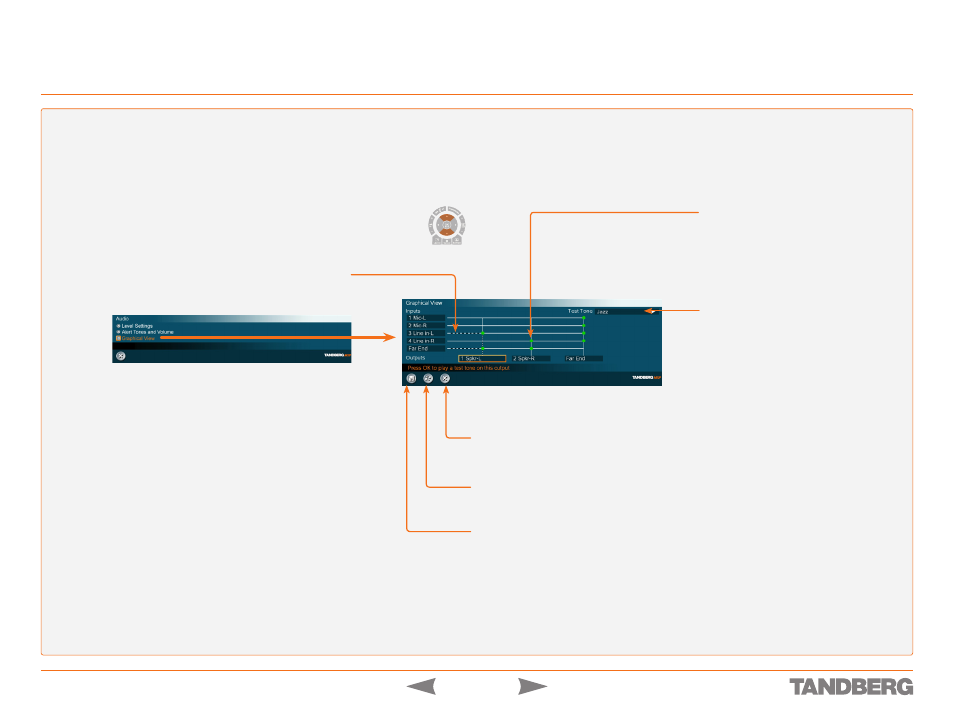

Ever wondered how things are connected in your system? The
Graphical View is a matrix showing what is connected to what,
and by playing test tones you will be able to verify that the con-
nections actually are as you would like them to be.
The green dots indicates connection and
when you play the test tone (or rather the
test signal) the “marching ants” will show
you the signal flow. To play a test tone
navigate to any of the Inputs or Outputs
and click
OK . The test signal will then ap-
pear at the outputs indicated.
TEST TONE
To verify that things actually are con-
nected and work the way they claim to
be connected and work, you may use
any of the alert signals available, as test
signal.
Touch tones Snapshot
Camera Presets
Moving up and
down in menu.
CANCEL
Select this icon and press OK
to leave the menu undoing any
changes.
RESTORE DEFAULTS
Select this icon and press OK
to restore the default settings.
SAVE
Select this icon and press
OK to leave the menu putting
changes into effect.
The “marching ants”
