Icons

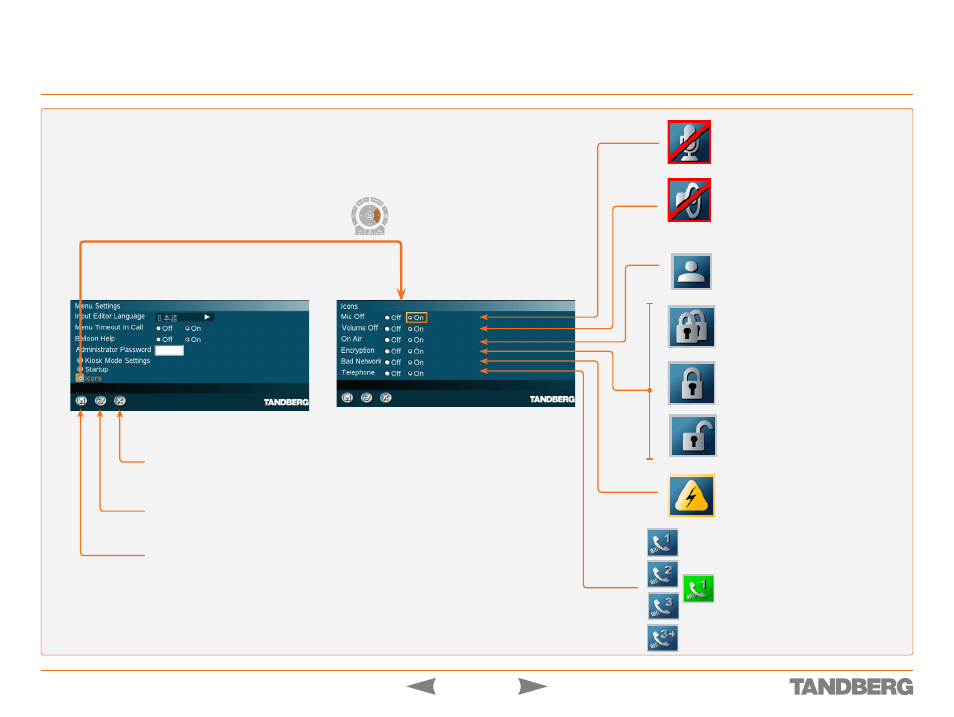

Control Panel > Menu Settings
MICROPHONE OFF
This indicator is shown when the micro-
phone is turned off. Press the
Mic off but-
ton again to turn the microphone back on.
VOLUME OFF
This indicator is shown when the volume
is turned off. Press
Volume + to turn the
volume back on.
ON AIR
When you have the floor in a multisite
conference this is indicated by the On
Air icon.
SECURE CONFERENCE, AES
This double padlock indicator is shown
when AES encryption (Secure Confer-
ence) is active.
SECURE CONFERENCE, DES
This padlock indicator is shown when DES
encryption (Secure Conference) is active.
NOT SECURE CONFERENCE
This open padlock indicator is shown
during the initialization phase for AES or
DES encryption. During this period the
call is not secure.
BAD NETWORK
This indicator appears if the system de-
tects network anomalies like packet loss,
jitter etc., during a call. Open the menu by
pressing the
OK/Menu button and select
the warnings icon too see details.
TELEPHONE
This indicator is shown when there also
are telephone only participants in a mul-
tisite conference. Indications are given
for 1, 2, 3 or more than 3 participants.
Icons turn green when a telephone par-
ticipant has the floor.
CANCEL
Select this icon and press OK
to leave the menu undoing any
changes.
RESTORE DEFAULTS
Select this icon and press OK
to restore the default settings.
SAVE
Select this icon and press
OK to leave the menu putting
changes into effect.
Touch tones Snapshot
Camera Presets
Note! Icons set to Off will not appear!
