Preparing for Use

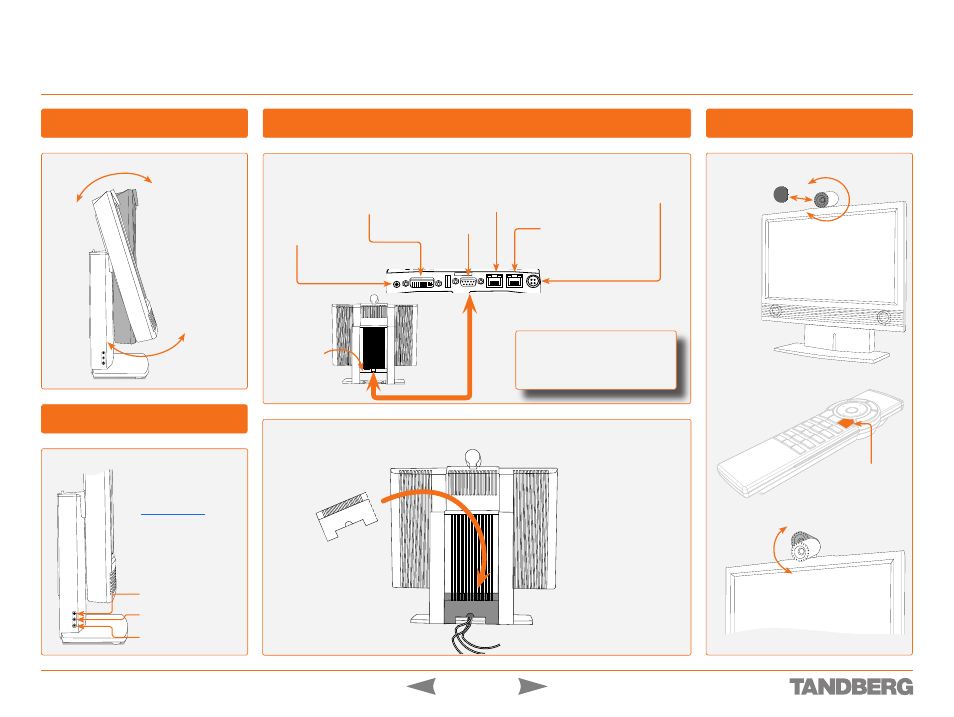

Getting Acquainted with the System
Tilt the camera
manually to make it
point at you.
The Lens Cap is held in
place by a magnet.
Headset toggle
button
Headset out
Headset
microphone
For more on the
use of headset and
microphone, see
Sound Matters .
Tilt the display
manually to get a
better viewing angle.
Selfview key
Some drawing details may differ from actual system.

There is a lid in the accessories box. Mount the lid as shown. The lid will be held in place
by magnets.
Turn the ring to focus
the camera. To see
yourself press the
Selfview key on the
Remote Control.
Connecting Cables Camera Matters
Connecting Headset
Viewing Angle Adjustment

Connect cables as shown.
CAUTION! Do not rest the system
on the camera or on the screen.
Use the mirror to locate the
connectors.
Connect the
video system
to your LAN
To let the PC and
the video system
share a single LAN
connection, connect
your PC to the LAN
through the video
system.
Audio / Line In
for PC sound
RS-232
(for adminstrator use)
DVI-I for PC
presentations Power
The mirror
to help you
locate the
connectors
is here.
