8.1 Transporting By Crane
Cables should have sufficient ratings and be of the same length. Make sure the suspension cables are
hooked at eyebolts. See Figure 8.1. Keep the angle less than 60° between cables.
refer to Chapter 7 - weight and Dimension for UpS cabinet weight.
Keep UpS leveled when lifting. Do noT swing or tilt the UpS. Minimize the impact when lowering the
UPS to the floor. Figure 8.2 and 8.3 indicate unacceptable lifting.
Figure 8.4 and 8.5 show examples of acceptable and unacceptable operations.

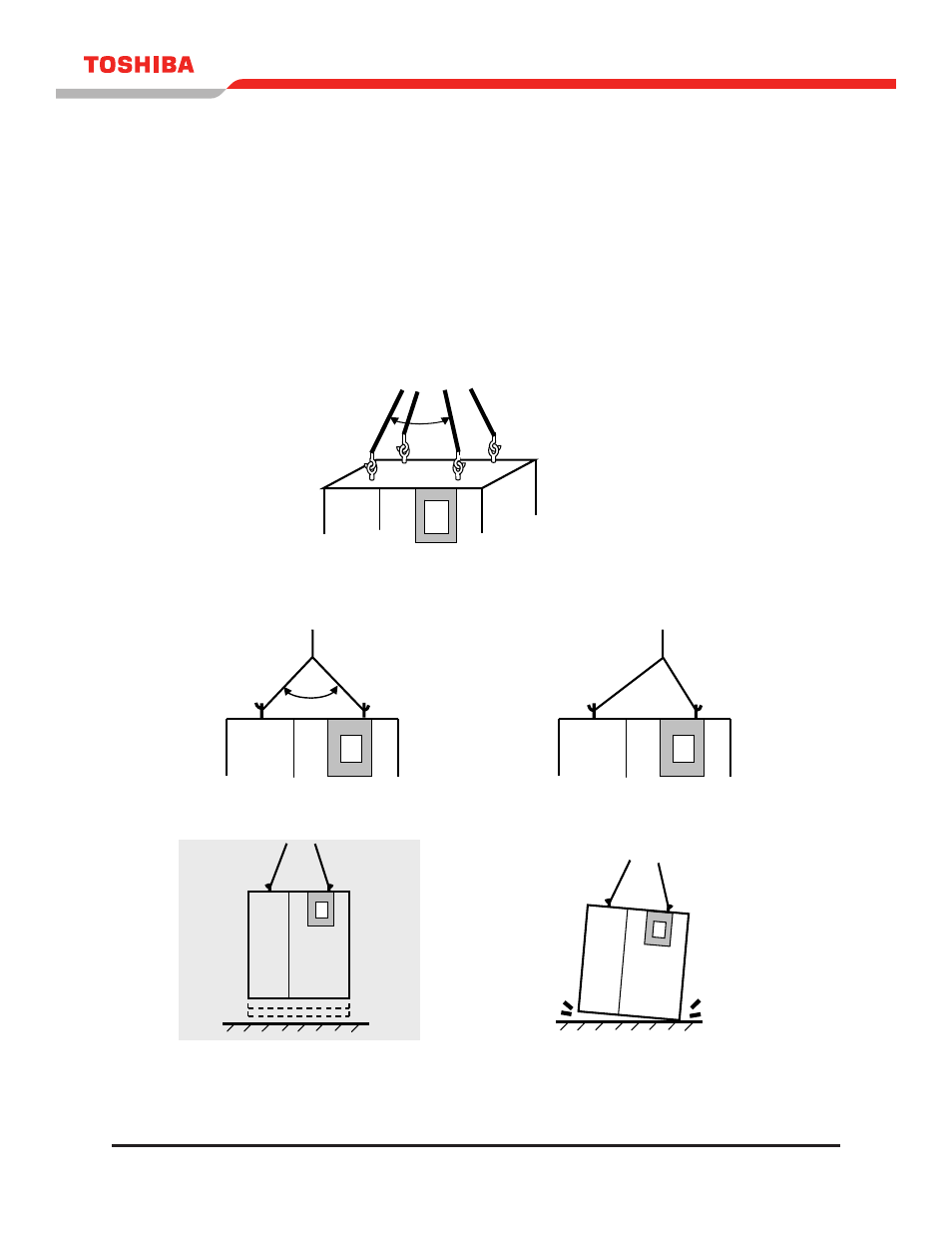

FIGURE 8.1 - CABLES AND EYEBOLTS TO LIFT THE UPS
FIGURE 8.2 - ANGLE MORE THAN 60° FIGURE 8.3 - UNEVEN CABLES
FIGURE 8.4 - ACCEPTABLE OPERATION FIGURE 8.5 - UNACCEPTABLE OPERATION
G8000 Series Installation Manual 21
8.1 Transporting By Crane
Cables should have sufficient ratings and be of the same length. Make sure the suspension cables are
hooked at eyebolts. See Figure 8.1. Keep the angle less than 60° between cables.
refer to Chapter 7 - Weight and Dimension for UpS cabinet weight.
Keep UpS leveled when lifting. Do noT swing or tilt the UpS. Minimize the impact when lowering the
UpS to the floor. Figure 8.2 and 8.3 indicate unacceptable lifting.
Figure 8.4 and 8.5 show examples of acceptable and unacceptable operations.
FIGURE 8.1 - CABLES AND EYEBOLTS TO LIFT THE UPS
FIGURE 8.2 - ANGLE MORE THAN 60q FIGURE 8.3 - UNEVEN CABLES
FIGURE 8.4 - ACCEPTABLE OPERATION FIGURE 8.5 - UNACCEPTABLE OPERATION
Less than 60°
More than 60° Uneven Cables
