Roland VS-1680 - Manual (Page 97)

MTD (Multi Tap Delay) (p. 111)
Time Ch1–Ch10 0–1200 ms
Level Ch1–Ch10 0–100
Pan Ch1–Ch10 L63–R63
FBTim 0–1200 ms
FBLvl -100–100
EfxLvl -100–100
DirLvl -100–100
EQ (Equalizer) (p. 110)
Sw Off, On
Low Gain -12–12 dB
Low Freq 20–2000 Hz
Low Q 0.3–10.0
Low Type Shlv, Peak
Mid Gain -12–12 dB
Mid Freq 200–8000 Hz
Mid Q 0.3–10.0
High Gain -12–12 dB
High Freq 1.4–20.0 kHz
High Q 0.3–10.0
Hi Type Shlv, Peak
Level 0–100
VS8F-2 Algorithm List
97
MultiTapDly (Multi Tap Delay)
This algorithm is a delay in which ten delays can be set independently. A three-band
equalizer is provided on the output.

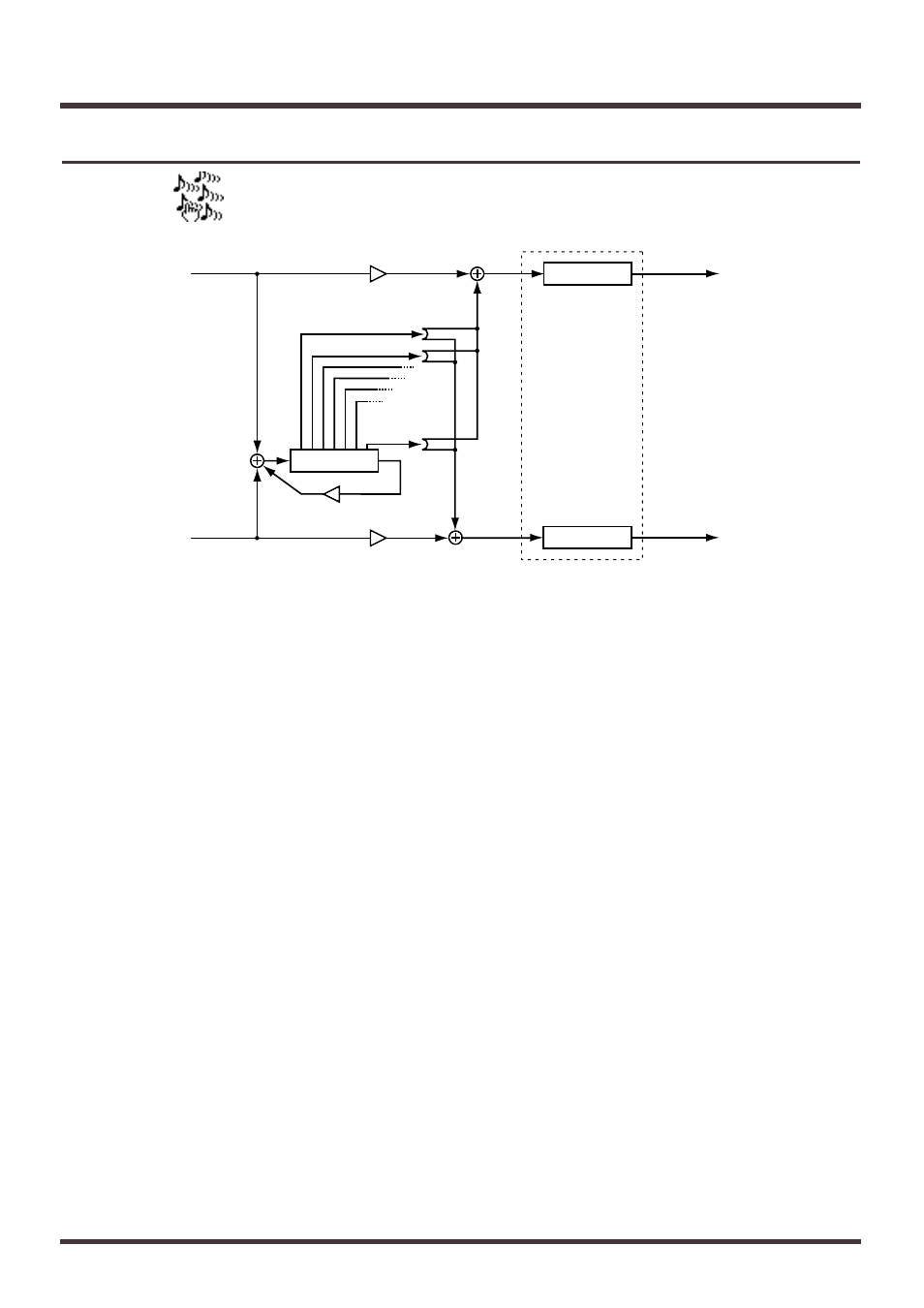

fig.ap(efx)-39(mtd_blk.eps)
Input R Output R
Multi Tap Delay
Equalizer
Equalizer
Pan 1
Pan 2
Pan 10
Feedback
Diret Level
Diret Level
Input L Output L
