Lnk (Link) (p. 121)
Link Off, On
CnvA/CnvB (Mic Converter) (p. 125)
Sw Off, On
Input DR-20, Sml.Dy, Hed.Dy, Min.Cn, Flat
Out Sml.Dy, Voc.Dy, Lrg.Dy, Sml.Cn, Lrg.Cn,
Vnt.Cn, Flat
Phase Nor, Inv
BCutA/BCutB (Bass Cut Filter) (p. 126)
Sw Off, On
Freq Thru, 20–2000 Hz
DstnA/DstnB (Distance) (p. 126)
Sw Off, On
Prox.Fx -12–+12
Time 0–3000 cm
LmtA/LmtB (Limiter) (p. 117)
Sw Off, On
Thresh -60–0 dB
Attack 0–100
Release 0–100
Detect HPF Freq Thru, 20–2000 Hz
Level -60–24 dB
VS8F-2 Algorithm List
107
MicSimulator (Mic Simulator)
This modifies sound that was recorded by a conventional dynamic mic, lapel mic or direct
line, causing it to sound as though it had been recorded by an expensive condenser mic or
a special studio mic. The mic simulator can add effects of proximity or distance.

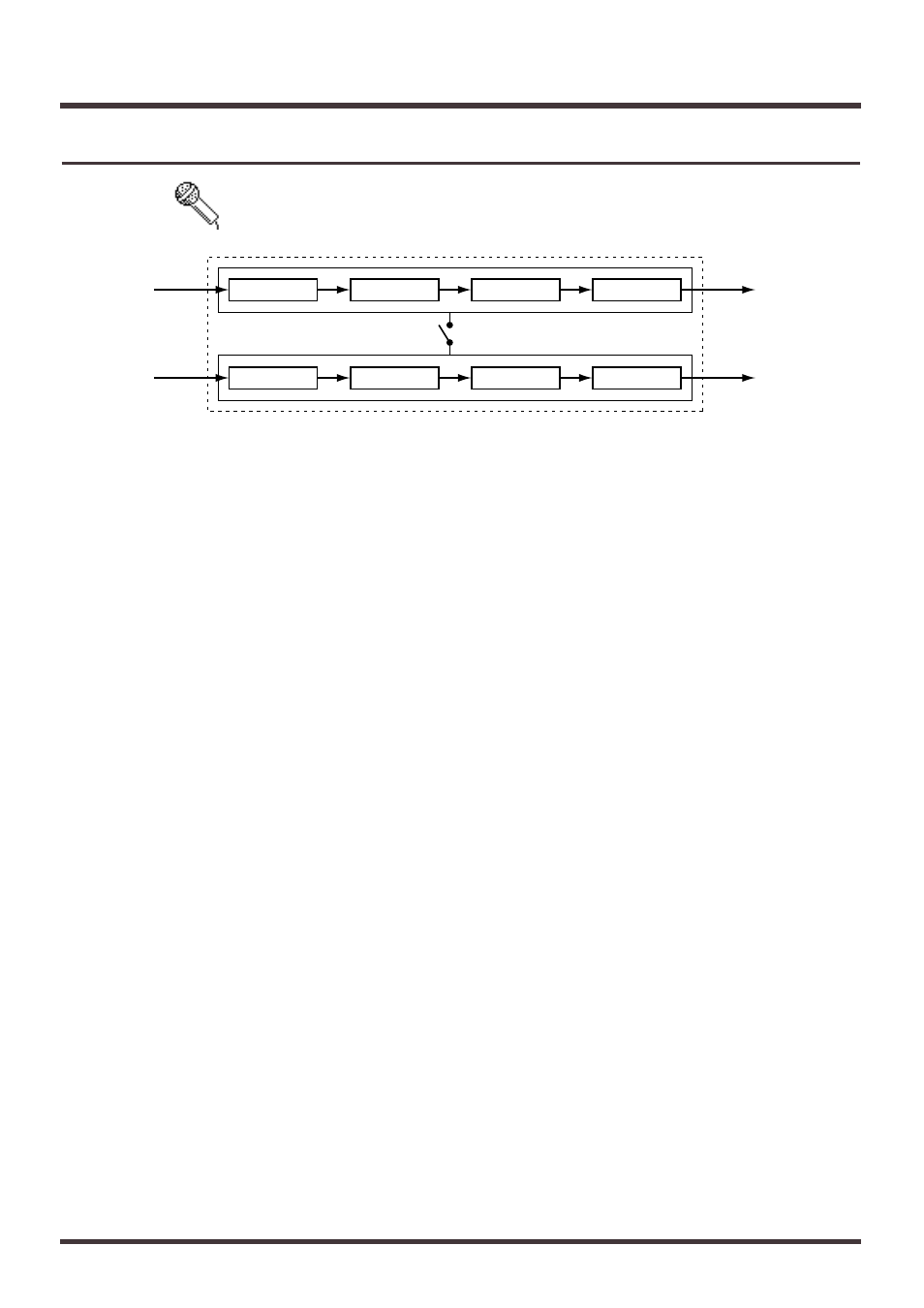

fig.ap(efx)-61(mic_blk.eps)
Mic Converter Bass Cut Filter Distance Limiter
Mic Converter Bass Cut Filter Distance Limiter
Link
Input A
Input B
Output A
Output B
