Roland VS-1680 - Manual (Page 83)

Delay (p. 111)
Sw Off, On
Time 0–500 ms
Shift L500–0–R500 ms
Lch FeedBackLvl -100–100
Rch FeedBackLvl -100–100
Lch CrossFeedbackLvl -100–100
Rch CrossFeedback Lvl -100–100
EfxLvl
-100–100
DirLvl -100–100
Chorus (p. 112)
Sw Off, On
Rate 0.1–10.0 Hz
Depth 0–100
PreDLY 0–50 ms
Lch FeedbackLvl -100–100
Rch FeedbackLvl -100–100
Lch CrossFeedbackLvl -100–100
Rch CrossFeedbackLvl -100–100
EfxLvl -100–100
DirLvl -100–100
EQ (Equalizer) (p. 110)
Sw Off, On
Low Gain -12–12 dB
Low Freq 20–2000 Hz
Low Q 0.3–10.0
Low Type Shlv, Peak
Mid Gain -12–12 dB
Mid Freq 200–8000 Hz
Mid Q 0.3–10.0
High Gain -12–12 dB
High Freq 1.4–20.0 kHz
High Q 0.3–10.0
Hi Type Shlv, Peak
Level 0–100
VS8F-2 Algorithm List
83
StDly-Chorus (Stereo Delay Chorus)
This algorithm connects a stereo delay and a stereo chorus in series. A three-band equaliz-
er is provided on the output.

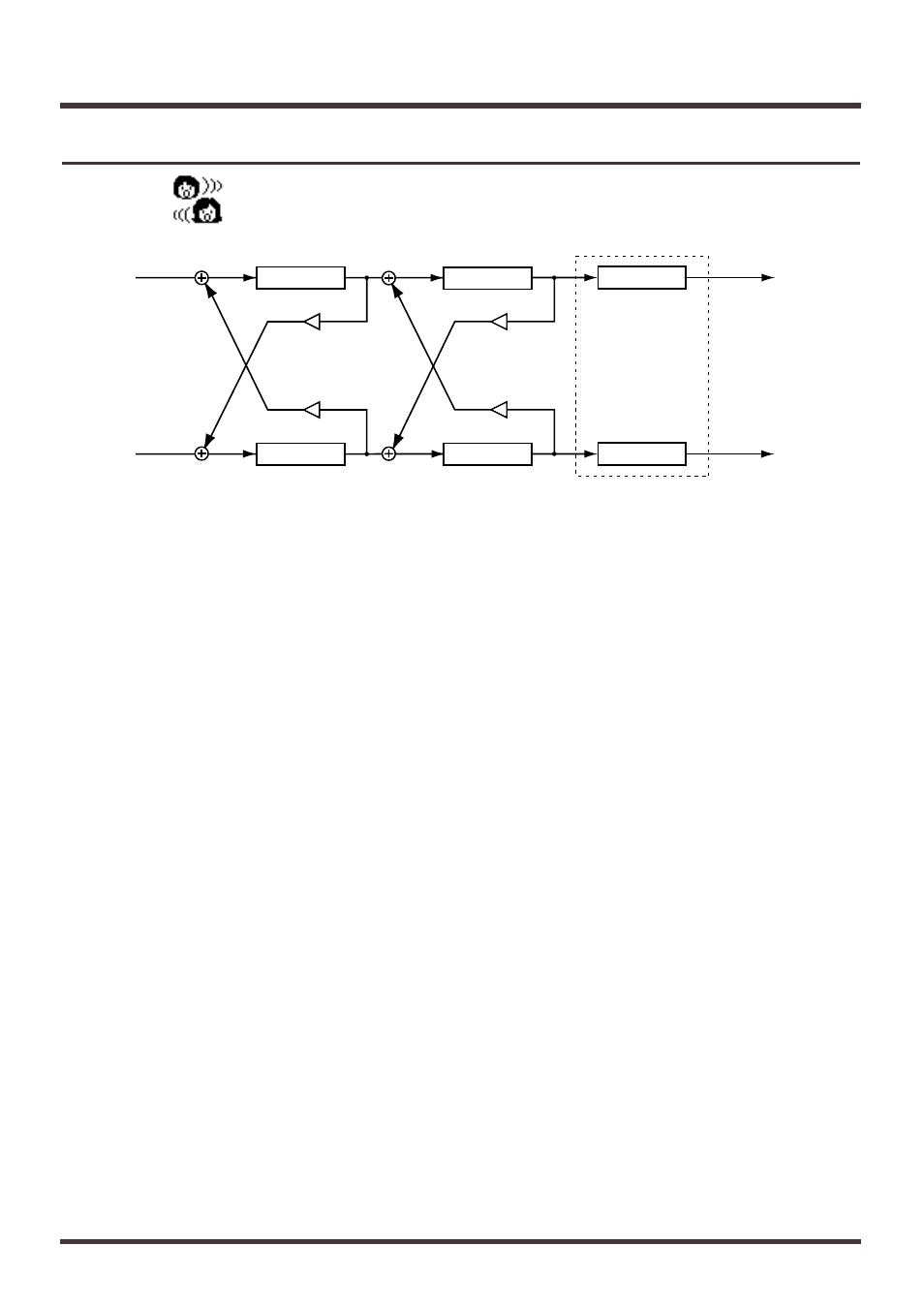

fig.ap(efx)-07(sddly_blk.eps)
Chorus L
Output L
Output R
Equalizer
Equalizer Chorus R
Delay L
Delay R
Cross Feedback
Cross Feedback
Cross Feedback
Cross Feedback
Input R
Input L
