Delay (p. 111)
Sw Off, On
Time 0–1200 ms
Shift L1200–0–R1200 ms
Lch FeedbackLvl -100–100
Rch FeedbackLvl -100–100
LF Damp Gain
-36–0 dB
LF Damp Freq 50–4000 Hz
HF Damp Gain -36–0 dB
HF Damp Freq 1.0–20.0 kHz
Lch EfxLvl -100–100
Rch EfxLvl -100–100
DirLvl -100–100
EQ (Equalizer) (p. 110)
Sw Off, On
Low Gain -12–12 dB
Low Freq 20–2000 Hz
Low Q 0.3–10.0
Low Type Shlv, Peak
Mid Gain -12–12 dB
Mid Freq 200–8000 Hz
Mid Q 0.3–10.0
High Gain -12–12 dB
High Freq 1.4–20.0 kHz
High Q 0.3–10.0
Hi Type Shlv, Peak
Level 0–100
VS8F-2 Algorithm List
82
Delay

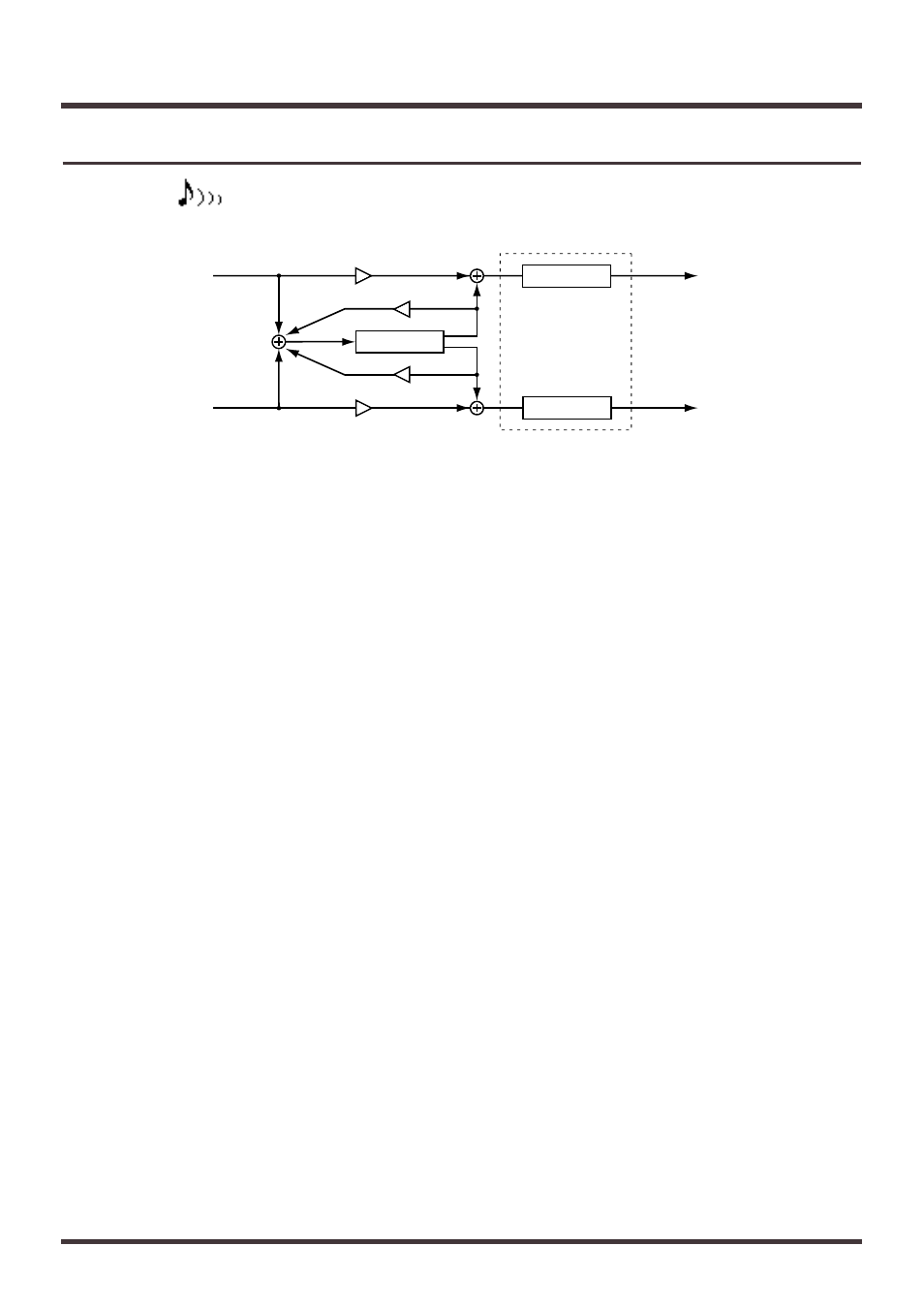

This algorithm is a mono-input stereo-output delay. A three-band equalizer is provided
on the output.
fig.ap(efx)-05(dly_blk.eps)
Input L
Feedback
Input R
Delay
Output L
Output R
Direct Level
Direct Level
Equalizer
Equalizer
Feedback
