CmpA/CmpB (Compressor/Limiter)
(p. 117)
Sw Off, On
Thresh -60–0 dB
Ratio 1.5:1, 2:1, 4:1, 100:1
Attack 0–100
Release 0–100
Level -60–12 dB
Detect A, B, Link
NS (Noise Suppressor) (p. 115)
Sw Off, On
Thresh 0–100
Release 0–100
Detect A, B, Link
VS8F-2 Algorithm List
95
DualCom/Lim (Dual Compressor/Limiter)
Two independent processors (A, B) for compressor/limiter and noise suppressor are con-
nected in series in this algorithm.
To use INPUT A for the input, Effect Pan for the channel should be set to “L63”
(send/return) or select “InsL” (insert). To use INPUT B for the input, Effect Pan for the
channel should be set to “R63” (send/return) or select “InsR” (insert).

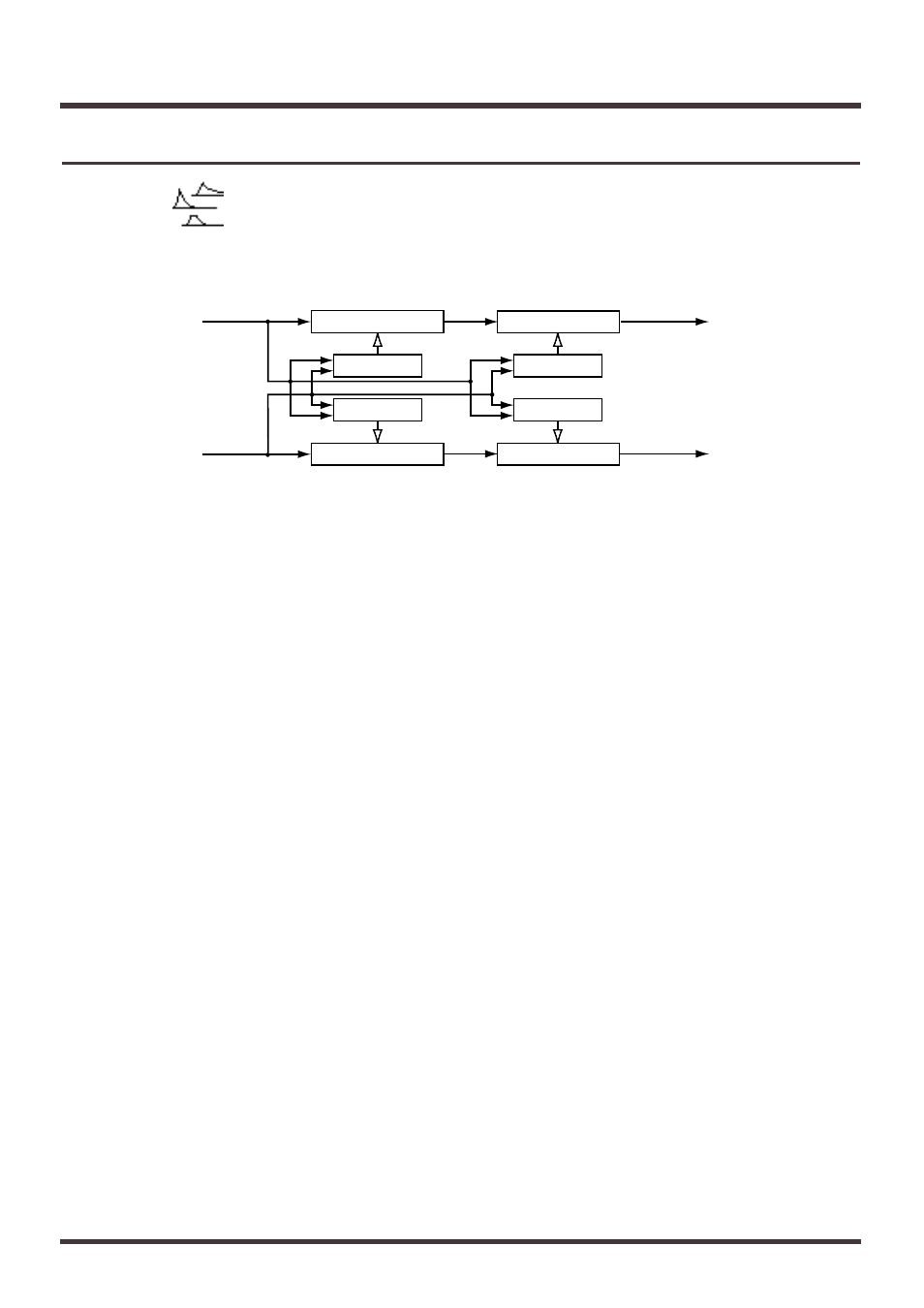

fig.ap(efx)-35(cmp_blk.eps)
Input A
Input B
Compressor/Limiter A
Output L
Output R
Noise Suppressor A
Noise Suppressor B Compressor/Limiter B
Detector in
Detector in
Detector in
Detector in
