Voc (Vocoder2) (p. 124)
Envelope Sharp, Soft, Long
PanMode Mono, Stereo, L
→R, R→L
Hold Off, MIDI
MicSens 0–100
SynInLev 0–100
Character Ch1–19 0–100
Mic 0–100
MicHPF Thru, 1.0–20.0 kHz
MicPan L63–R63
NSThresh 0–100
Cho (Chorus) (p. 112)
Sw Off, On
Rate 0.1–10.0 Hz
Depth 0–100
PreDLY 0–50.0 msec
MixBal 0–100
VS8F-2 Algorithm List
106
Vocoder 2 (19)
This is a 19 band vocoder. A clear sound that was not possible with conventional
vocoders can be obtained.
To use the vocoder, Effect Pan for the instrument channel should be set to “L63”
(send/return) or select “insL” (insert) so that input an instrumental sound into the left
channel. Similarly, Effect Pan for the vocal channel should be set to “R63” (send/return)
or select “insR” (insert) so that input a vocal sound into the right channel.
* Vocoder 2 (19) can be used in EFX1 or EFX3. Also, EFX2 or EFX4 will not be available for use.

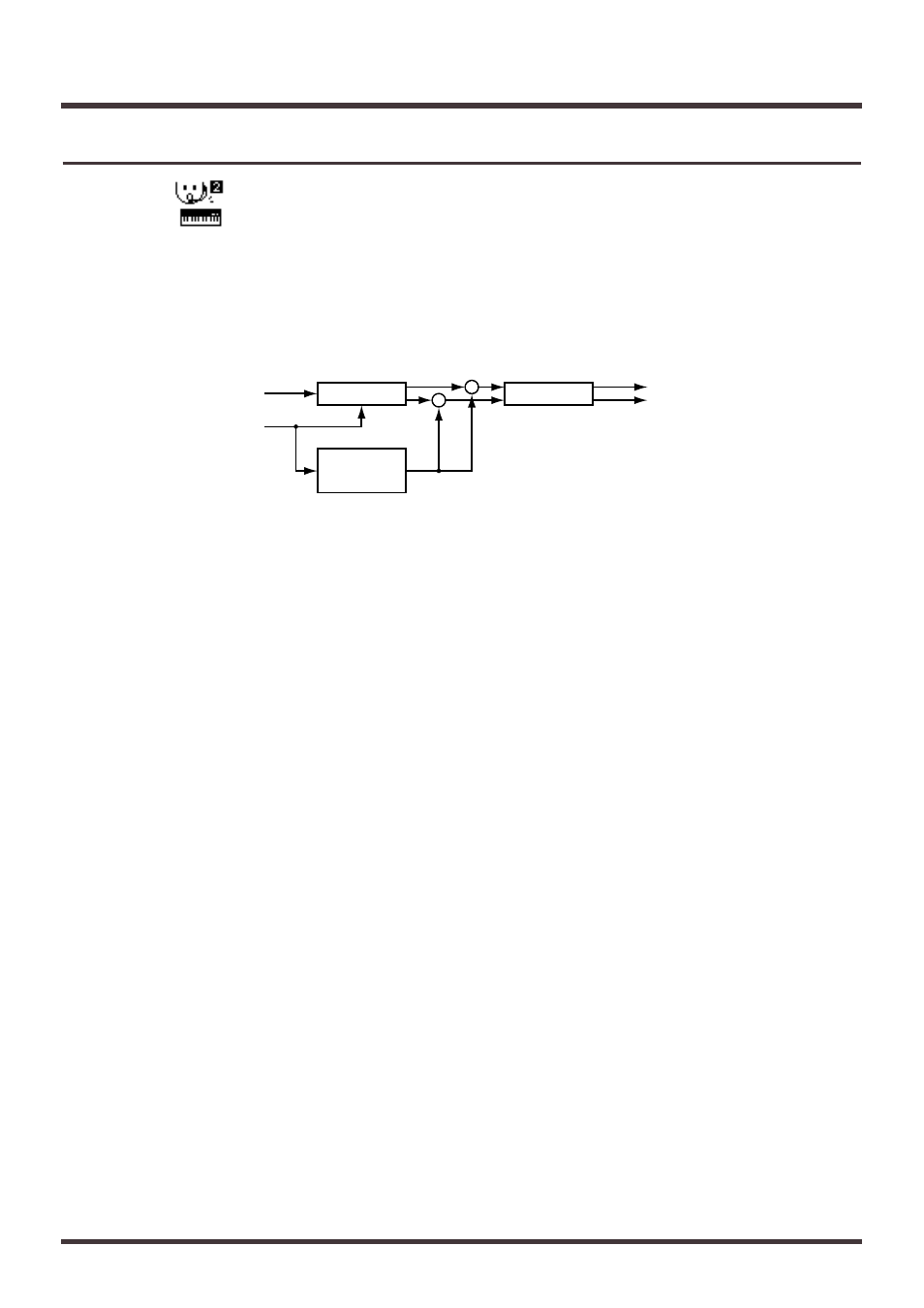

fig.ap(efx)-59(voc2_blk.eps)
Vocoder Stereo Chorus
Input L
(Instrument)
Input R(Mic)
Output L
Output R
Noise
Suppressor
+
+
