Voc (Vocoder) (p. 113)
Char 1 0–100
Char 2 0–100
Char 3 0–100
Char 4 0–100
Char 5 0–100
Char 6 0–100
Char 7 0–100
Char 8 0–100
Char 9 0–100
Char 10 0–100
Cho (Chorus) (p. 112)
Sw Off, On
Rate 0.1–10.0 Hz
Depth 0–100
PreDLY 0–50 ms
FBLvl -100–100
EfxLvl -100–100
DirLvl -100–100
VS8F-2 Algorithm List
85

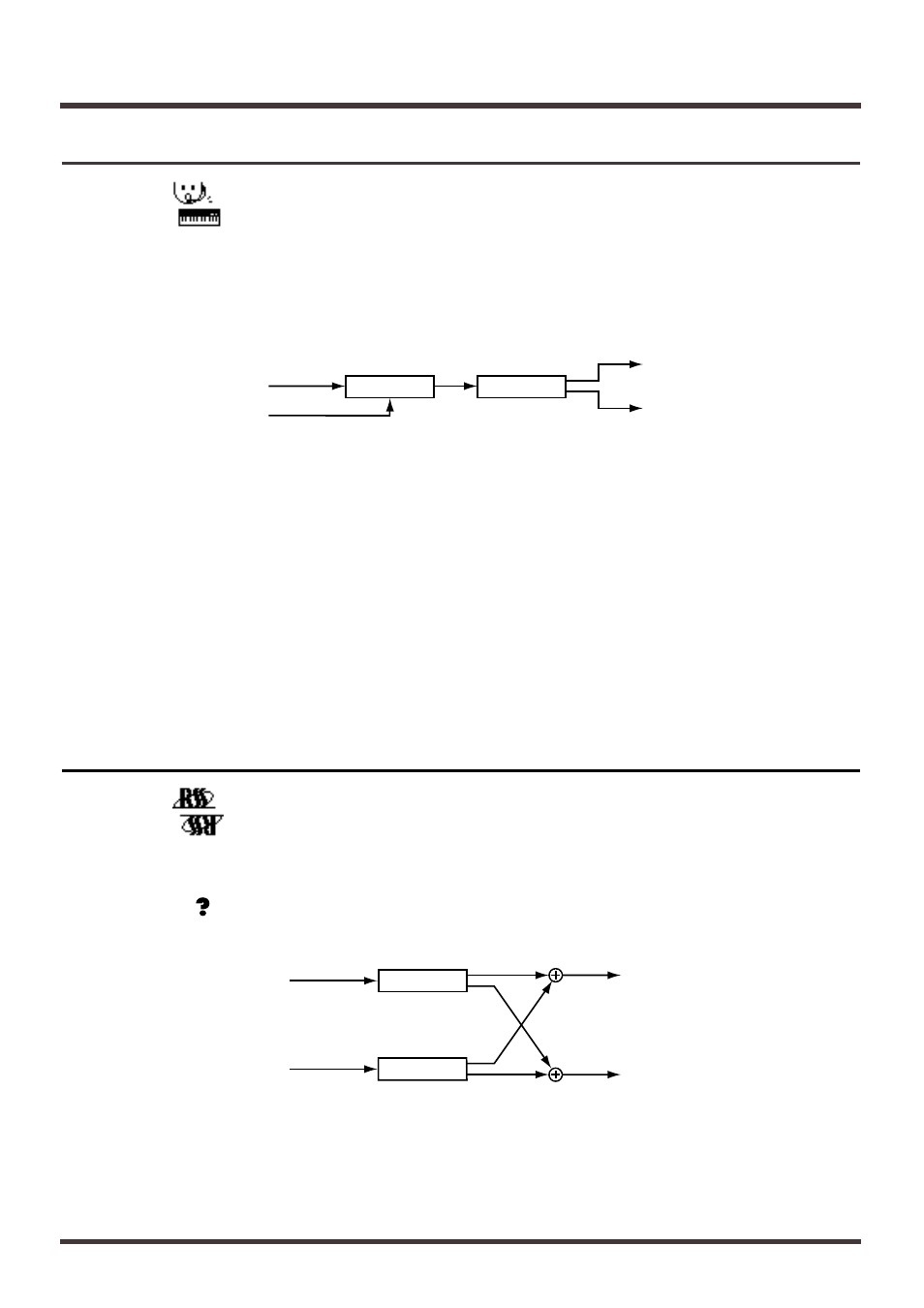

Vocoder
This algorithm is a ten-band vocoder. The instrumental sound will be split into ten fre-
quency bands, and processed according to the frequency characteristics of the audio sig-
nal.
To use the vocoder, Effect Pan for the instrument channel should be set to “L63”
(send/return) or select “insL” (insert) so that input an instrumental sound into the left
channel. Similarly, Effect Pan for the vocal channel should be set to “R63” (send/return)
or select “insR” (insert) so that input a vocal sound into the right channel.
fig.ap(efx)-11(voc_blk.eps)
Input L
(Instrument)
Input R (Mic)
Output L
Output R
Chorus Vocoder
2ch RSS (2-channel RSS)
This algorithm lets you specify the spatial placement of each of the input channels. When
using this algorithm, do not allow the direct sound to be output.
To use INPUT A for the input, Effect Pan for the channel should be set to “L63”
(send/return) or select “InsL” (insert). To use INPUT B for the input, Effect Pan for the
channel should be set to “R63” (send/return) or select “InsR” (insert).
RSS (p. 64)
fig.ap(efx)-13(2rss_blk.eps)
Input A
Input B
Output L
Output R
RSS
RSS
RSS A/RSS B (p. 113)
Azimuth -180–180
°
Elevation -90–90
°
