24

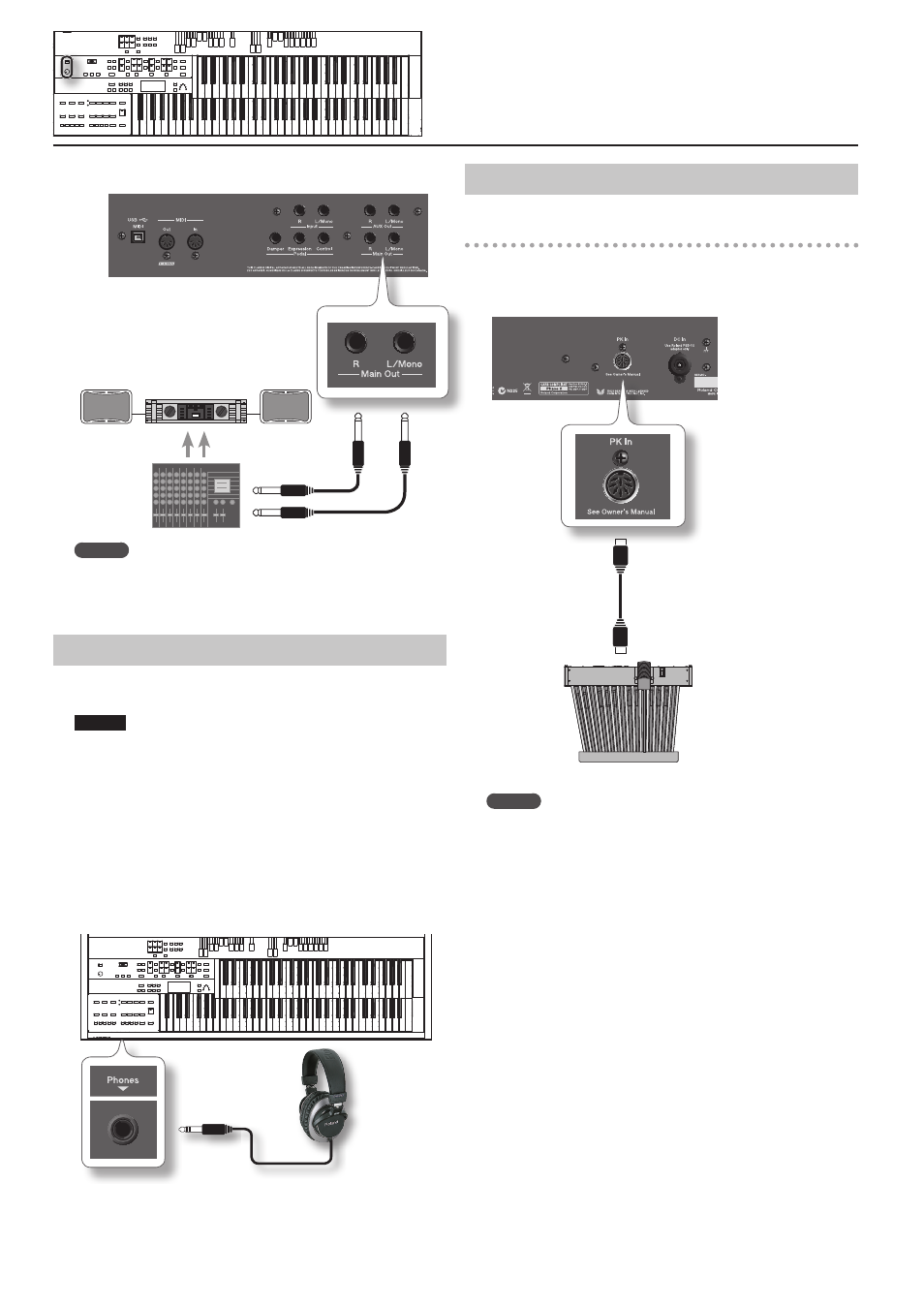

Live performance
Mixer, etc.
Power amp/speaker
Main Out jack
MEMO
If you connect speakers or an external reverb unit to the AUX
Out jacks, you’ll be able to much more readily express the
expansiveness of the stereo sound field and add more of a sense of
presence to your music (p. 112).
Using Headphones
The ATELIER features Phones jacks. These allow you to play without
having to worry about bothering others around you, even at night.
NOTE!
• Accepts connection of stereo headphones.
• To prevent damage to the cord, handle the headphones only by the
headset or the plug.
• Headphones may be damaged if the volume is too high when they
are plugged in. Lower the volume on the ATELIER before plugging
in headphones.
• To prevent possible auditory damage, loss of hearing, or damage
to the headphones, the headphones should not be used at an
excessively high volume. Use the headphones at a moderate
volume level.
1. Connect your headphones to the Phones jack underneath
the left side of the keyboard.
2. Adjust the headphones volume with the [Master Volume] knob.
Connecting Pedals
Connecting a pedalboard
You can connect the ATELIER to pedalboard (PK series; sold separately).
* Only pedalboard units that have a PK OUT connector can be
connected.
PK In connector
PK series
MEMO
The AC adaptor supplied with the pedalboard is not used. The
pedalboard will be turned on/off by the [Power] switch of the
ATELIER, regardless of the position of the pedalboard’s own power
switch.
1. Make sure that the [Power] switch the ATELIER and the
pedalboard (PK series) are both switched off.
2. Using the dedicated PK cable that is included with the
ATELIER, connect the ATELIER’s PK In connector to the
pedalboard’s PK OUT connector.
3. Switch on the ATELIER’s power.
4. Make sure that the indicator on the pedalboard’s rear panel
is lit.
Try playing the pedalboard; if you hear the sound of the pedal part
from the ATELIER, the connection is complete.
* This unit is equipped with a protection circuit. A brief interval (a
few seconds) after power up is required before the unit will operate
normally.
* For details on settings for the pedalboard, refer to the owner’s
manual for your pedalboard.
