Panel Descriptions

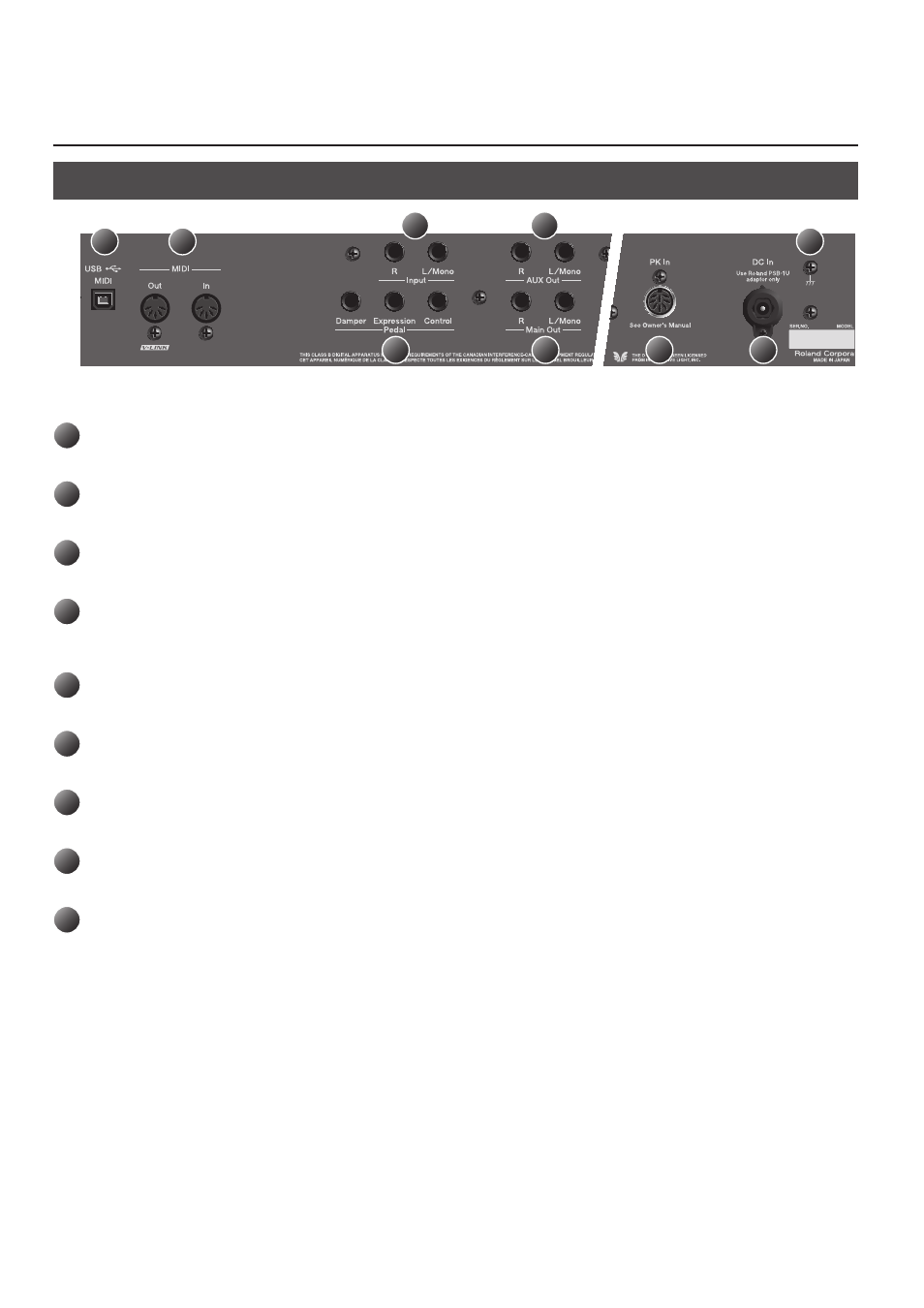

Rear Panel
2
3
1
5
4
6 7 8
9
1 USB (MIDI) connector
Connect your computer for transferring performance data (p. 113).
2 MIDI connectors
Connect an external MIDI device here to transfer performance data (p. 113).
3 Input jacks
You can connect an audio source here (p. 111).
4 AUX Out jacks
By connecting speakers or an external reverb unit here, you’ll be able to much more readily express the expansiveness of the stereo sound field and
add more of a sense of presence to your music (p. 112).
5 Pedal jacks
Connect an expression pedal (EV-7; sold separately) or pedal switch (DP series; sold separately) to these jacks (p. 26).
6 Main Out jacks
To listen to the ATELIER’s sound through speakers, connect your audio system or speakers to these jacks.
7 PK In connector
Connect the pedalboard (PK series; sold separately) to this socket (p. 24).
8 DC In jack
Connect the included AC adaptor here (p. 21).
9 Grounding terminal
Depending on the circumstances of a particular setup, you may experience a discomforting sensation, or perceive that the surface feels gritty to
the touch when you touch this device, or the metal portions of other objects. This is due to an infinitesimal electrical charge, which is absolutely
harmless.
However, if you are concerned about this, connect the ground terminal (see figure) with an external ground. When the unit is grounded, a slight
hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service
Center, or an authorized Roland distributor, as listed on the “Information” page.
Unsuitable places for connection
• Water pipes (may result in shock or electrocution)
• Gas pipes (may result in fire or explosion)
• Telephone-line ground or lightning rod (may be dangerous in the event of lightning)
