❍ OUT/THRU (MIDI OUT/THRU Select) OUT/THRU
The MIDI OUT/THRU connector on the rear panel of this unit can function either as a
MIDI OUT or a MIDI THRU. When the OUT/THRU sellect is set to OUT the connector
will function as MIDI OUT, and when set to THRU it will function as MIDI THRU.
If THRU is selected, data received at MIDI IN A will be retransmitted from the MIDI
OUT/THRU connector. Data received at MIDI IN B will never be “thru-ed”, regardless of
the THRU setting, and regardless of the setting for In Mode.
If OUT is selected, exclusive data or data received at the computer connector can be
transmitted from the MIDI OUT/THRU connector. (p.107, 123)

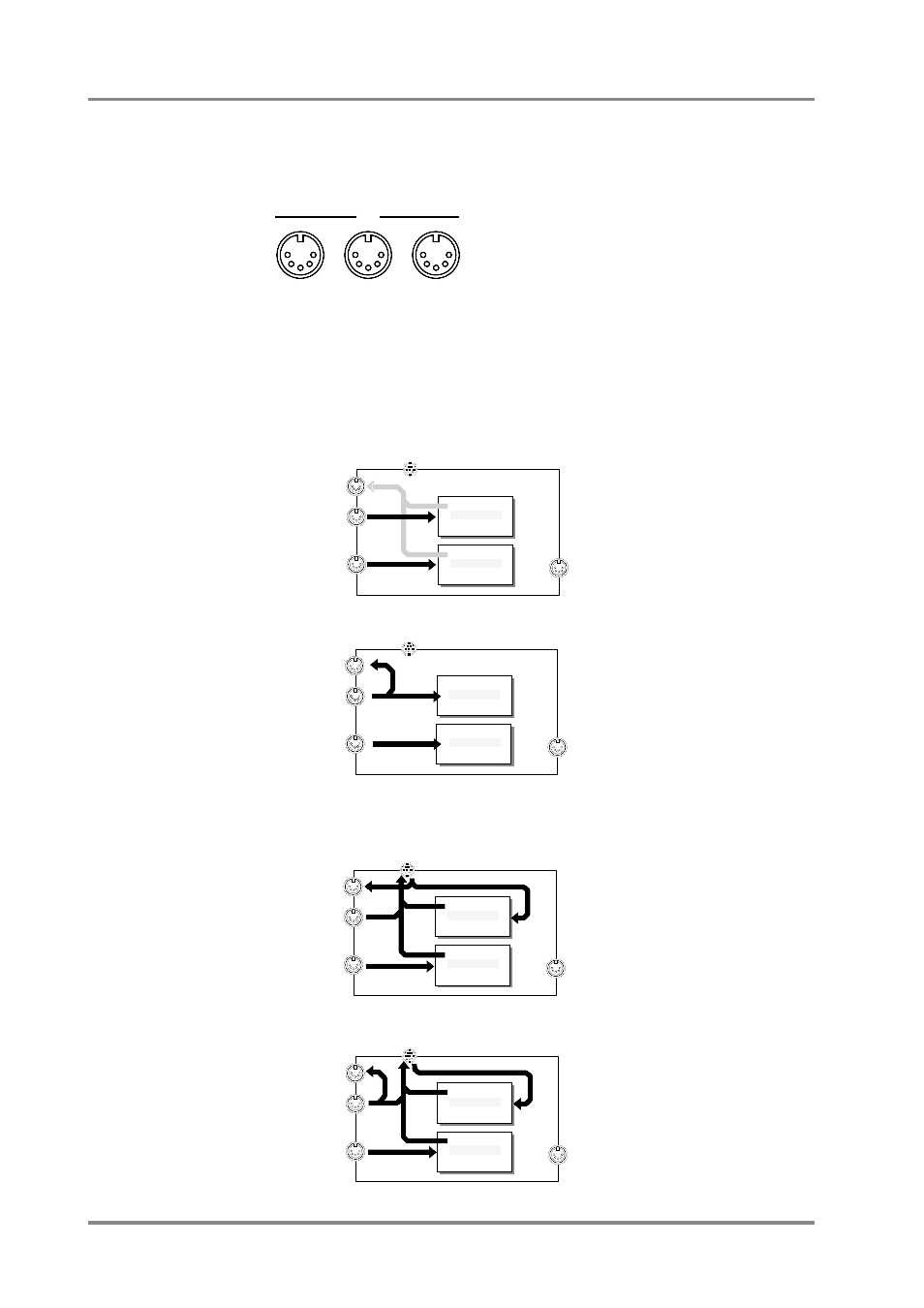

OUT/THRU IN A IN B
MIDI
MIDI IN B
(Front) MIDI IN B
(Rear)
MIDI IN A
COMPUTER MIDI
OUT/THRU
Part group A
GM/GS
Sound generator
Part A1 - A16
Part group B
GM/GS
Sound generator
Part B1 - B16
MIDI IN B
(Front) MIDI IN B
(Rear)
MIDI IN A
COMPUTER MIDI
OUT/THRU
Part group A
GM/GS
Sound generator
Part A1 - A16
Part group B
GM/GS
Sound generator
Part B1 - B16
MIDI IN B
(Front) MIDI IN B
(Rear)
MIDI IN A
COMPUTER MIDI
OUT/THRU
Part group A
GM/GS
Sound generator
Part A1 - A16
Part group B
GM/GS
Sound generator
Part B1 - B16
MIDI IN B
(Front) MIDI IN B
(Rear)
MIDI IN A
COMPUTER MIDI
OUT/THRU
Part group A
GM/GS
Sound generator
Part A1 - A16
Part group B
GM/GS
Sound generator
Part B1 - B16
When the COMPUTER switch is set to MIDI
MIDI OUT/THRU Select : OUT
MIDI OUT/THRU Select : THRU
When the COMPUTER switch is set to PC-1, PC-2 or Mac
MIDI OUT/THRU Select : OUT
MIDI OUT/THRU Select : THRU
Chapter 7. MIDI and the unit 136
