Placement guidelines for the WLAN IP Telephony Manager 2245 71

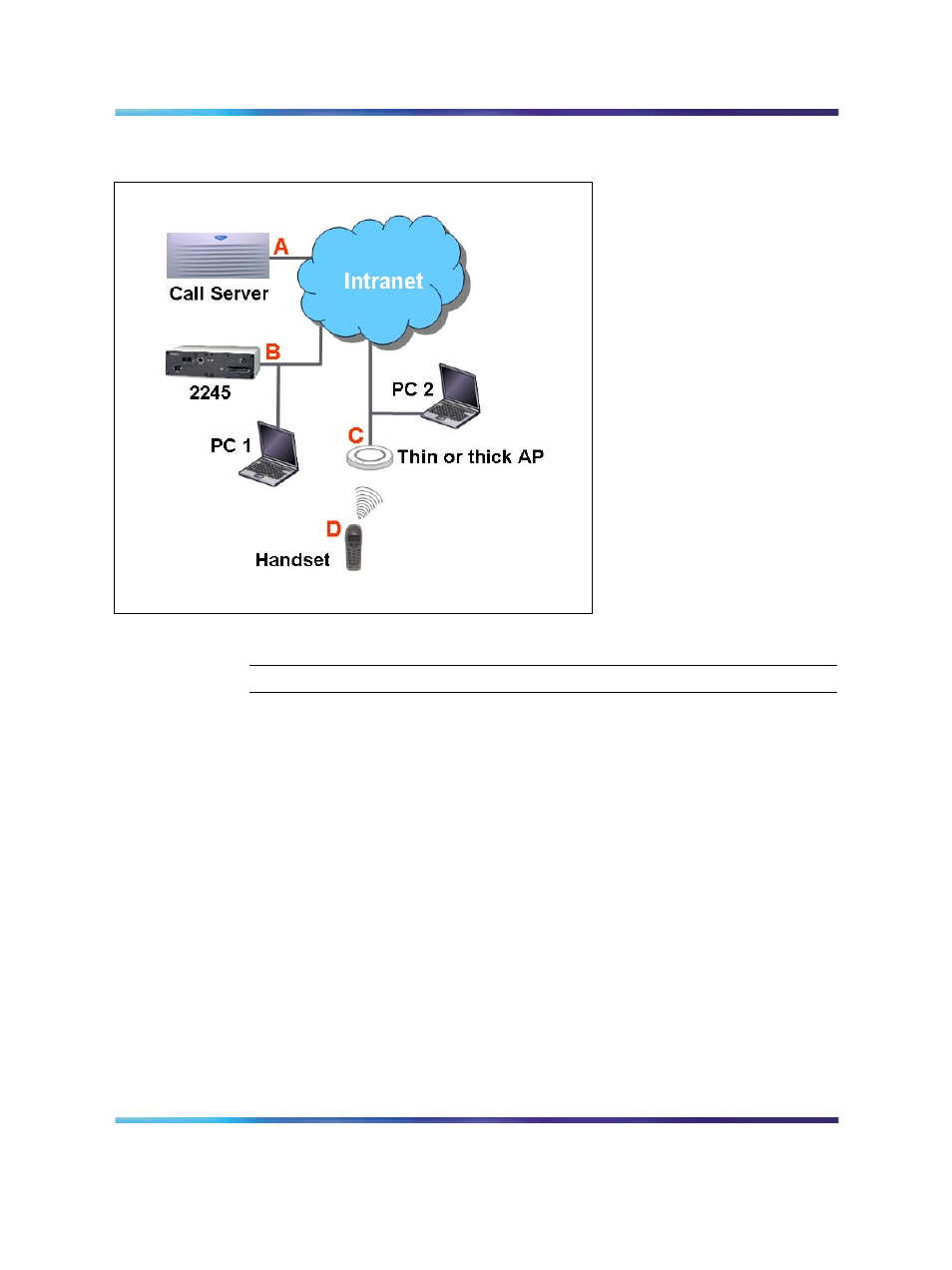

Figure 15
Measuring jitter, delay and packet loss
Procedure 1
Measuring jitter, delay, and packet loss
Step Action
1 Connect PC 2 to LAN segment C.
2 Obtain the IP address of PC 2.
3 Start Netmeeting.
4 Connect PC 1 to the LAN on segment B.
5 Ping PC 2 and note the length of the round-trip delay.
6 Start Ethernet and capture packets on the correct interface.
7 Configure a filter for RTP packets.
8 Start a Netmeeting session on PC 2.
9 End the Netmeeting session and stop the packet capture.
10 Save the file and analyze the trace to make sure that the jitter, delay,
and packet loss are within specifications.
11 Move PC 2 to segment A and repeat Step 1 to Step 10 .
