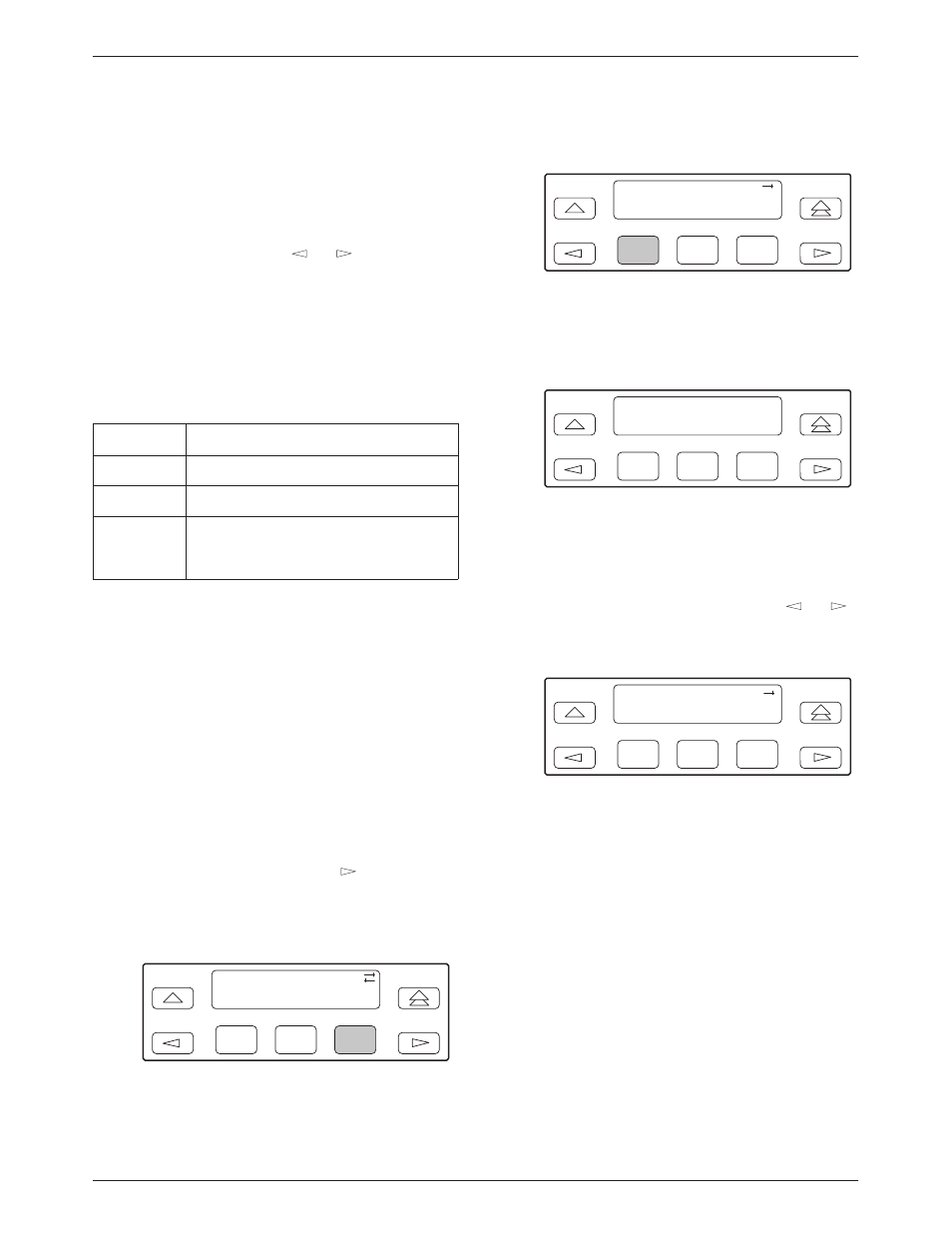

Displaying DS0 Channel Assignments
Use the Display command (in the Channel
Configuration branch) to view how the DS0 channels are
currently allocated.
Line 1 of the display shows the 24 channels of the
selected interface. Pressing the or key scrolls the
channels onto the screen in groups of three. Line 2
displays what is allocated to the DS0 channel listed in
Line 1. Symbols used in the display are shown in
Table 3-4 .
Table 3-4
Display Channel Symbols
Symbol Meaning
– The DS0 channel is not allocated.
Prt1 The DS0 channel is allocated to Port 1.
N n The DS0 channel is allocated to the
network interface DS0 channel
n, where
n can be any number from 1 through 24.
"
Procedure
To display the DS0 channel allocation:
1. From the top-level menu screen, select Cnfig.
2. Select the configuration option set to be copied
into the Edit area by using the appropriate
Function key. Use the scroll keys, if necessary.
3. Select Edit.
4. From the Edit screen, press the key until the
Chan selection appears on the screen.
5. Select Chan.
F1
Edit:
Port
NET Chan
F2 F3
6. From the Channel Config screen, select Dsply.
F1
Channel Config:
Dsply
Clear Prt1
F2 F3
7. From the Display Chan screen, select NET to
display the channels allocated to the network
interface.
F1
Display Chan:
NET
Ports
F2 F3
8. If you selected NET the channels allocated to the
network interface are displayed. Line 1 displays
the 24 channels for the network interface, while
Line 2 displays what is allocated to the DS0
channel shown in Line 1. Pressing the
or
key scrolls the channels onto the screen in groups
of three.
F1
N1 N2 N3
Prt1 Prt1 Prt1
F2 F3
