Connecting the Sensor Cable
5-6
Monitoring SpO
2
Connecting the Sensor Cable
To connect a sensor cable:
1. Hold the connector with the flat side up so that the part number is visible.
2. Insert the connector into the receptacle and push until the blue portion of
the connector is no longer visible.

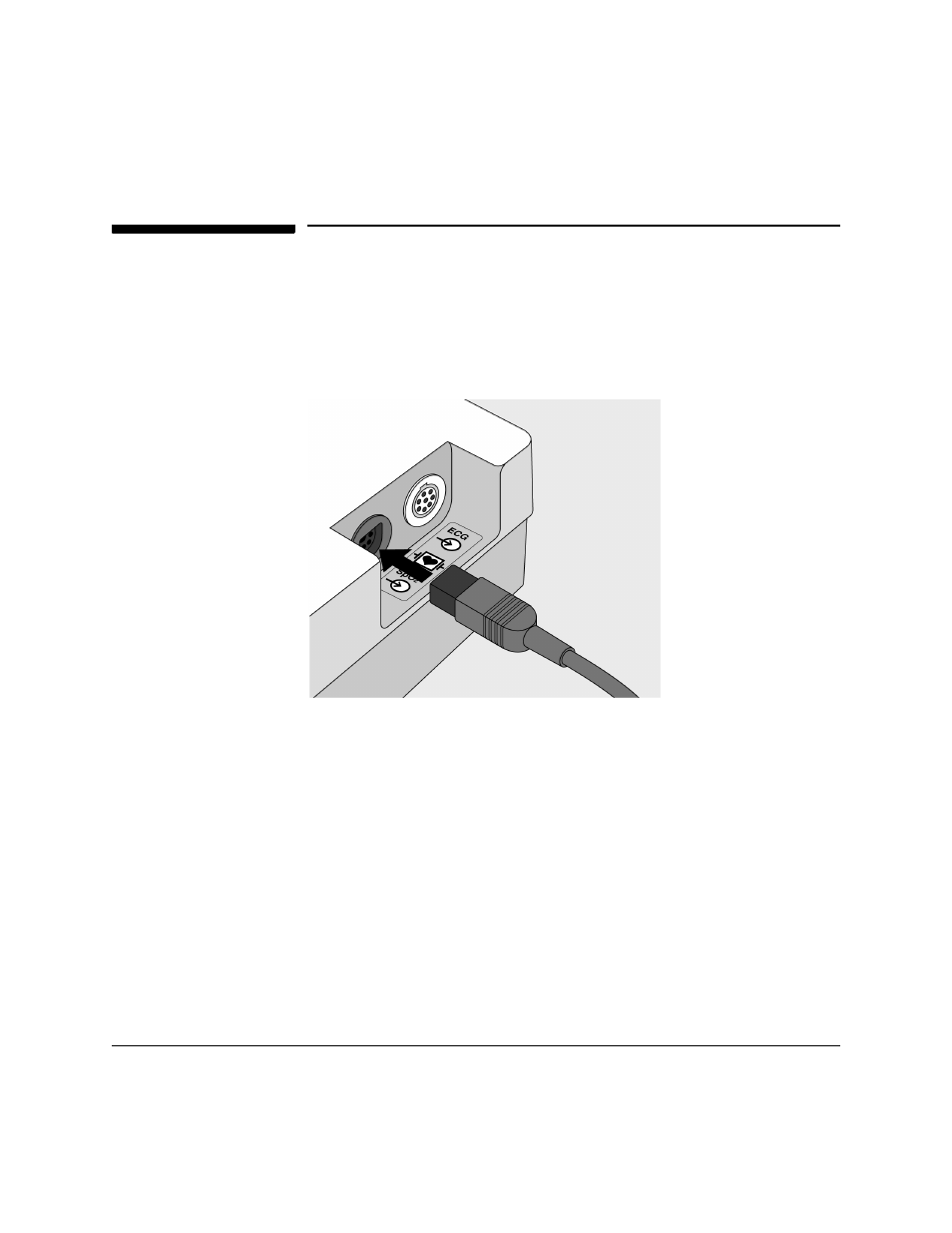

Figure 5-2 Connecting the Sensor Cable
