Removing & Replacing the Carrying Case
M3500B HeartStart XLT Defibrillator/Monitor
11-15
11
Removing & Replacing the Carrying Case
To remove the carrying case from the HeartStart XLT, follow steps 1 through
7 in Figure 11-4.
After loosening the screws (step 6), lay the unit flat and lift the defib up off
the metal mounting plates to disengage it from the two metal pins at the rear
of the case. Then slide the defib out of the case as shown in step 7.

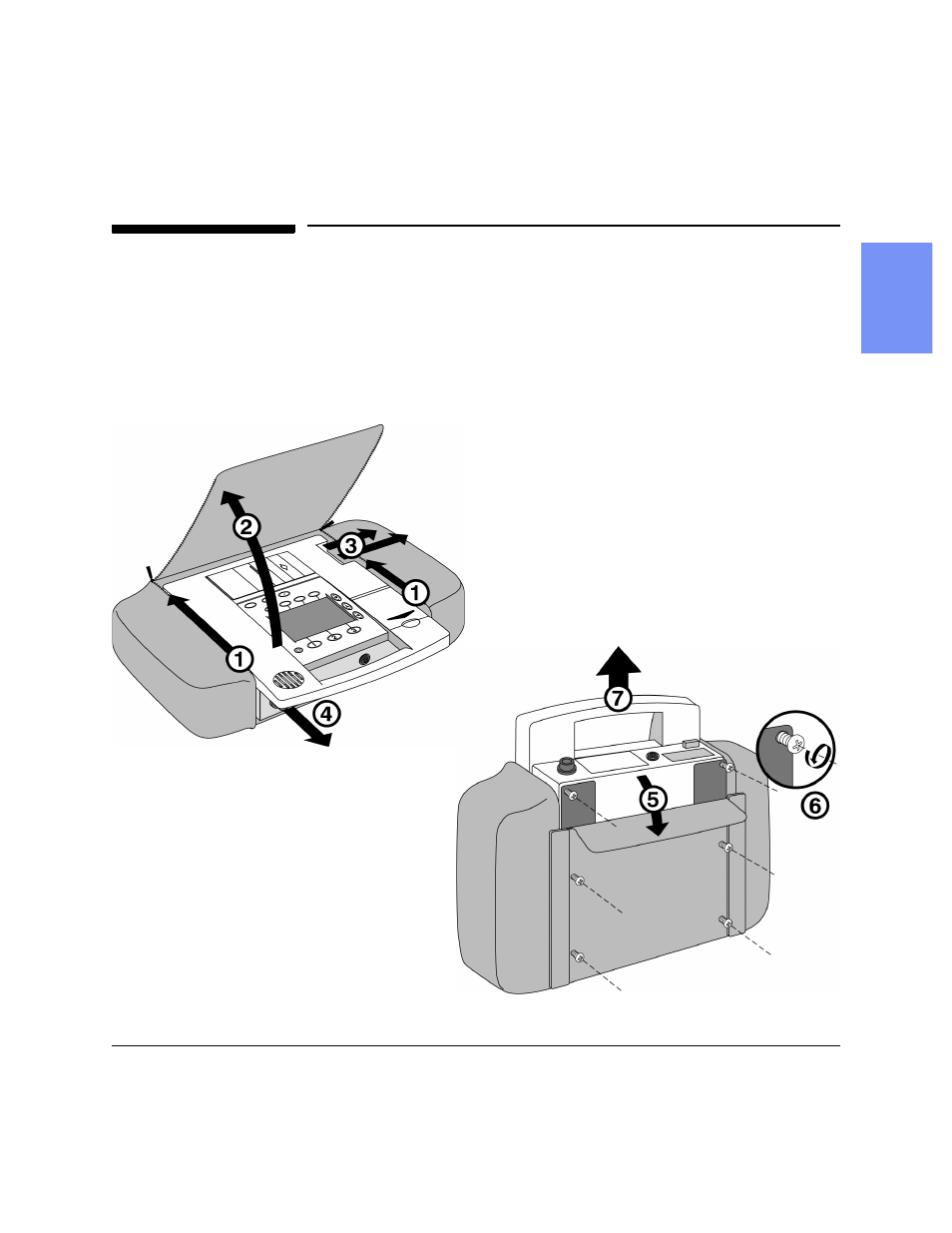

Figure 11-4 Removing the Carrying Case
