Connecting/Disconnecting Patient Cables
10-4 Setting Up and Configuring the HeartStart XLT
Connecting the ECG Patient Cable
To connect a 3- or 5-lead ECG patient cable:
1. Align the keyed patient cable plug with the slot on the ECG connector, as
shown in Figure 10-3.
2. Push the patient cable firmly into the ECG connector, until the white por-
tion is no longer visible.

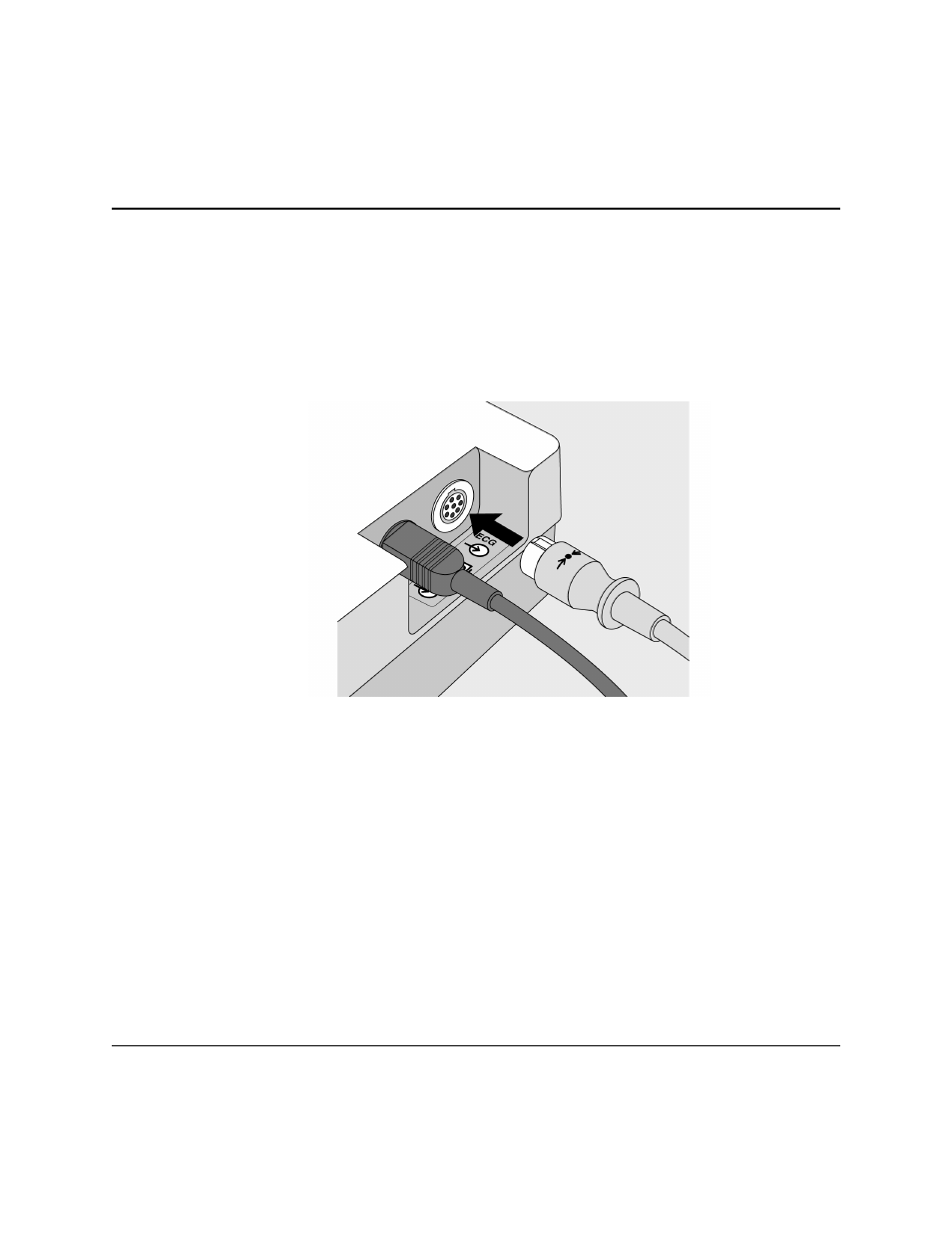

Figure 10-3 ECG Patient Cable Connector
Disconnecting the ECG Patient Cable
To disconnect the ECG patient cable, gently pull the white patient cable plug
out of the ECG connector, as shown in Figure 10-3.
