Getting Acquainted
M3500B HeartStart XLT Defibrillator/Monitor 2-7
2

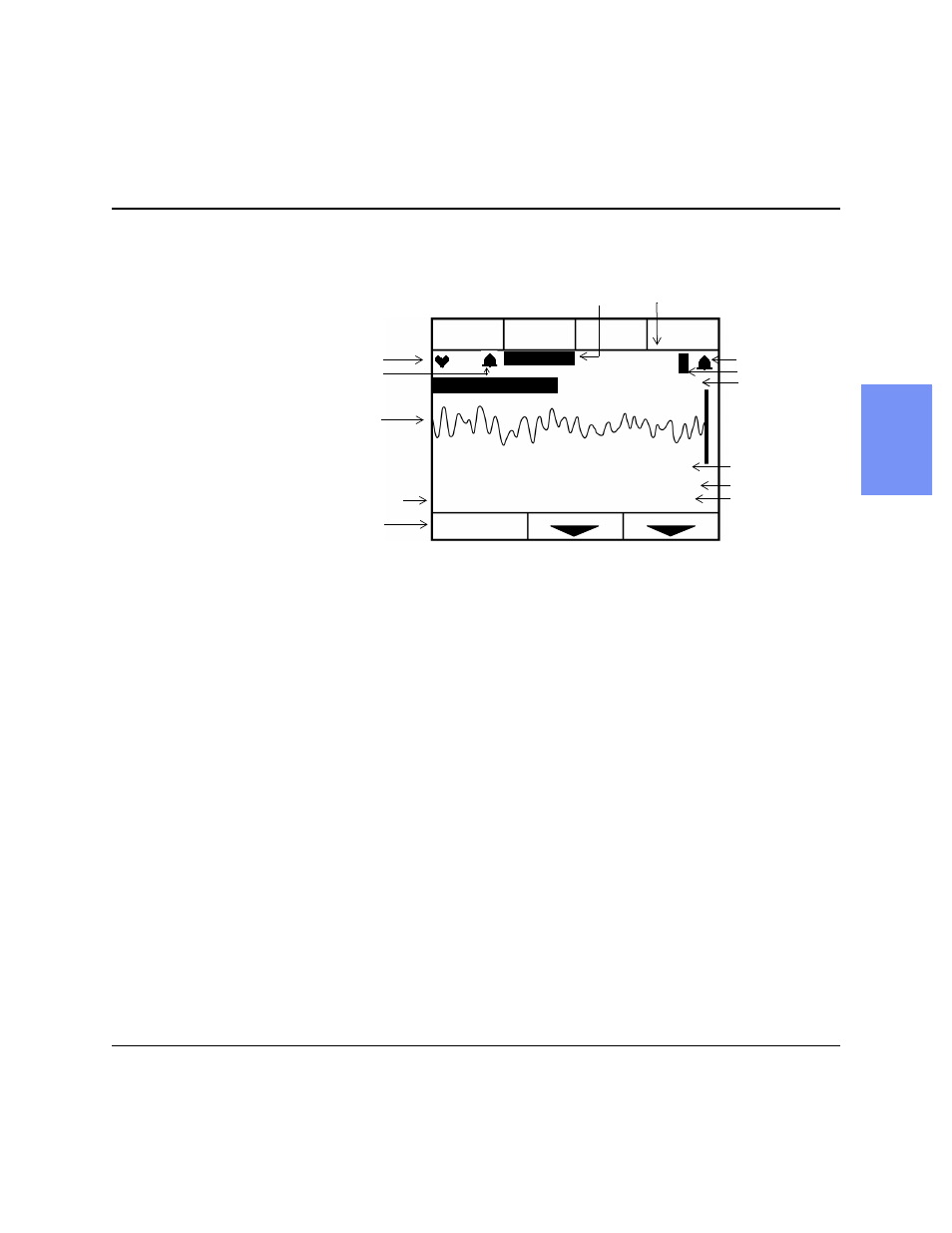

Figure 2-4 AED Mode Display Layout (ECG and SpO
2
Enabled)
User messages accompany voice prompts to guide you through the defibrilla-
tion process.
System and Momentary Messages:
z alert you to conditions that may require you to take action,
z provide status information, or
z offer recommendations.
A System Message remains on the display until the condition that generated
the message no longer exists. A Momentary Message is temporary and
appears on the display for only a few seconds. A list of messages is provided
in Chapter 12.
HR ALARM
LEAD
SELECT
SPO2
PAUSE ANALYZE SHOCK
Shocks: 0
00:15:02 150J
114J
132 86
PR 130 System Message
Momentary Message
Lead II
SpO
2
value
SpO
2
alarm
Pleth Bar
Pulse Rate
Heart Rate
ECG
Selected Energy
Defibrillation
Soft Keys
Lead
Displayed
HR Alarm
Current Charge
Shocks Delivered
Incident Timer
User Message
