External AF input

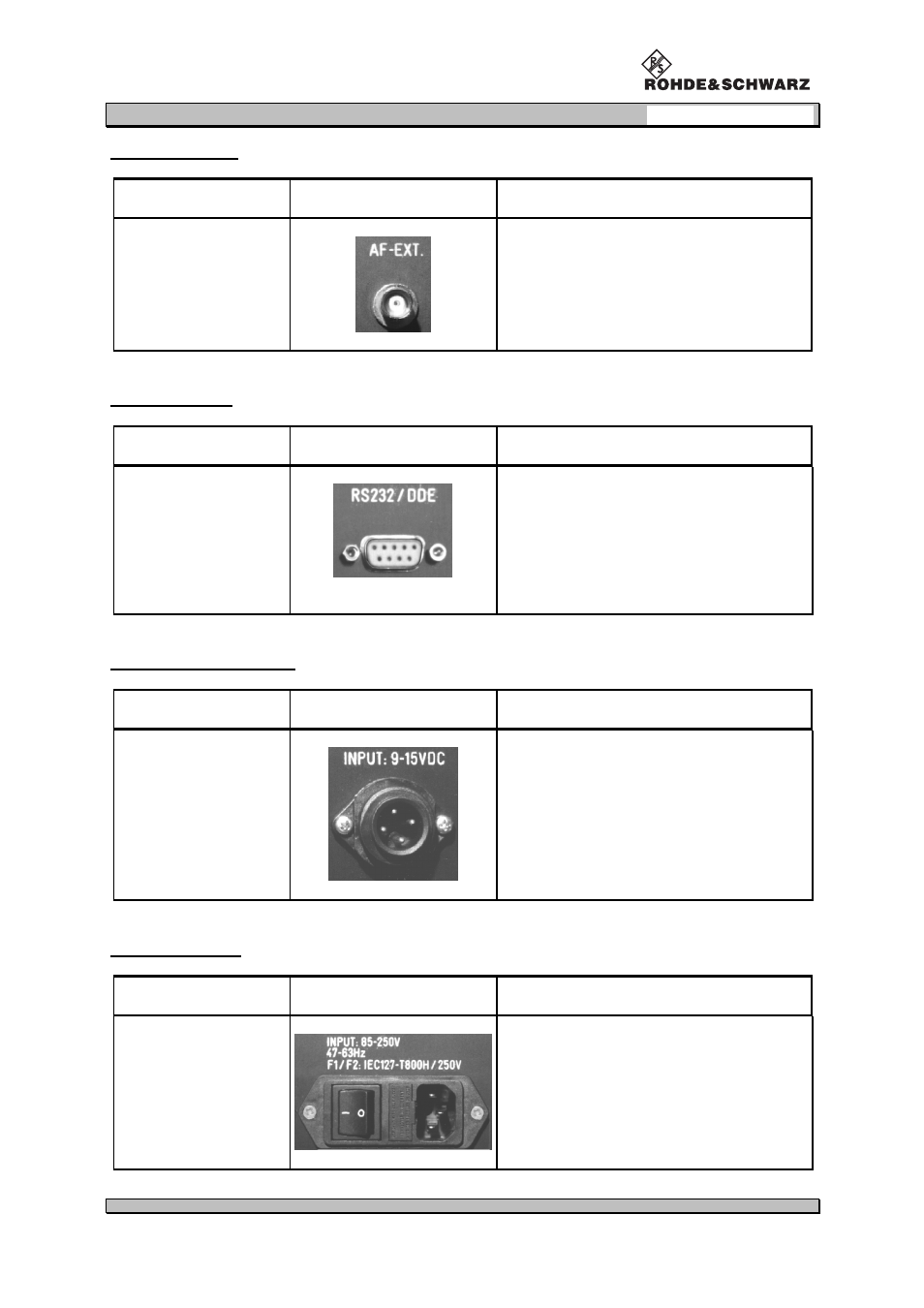

labeling figure description
AF EXT. input level: 1 to 2 V
rms
/ 50
Ω
frequency range: 30 Hz to 10 kHz
RS-232-Interface
labeling figure description
RS232/DDE
standard RS-232-Interface
COM parameter: N81
baud rate: 1200, 2400,
4800, 9600,
19200 adjustable in
the setup
External VDC connection
labeling figure description
INPUT: 9-15 VDC
DC connection: 12 VDC / 30 W
tolerance max. 9 to 15 VDC
Mains connection
labeling figure description
INPUT: 85-250 V/
47-63Hz
F1/F2: IEC127-
T800H/250V
mains connection: 87 to 265 VAC
47 to 63 Hz
