VOR/ILS Analyzer EVS200
0796.1800.02 E-8 9

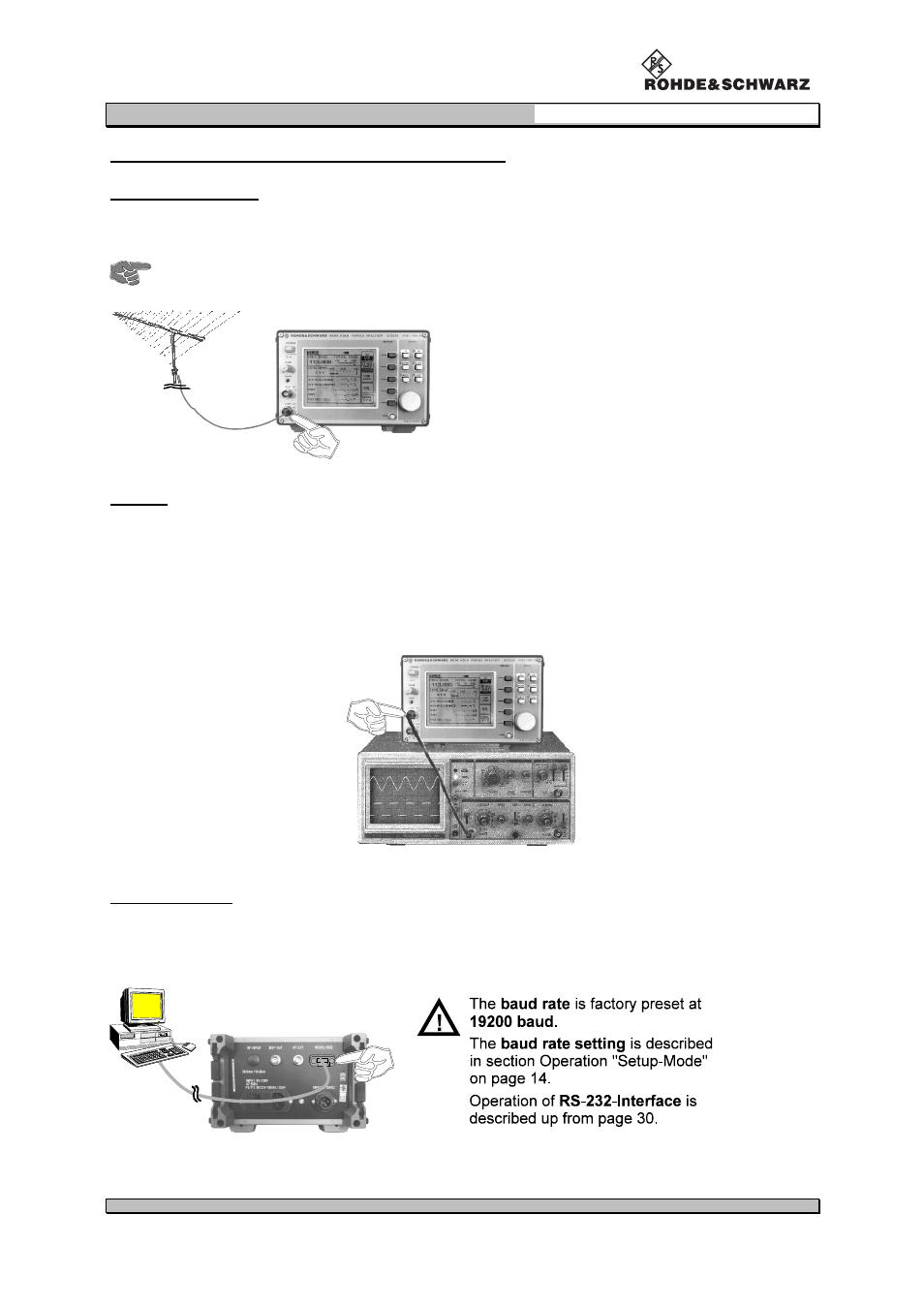

Chapter 2: Preparation for Operation
Connection of Signal/Control Inputs/Outputs
Antenna connection
Via the RF INPUT at the frontside the VOR/ILS Analyzer EVS200 can be connected with a receiver
antenna which agrees to frequency range.
As an option a RF input at the unit’s rear side is possible.
AF OUT
Via the AF OUT at the frontside the demodulated AF signal will be output.
AF signal bandwidth:...............................300 Hz to 4 kHz
output level:.............................approx.: 200 mV
rms
/ 50
Ω
/ by 50% AM part
e.g. VOR/ILS Analyzer
Þ=
oscilloscope
RS-232-Interface
Via the RS-232-Interface at the rearside all essential unit functions of the VOR/ILS Analyzer EVS200
can be remote controlled with a PC terminal. For that purpose the unit can be operated with
commercial terminal programs (e.g. Telix, Procomm, etc.)
