VOR/ILS Analyzer EVS200
0796.1800.02 E-8 13
Chapter 3: Operation
Operation of the unit
Because of the many universal measuring functions of the VOR/ILS Analyzer EVS200 the operation
has to be carried out according to the following instructions. Basically all measurement parameter set-
tings are realized through softkeys and the mode keys. An activated mode is shown by a luminous
LED (beside the belonging mode key). All important signal parameters are analyzed by the DSP (digital
signal processor) and indicated on the display. Due to the variety of the analyzed parameters the indi-
cation in the ILS and VOR mode is subdivided into two display parts ("DISPL 1/2" and
DISPL 2/2").
The RS-232-Interface operation of the VOR/ILS Analyzer EVS200 is
described in section "Operating the VOR/ILS ANALYZER EVS200
via RS-232-Interface"

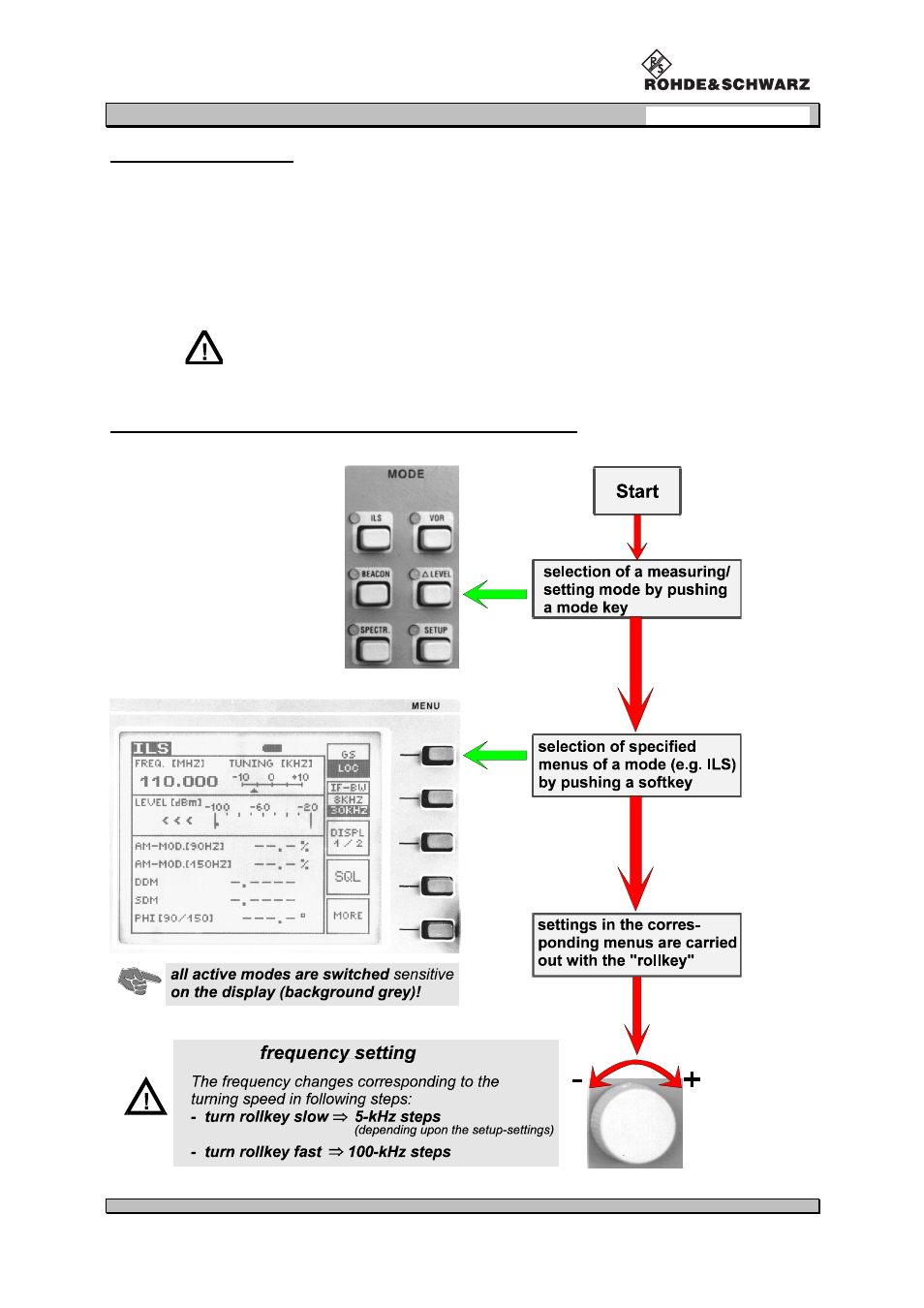

General operating instructions of the VOR/ILS Analyzer EVS200
