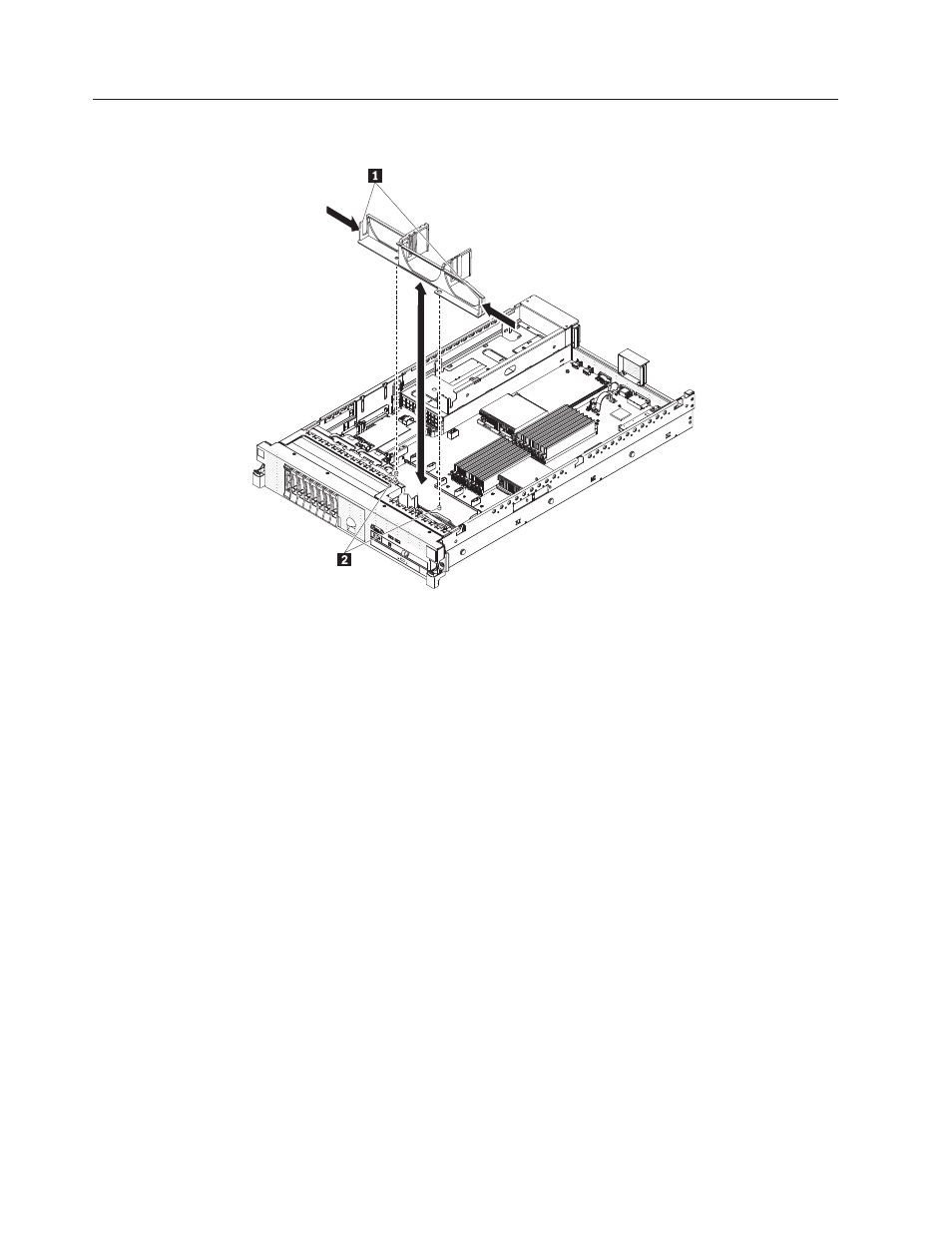

Installing

the

fan

bracket

To

install

the

fan

bracket,

complete

the

following

steps.

1.

Lower

the

fan

bracket

into

the

chassis.

2.

Align

the

holes

in

the

bottom

of

the

bracket

with

the

pins

2

in

the

bottom

of

the

chassis.

3.

Press

the

bracket

into

position

until

the

fan-bracket

release

levers

1

click

into

place.

4.

Replace

the

fans

(see

5.

Replace

the

PCI

riser-card

assemblies

and

the

DIMM

air

baffle

(see

and

6.

Install

the

cover

(see

installation”

7.

Slide

the

server

into

the

rack.

8.

Reconnect

the

external

cables;

then,

reconnect

the

power

cords

and

turn

on

the

peripheral

devices

and

the

server.

76

ThinkServer

RD220

Types

3729,

3779,

3797,

and

3798:

Installation

and

User

Guide
