Installing
a
PCI
adapter

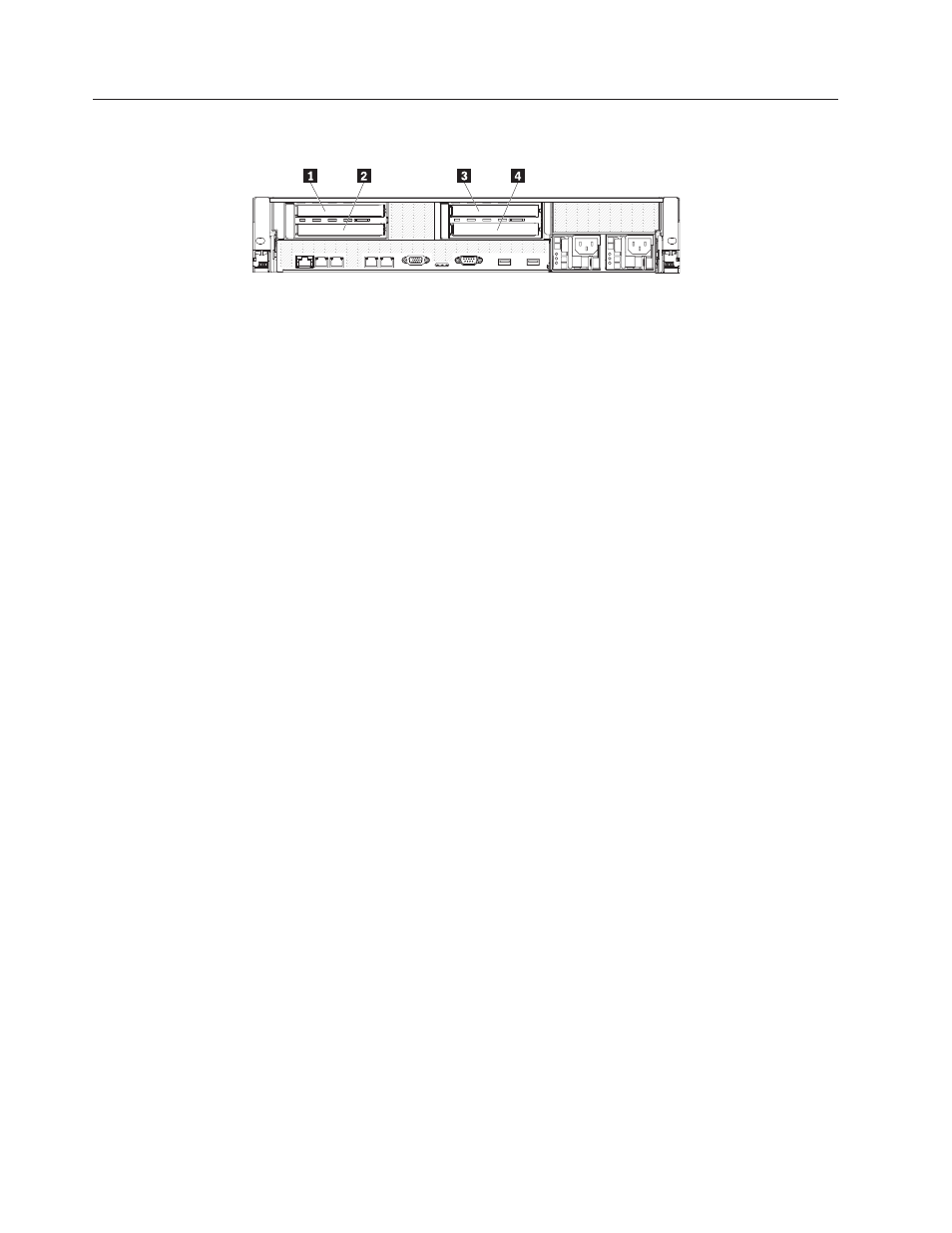

The
following
illustration
shows
the
PCI
adapter
expansion
slots.
1
PCI
slot
1
2
PCI
slot
2
3
PCI
slot
3
4
PCI
slot
4
The
following
notes
describe
the
types
of
adapters
that
the
server
supports
and
other
information
that
you
must
consider
when
installing
an
adapter:
v
Locate
the
documentation
that
comes
with
the
adapter
and
follow
those
instruction
in
addition
to
the
instructions
in
this
section.
If
you
have
to
change
switch
settings
or
jumper
settings
on
the
adapter,
follow
the
instructions
that
come
with
the
adapter.
v
To
ensure
that
a
ServeRAID-10i,
ServeRAID-10is,
or
ServeRAID-10M
adapter
works
correctly
in
your
UEFI-based
server,
make
sure
that
the
adapter
firmware
is
at
the
latest
level.
Important:
Some
cluster
solutions
require
specific
code
levels
or
coordinated
code
updates.
If
the
device
is
part
of
a
cluster
solution,
verify
that
the
latest
level
of
code
is
supported
for
the
cluster
solution
before
you
update
the
code.
v
Some
high
performance
video
adapters
are
supported
by
your
server.
See
for
more
information.
v
The
following
notes
describe
important
information
about
the
NVIDIA
video
adapter
that
comes
preinstalled
in
some
server
models:
–
Do
not
set
the
maximum
digital
video
resolution
above
1600
x
1200
at
60
Hz
for
an
LCD
monitor.
This
is
the
highest
resolution
that
is
supported
for
an
optional
video
adapter
in
the
server.
–
Any
high-definition
video-out
connector
or
stereo
connector
on
an
optional
video
adapter
is
not
supported.
v
A
PCI
Express
Gen
2
x16
riser
card
can
support
only
one
adapter.
v
The
expansion
slots
in
the
PCI
riser
cards
accommodate
the
various
form
factors
of
the
non-hot-plug
adapters
as
follows:
–
Expansion
slot
1:
Full-height,
full-length
–
Expansion
slot
2:
Low-profile
with
standard
bracket
–
Expansion
slot
3:
Full-height,
full-length
–
Expansion
slot
4:
Full-height,
half-length
If
you
install
a
different
supported
riser-card
assembly,
the
supported
adapter
types
might
be
different.
For
a
list
of
supported
riser-card
assemblies,
see
v
The
system
scans
devices
in
the
following
order,
if
you
have
not
changed
the
default
boot
precedence:
–
Video
unified
extensible
firmware
interface
(UEFI)
(fixed)
–
System
board
Ethernet
1
PXE
(fixed)
56
ThinkServer
RD220
Types
3729,
3779,
3797,
and
3798:
Installation
and
User
Guide
