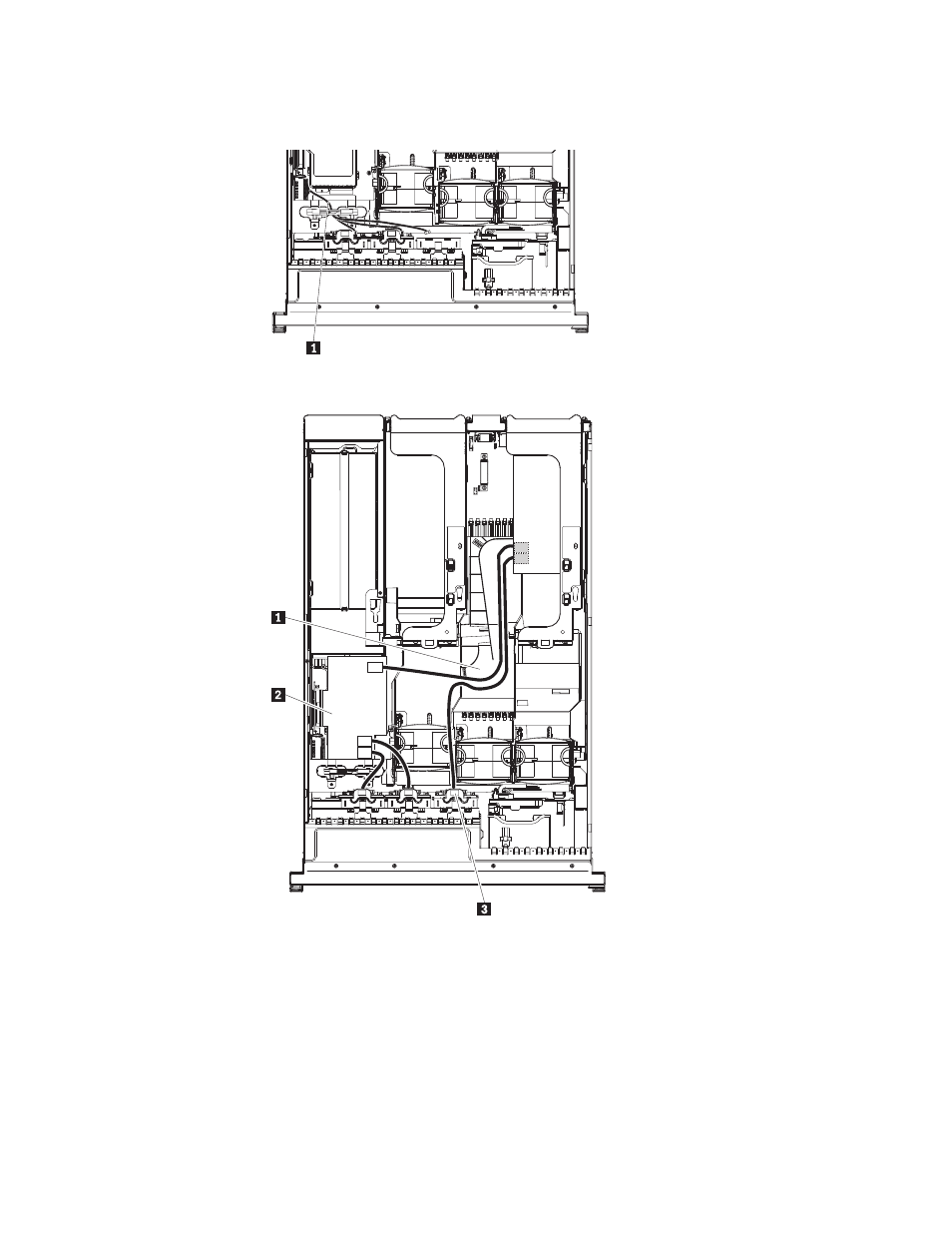

The

following

illustration

shows

the

internal

routing

for

the

configuration

cable

(3

backplane

connectors)

1 .

The

following

illustrations

show

the

internal

routing

for

the

SAS

hard

disk

drive

backplane

cables.

1

DIMM

air

baffle

2

SAS

expander

card

3

New

backplane

Chapter

5.

Installing

optional

devices

and

replacing

customer

replaceable

units

41
