Installing
a
CD-RW/DVD
drive
To
install
the
replacement
CD-RW/DVD
drive,
complete
the
following
steps.
1.

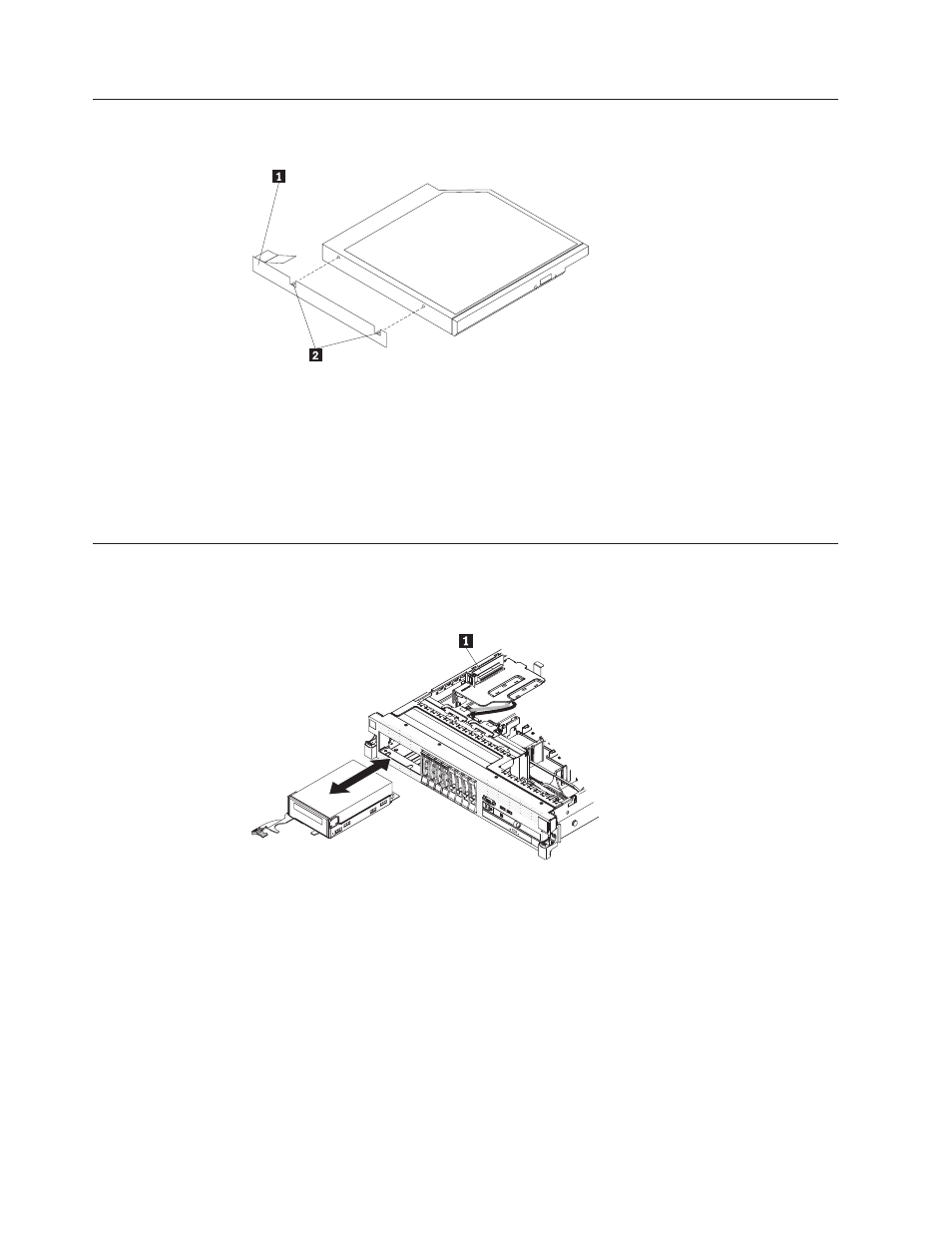

Attach
the
drive-retention
clip
1
to
the
side
of
the
drive.
2.
Slide
the
drive
into
the
CD/DVD
drive
bay
(using
the
alignment
pins
2 )
until
the
drive
clicks
into
place.
3.
Install
the
cover
(see
4.
Slide
the
server
into
the
rack.
5.
Reconnect
the
external
cables;
then,
reconnect
the
power
cords
and
turn
on
the
peripheral
devices
and
the
server.
Removing
a
tape
drive
The
following
illustration
shows
how
to
remove
an
optional
tape
drive
from
the
server.
1
SAS
riser
card
To
remove
a
tape
drive
from
the
server,
complete
the
following
steps:
1.
Read
the
safety
information
that
begins
on
page
and
2.
Turn
off
the
server
and
peripheral
devices,
and
disconnect
the
power
cords
and
all
external
cables.
3.
Slide
the
server
out
of
the
rack;
then,
remove
the
cover
(see
4.
Open
the
tape
drive
tray
release
latch
3
and
slide
the
drive
tray
out
of
the
bay
approximately
25
mm
(1
inch).
5.
Disconnect
the
power
and
signal
cables
from
the
rear
of
the
tape
drive.
