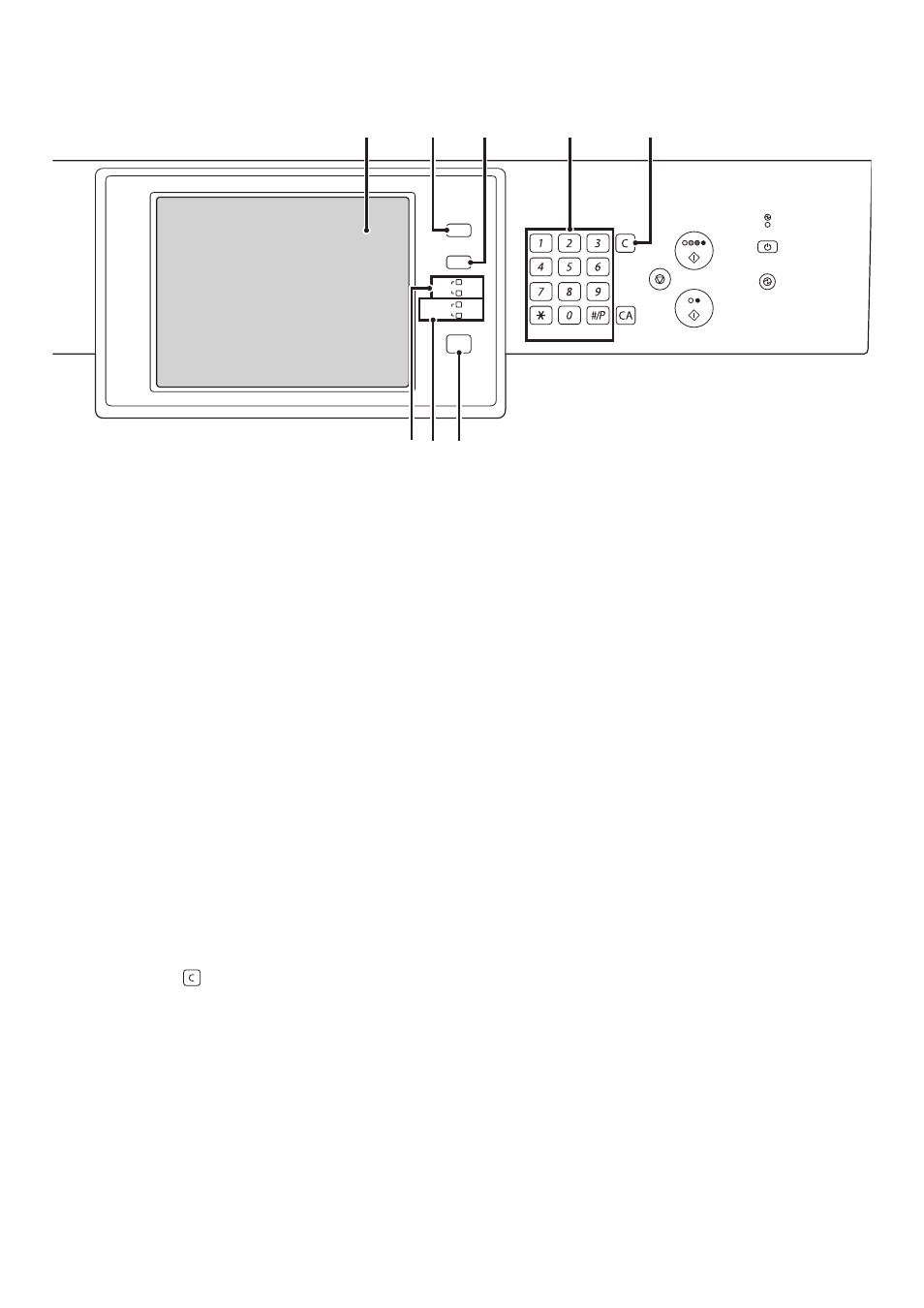

OPERATION PANEL
(1)
Touch panel
Messages and keys appear in the touch panel display.
Touch the displayed keys to perform a variety of
operations.
When a key is touched, a beep sounds and the selected
item is highlighted. This provides confirmation as you
perform an operation.
☞
(page 12)
(2)
[HOME] key
Touch this key to display the home screen. Frequently
used settings can be registered in the home screen to
enable quick and easy operation of the machine.
☞
(page 23)
(3)
[SYSTEM SETTINGS] key
Press this key to display the system settings menu
screen. The system settings are used to configure paper
tray settings, store addresses for transmission
operations, and adjust parameters to make the machine
easier to use.
☞
System Settings Guide
(4)
Numeric keys
These are used to enter the number of copies, fax
numbers, and other numerical values.
(5)
[CLEAR] key (
)
Press this key to return the number of copies to "0".
(6)
PRINT mode indicators
• READY indicator
Print jobs can be received when this indicator is lit.
• DATA indicator
This blinks while print data is being received and lights
steadily while printing is taking place.
(7)
IMAGE SEND mode indicators
• LINE indicator
This lights up during transmission or reception of a fax
or Internet fax. This also lights during transmission of
an image in scan mode.
• DATA indicator
This blinks when a received fax or Internet fax cannot
be printed because of a problem such as out of paper.
This lights up when there is a transmission job that has
not been sent.
(8)
[JOB STATUS] key
Press this key to display the job status screen. The job
status screen is used to check information on jobs and to
cancel jobs.
☞
PRINT/SEND STATUS (JOB STATUS)
LOGOUT
LINE
IMAGE SEND
DATA
DATA
READY
SYSTEM
SETTINGS
HOME
JOB STATUS
(4)
(5)
(2)
(3)
(1)
(6) (7) (8)
