10. Connect necessary cables to the backplane.
11. Install the server system cover. For instructions, see
“Installing the Server System
Cover” .
12. Plug all peripheral devices and the AC power cable(s) into the server.
Installing and Removing the RAID Activation
Key and the RAID Mini DIMM
Installing the RAID Activation Key and the RAID Mini DIMM
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information” .
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see “Removing the System
Cover” .
4. Remove the large air baffle. For instructions, see “Removing the Large Air Baffle” .
5. Install the RAID activation key by pushing straight down (see letter “A” in the
figure below).
6. Install the RAID mini DIMM by releasing the retention mechanism (see letter “B”
in the figure below) and inserting the DIMM into the socket (see letter “C” in the
figure below).

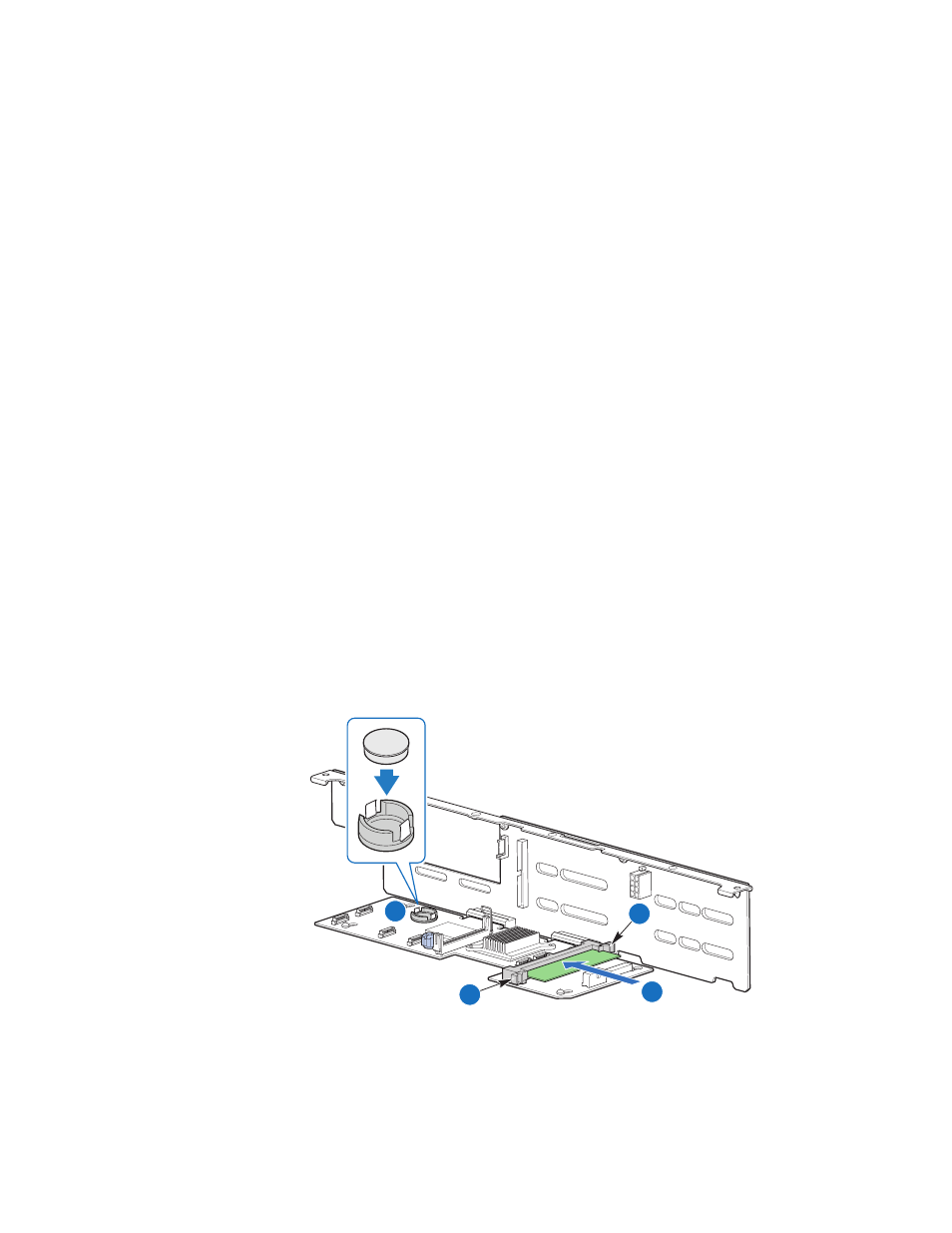

Figure 67. Installing the RAID Activation Key and the RAID Mini DIMM
A
B
B
C
AF000742
