Installing and Removing the I/O Expansion
Module(s)

Installing the I/O Expansion Module(s)

1. Observe the safety and ESD precautions at the beginning of this book. See

2. Power down the server and unplug all peripheral devices and the AC power

cable(s).

3. Remove the server system cover. For instructions, see

4. Remove the PCI riser assembly. For instructions, see

5. Squeeze the sides of the I/O expansion module cover(s) to disengage it from the

server system back panel and remove it. See letter “A” in the figure below.

6. Attach the standoffs to the server board (see letter “B” in the figure below) and

attach the I/O expansion module(s) to the server board (see letter “C” in the figure

below).

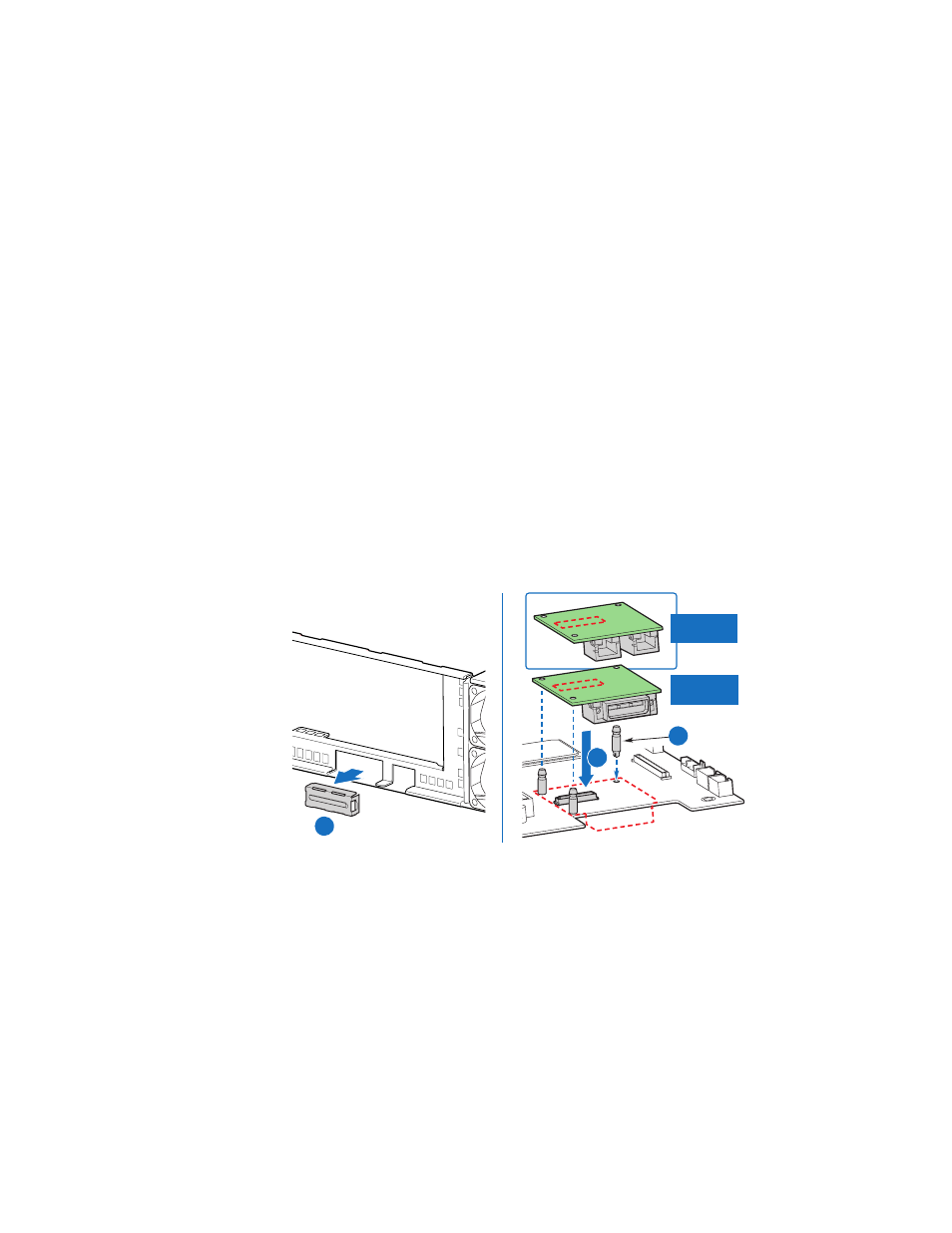

Figure 57. Installing the I/O Expansion Module to the Server Board

7. Install the PCI riser assembly into the server system. For instructions, see

8. Install the processor air duct. For instructions, see

9. Install the server system cover. For instructions, see

10. Plug all peripheral devices and the AC power cable(s) into the server.

I/O Module
(External SAS)

I/O Module
(Dual Gigabit)

AF000740
