70 Intel® Server System SR2500AL User’s Guide
Removing the Intel
®
RMM and Intel
®
RMM NIC
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information” .
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see “Removing the System
Cover” .
4. Remove the PCI riser assembly. For instructions, see “Removing the PCI Riser
Assembly” .
5. Remove the Intel
®
RMM board from the server board (see letter “A” in the figure
below).
6. Remove the Intel
®
RMM NIC module from the server board (see letter “B” in the
figure below).
7. Remove the standoffs from the server board (see letter “C” in the figure below).
8. Install the Intel
®
RMM NIC module cover into the system back panel (see letter
“D” in the figure below).

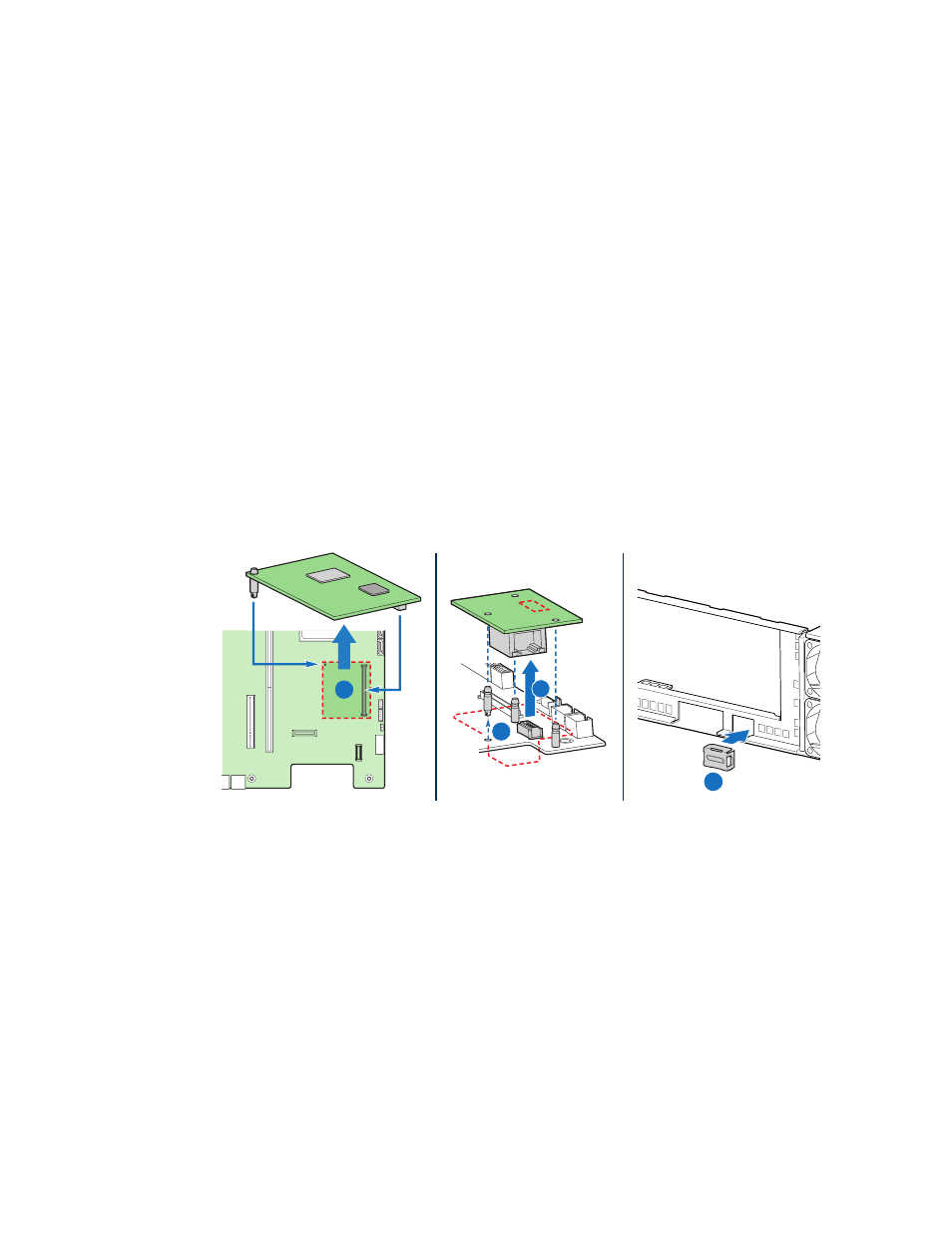

Figure 60. Removing the Intel
®
RMM and the Intel
®
RMM NIC Module from
the Server System
9. Install the PCI riser assembly into the server system. For instructions, see
“Installing the PCI Riser Assembly” .
10. Install the processor air duct. For instructions, see “Installing the Processor Air
Duct” .
11. Install the server system cover. For instructions, see “Installing the Server System
Cover” .
12. Plug all peripheral devices and the AC power cable(s) into the server.
AF000744
A B
D
C
