90 Intel® Server System SR2500AL User’s Guide
5. Press the latch at the back of the control panel (see letter “A” in the figure below).
6. Slide the control panel out through the front of the server system (see letter “B” in
the figure below).

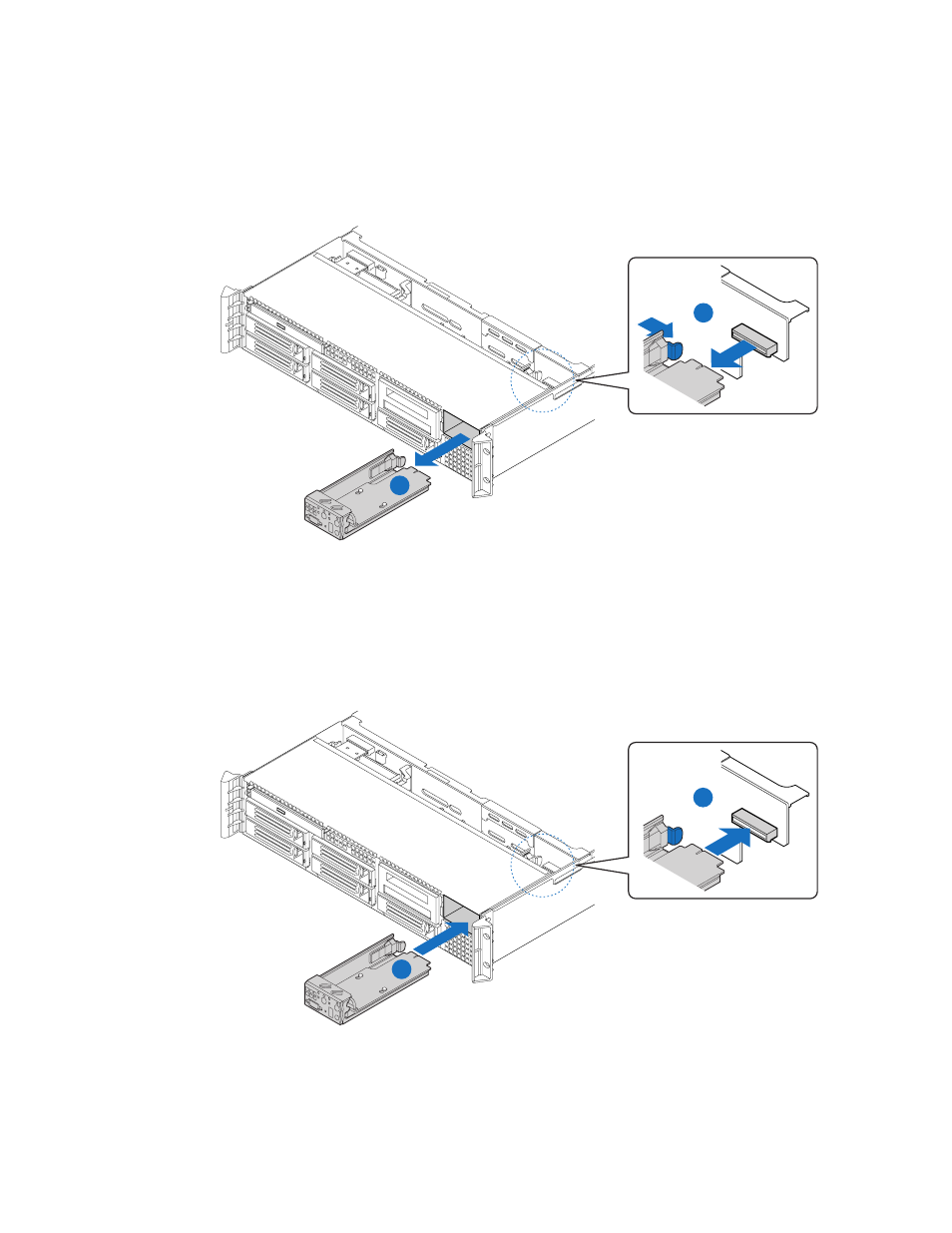

Figure 79. Removing Standard Control Panel Module from the Server
System
7. Slide the replacement control panel into the server system (see letter “A”) until it
clicks into place (see letter “B”).
Figure 80. Installing Control Panel Module into the Server System
AF000005
B
A
AF000006
A
B
