Intel® Server System SR2500AL User’s Guide 65
6. Open the rear retention clip by pushing the blue slide upward and rotating clip to
the fully open position (see letter “A”).
7. Open the front retention clip by rotating 90 degrees outward (see letter “B”).
8. Remove the PCI add-in card from the riser card connector (see letter “C”).

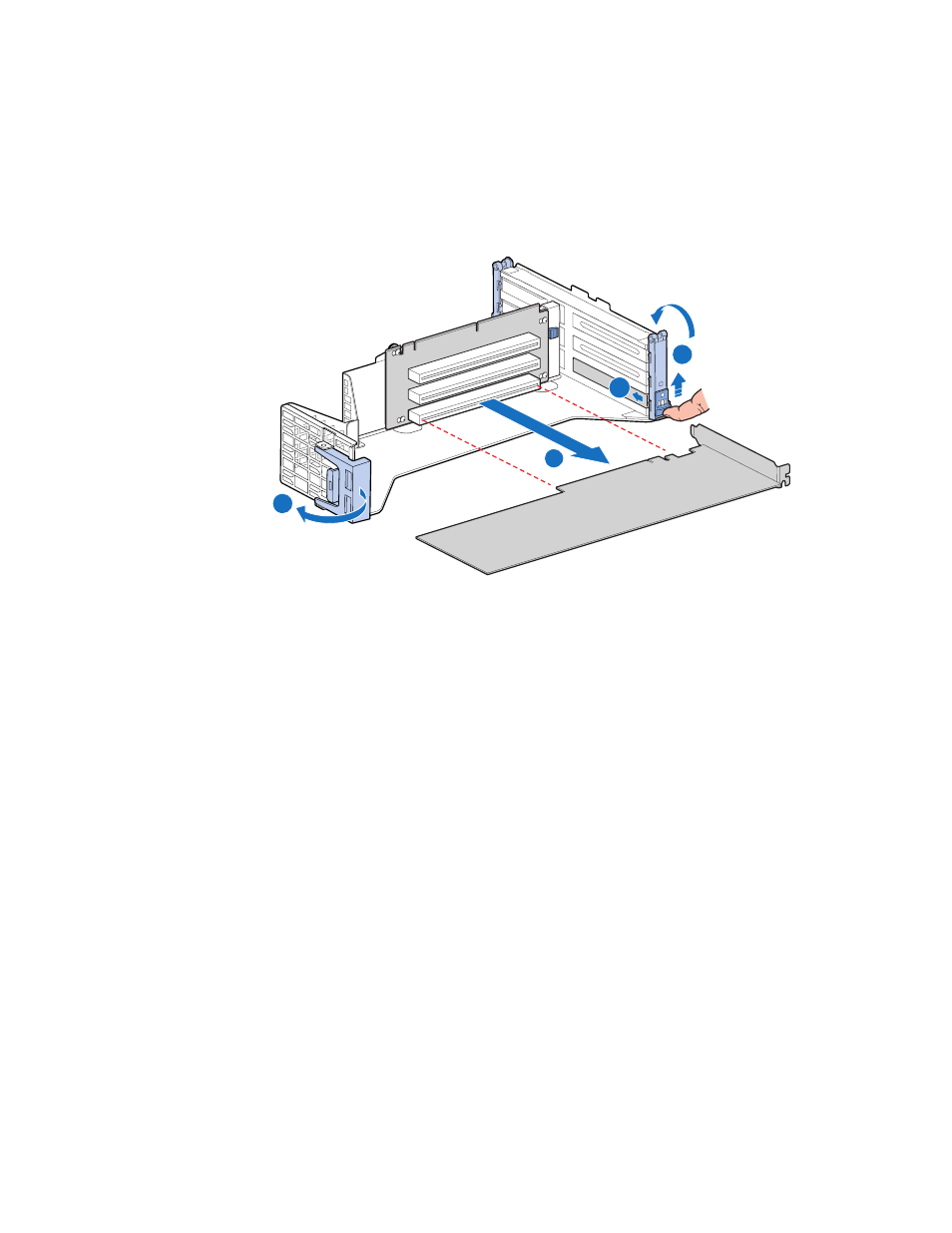

Figure 56. Removing a Full Height Add-In Card
9. Close both retention clips.
Note: Make sure that all empty add-in card slots have filler panels installed.
10. Install the PCI riser assembly into the server system. For instructions, see
“Installing the PCI Riser Assembly” .
11. Install the processor air duct. For instructions, see “Installing the Processor Air
Duct” .
12. Install the server system cover. For instructions, see “Installing the Server System
Cover” .
13. Plug all peripheral devices and the AC power cable(s) into the server.
