Installing and Removing the RAID Battery
Backup Unit (BBU)
Installing the RAID Battery Backup Unit
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information” .
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see “Removing the System
Cover” .
4. Remove the large air baffle. For instructions, see “Removing the Large Air Baffle” .
5. Insert the RAID battery backup unit into the server system and slide back until it
locks into place as shown in the figure below (see letter “A”).
6. Attach the cable from the rear of the RAID battery backup unit to the mid-plane
board as shown (see letter “B”).

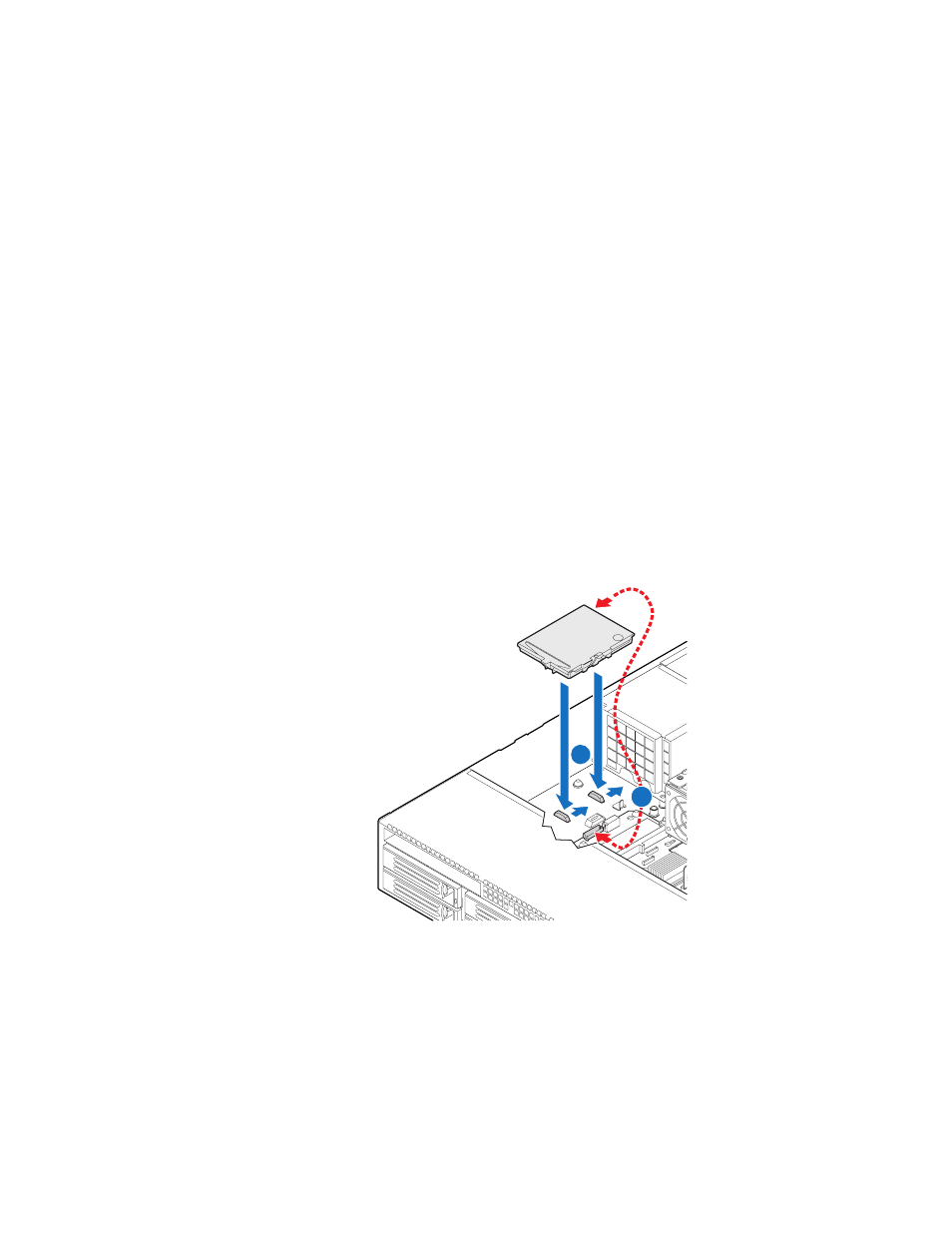

Figure 69. Installing the RAID Battery Backup Unit
7. Install the large air baffle. For instructions, see “Installing the Large Air Baffle” .
8. Install the server system cover. For instructions, see “Installing the Server System
Cover” .
A
B
AF000149
