Intel® Server System SR2500AL User’s Guide 81
Installing and Removing the Server Board
Installing the Server Board
1. Observe the safety and ESD precautions at the beginning of this book. See “Safety
Information” .
2. Power down the server and unplug all peripheral devices and the AC power
cable(s).
3. Remove the server system cover. For instructions, see “Removing the System
Cover” .
4. Remove the processor air duct. For instructions, see “Removing the Processor Air
Duct” .
5. Remove the PCI riser assembly. For instructions, see “Removing the PCI Riser
Assembly” .
6. Remove the optical drive cable if installed.
7. Remove the bridge board. For instructions, see
Figure 61 “Removing the Bridge
Board from the Server System” on page -71 .
8. Remove the large air baffle. For instructions, see “Removing the Large Air Baffle” .
9. Remove the fan module assembly. For instructions, see “Replacing a Fan Module” .
10. Place the server board into the server system as shown in the figure below (see
letter “A”), and attach the server board with six screws (see letter “B”).

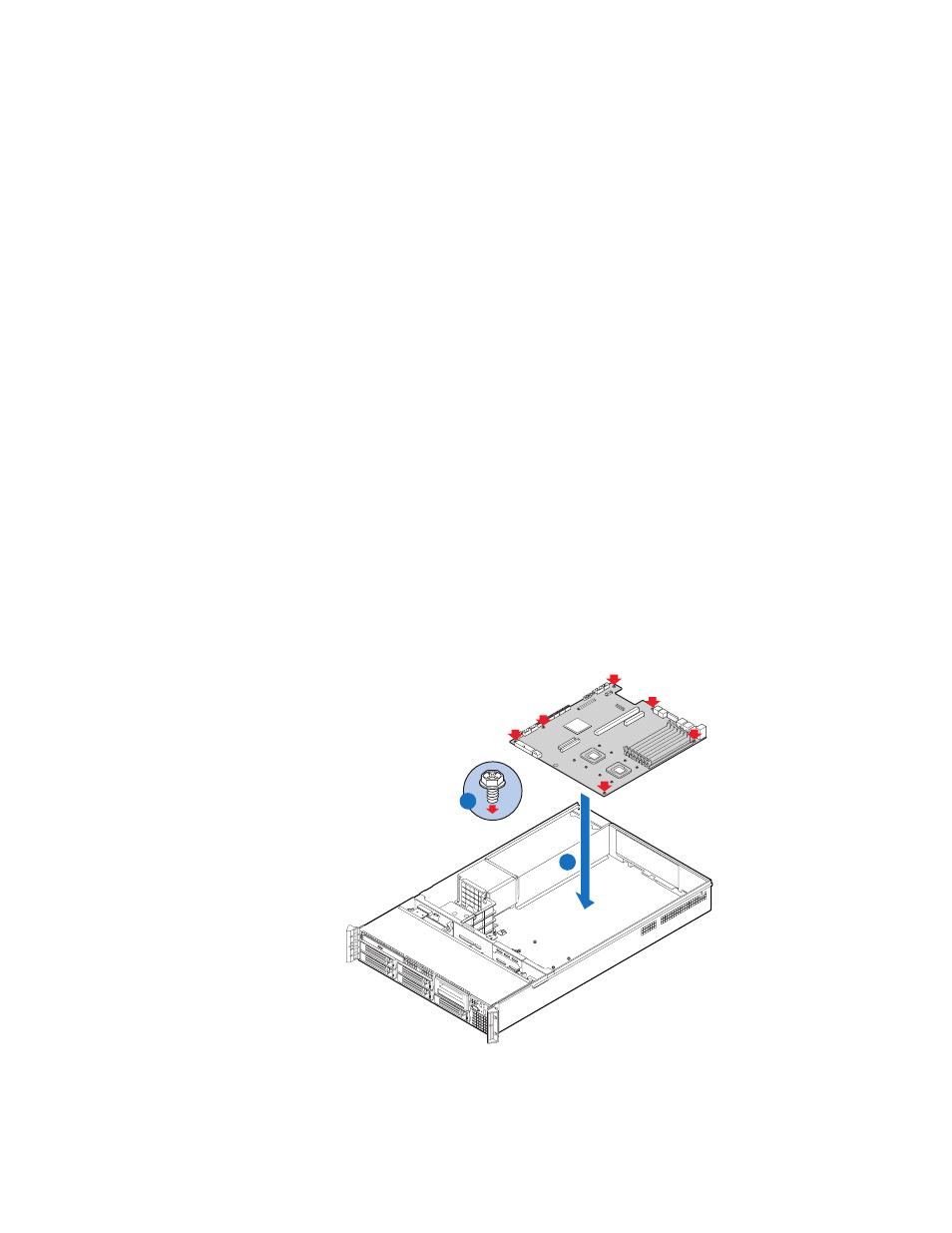

Figure 71. Installing the Server Board
AF000025
A
B
