3. Remove the server system cover. For instructions, see
4. Remove the processor air duct by lifting straight up.
5. Disconnect any cables attached to any add-in cards.
6. Grasp both riser latches with thumb and forefinger (see letter “A”), and pull up to
release riser assembly.
7. Lift riser assembly straight up (see letter “B”).

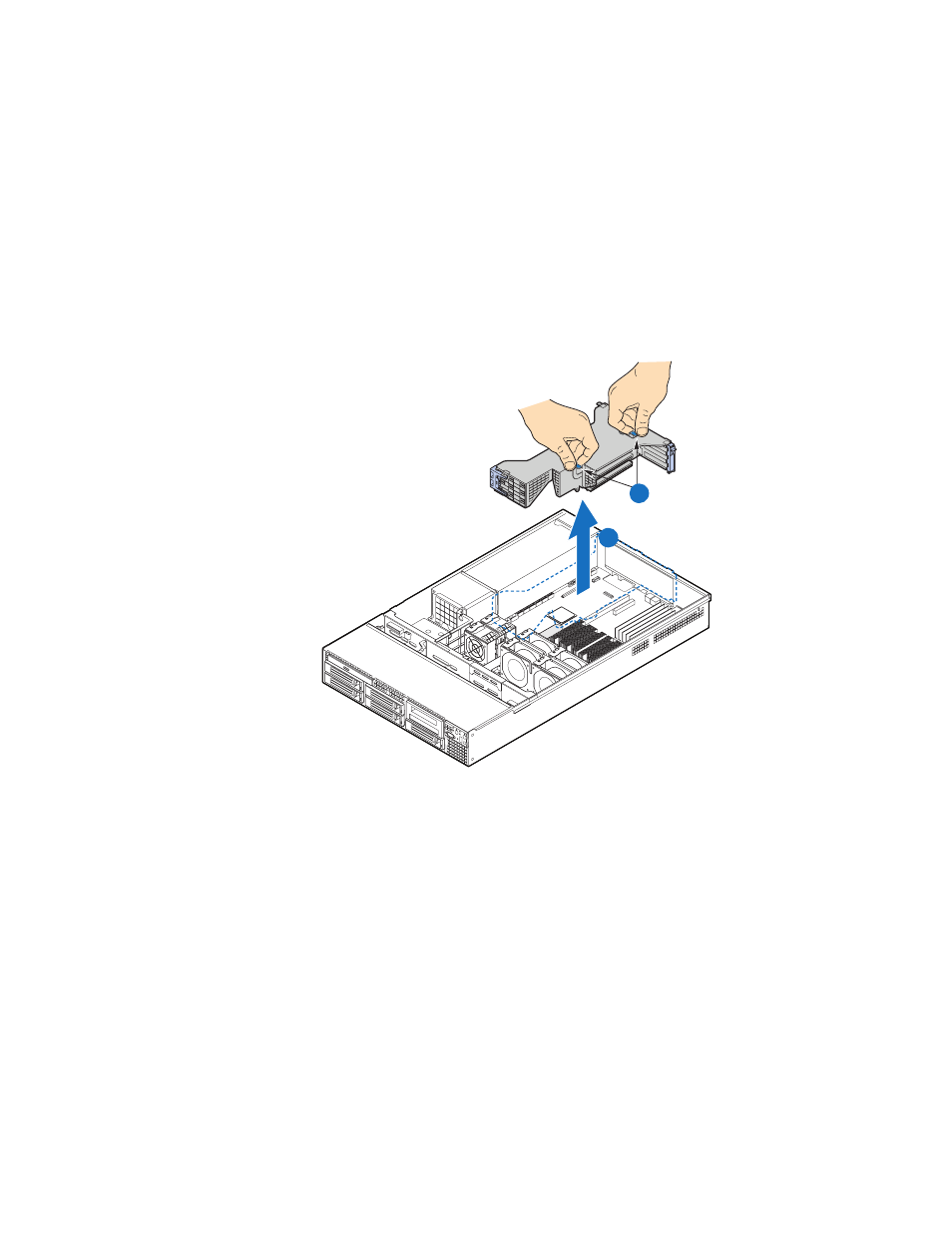

Figure 51. Removing PCI Riser Assembly from the Server System
8. If you need to add or replace a PCI add-in card, see
“Installing and Removing a PCI
.
9. If you need to add or replace a PCI riser connector, see
.
10. If you removed the PCI riser assembly for another procedure, continue with that
procedure.
TP02145
A
B
