Intel® Server System SR2500AL User’s Guide 43
5. Pull up on the air baffle to remove it. See the figure below. You may need to remove
or hold cables out of the way.

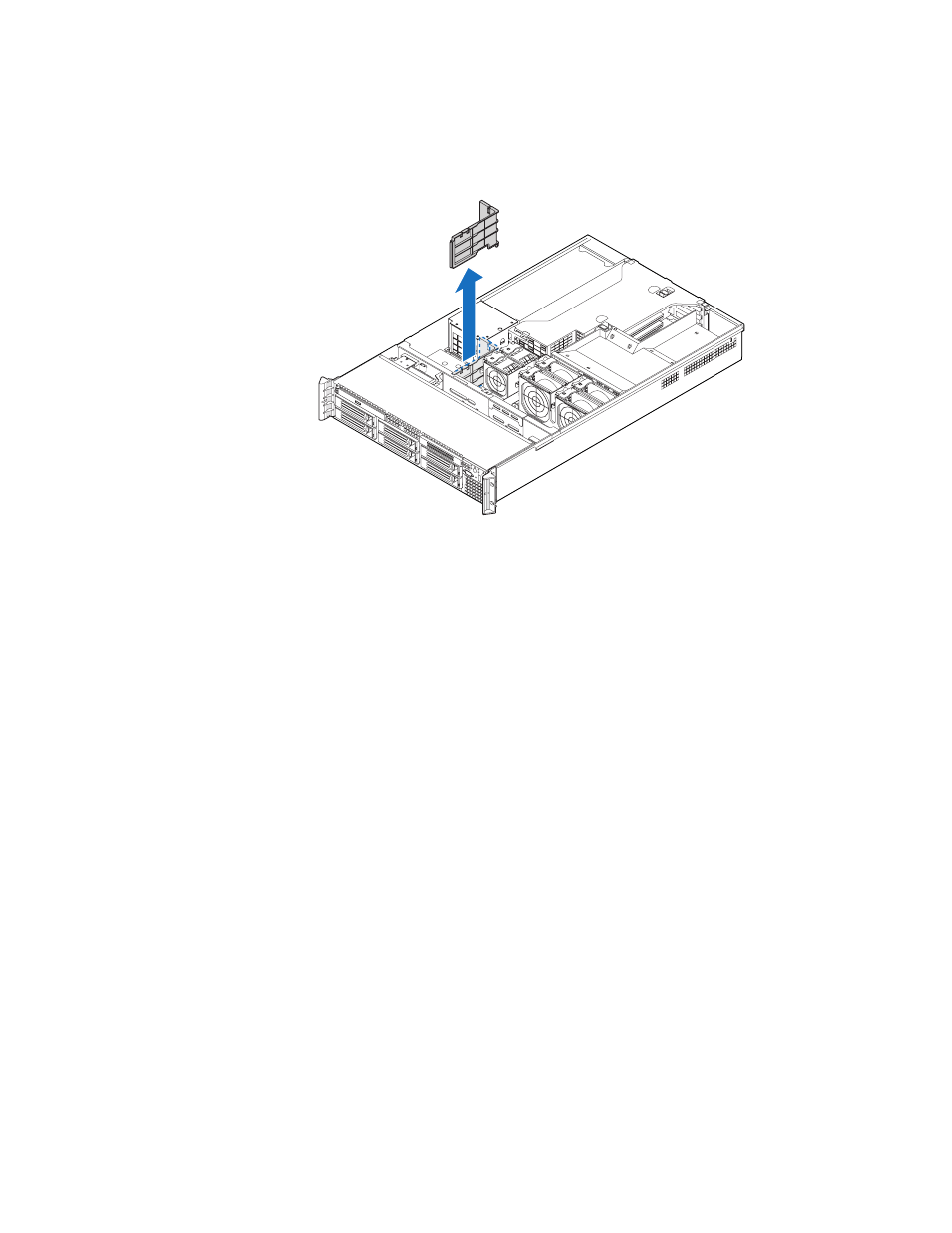

Figure 32. Removing the Large Air Baffle
Installing the Large Air Baffle
1. Lower the baffle into the server system and snap into the server board standoff as
shown in the figure below.
2. While setting the baffle into place, route the cables beneath it appropriately. See
Appendix , “Cable Routing” or the Quick Reference Label that came with your
system for help in determining where the cables should be routed.
TP02134
