Intel® Server System SR2500AL User’s Guide
SAS/SATA Mid-Planes
The mid-plane serves as the primary interface between the server board, hot-swap
backplane, and control panel. Two midplanes are offered for this system: a passive SATA
(data cables required), and an active SAS/SATA RAID (no data cables required). The
following diagrams show the location for each connector found on the mid-planes.

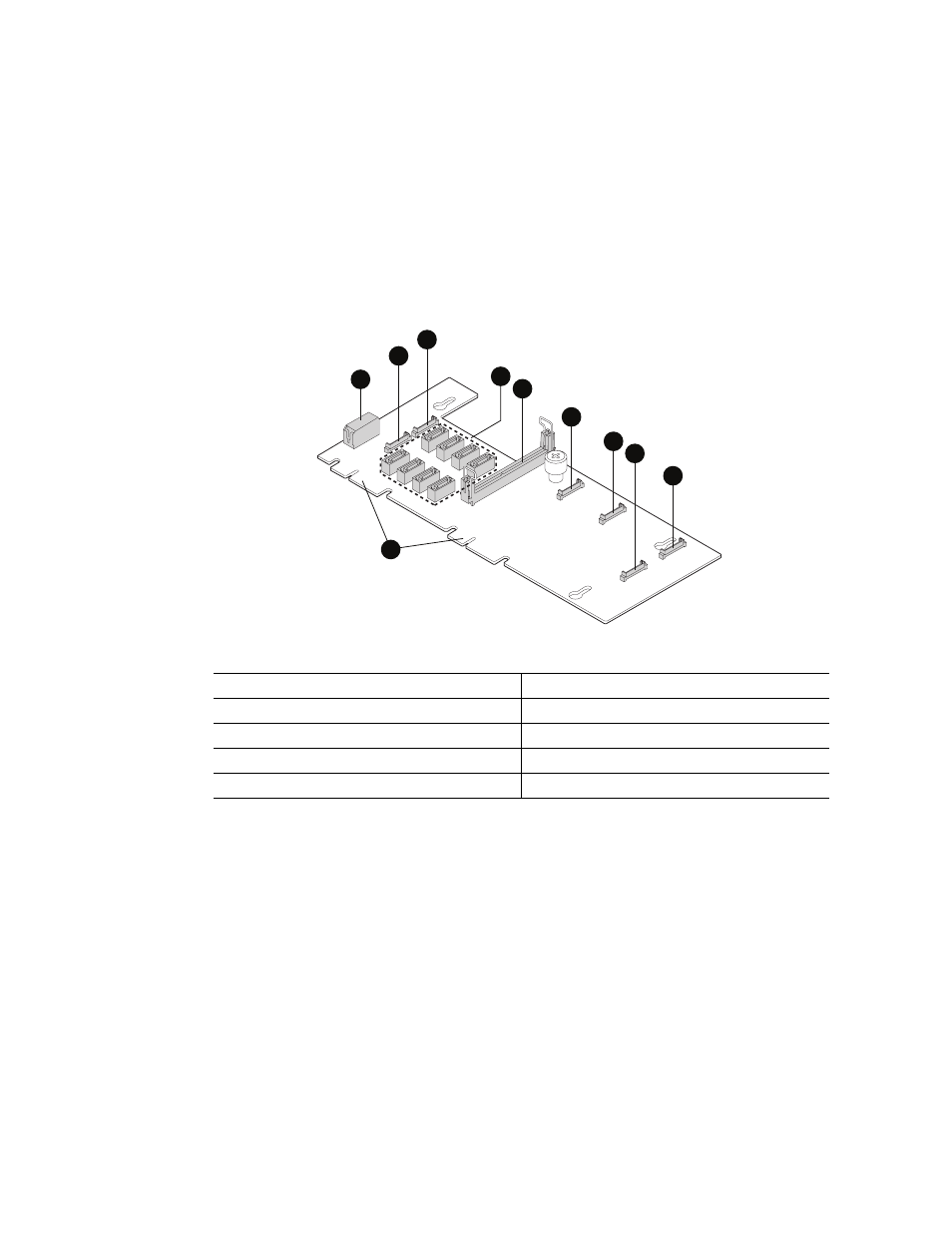

Figure 8. Passive Mid-Plane Components
Note: SATA connectors 6 and 7 are not used in the Intel
®
Server System SR2500ALLX and/or
the Intel
®
Server System SR2500ALBRP.
AF000047
E
A
J
B
C
F
G
I
H
D
A.
Mid-plane Power
F.
Fan 4 Power
B.
Fan 6 Power
G.
Fan 3 Power
C.
Fan 5 Power
H.
Fan 1 Power
D.
SATA 0-7 Connectors
I.
Fan 2 Power
E.
Bridge Board Connector
J.
Backplane Connectors
