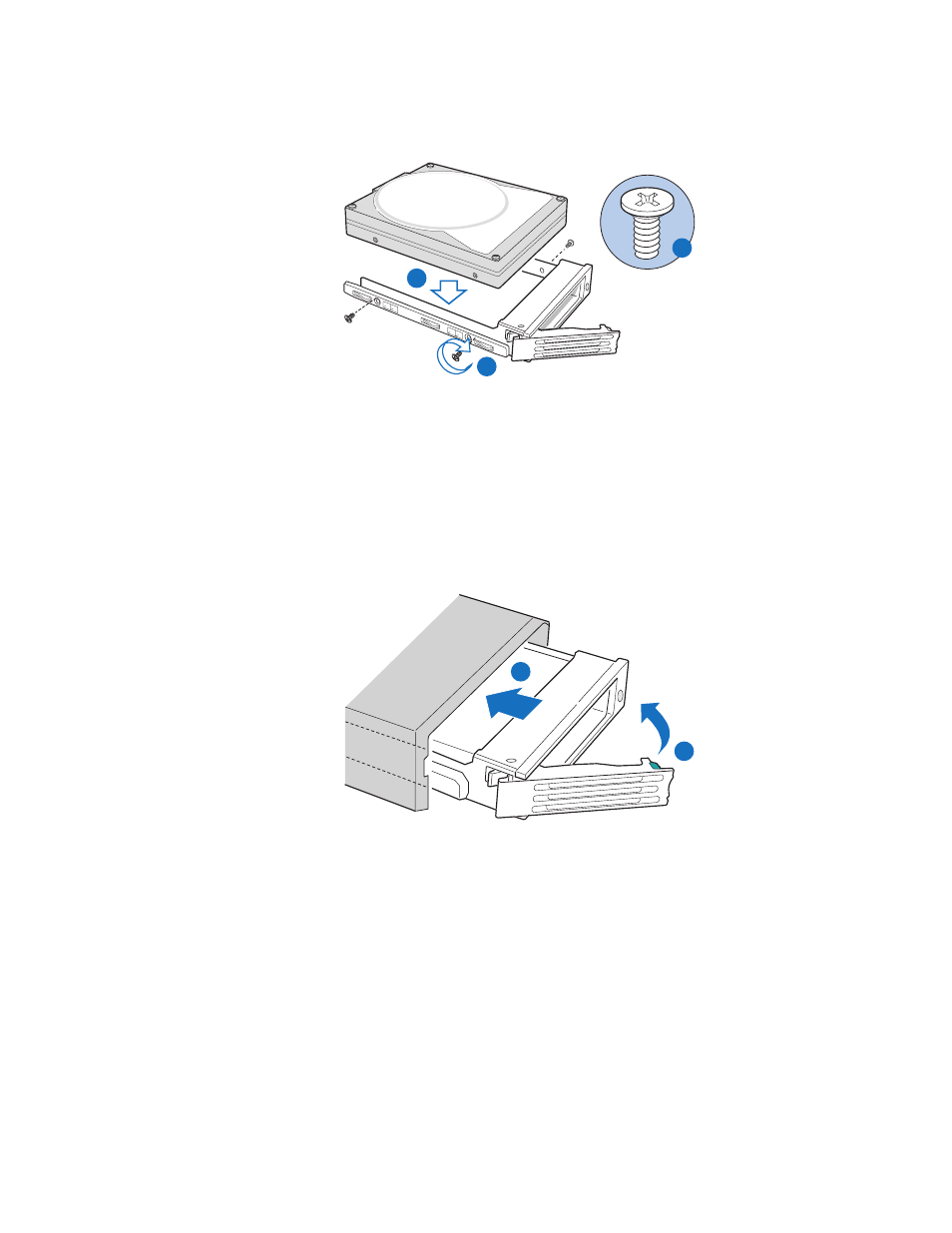

Figure 36. Installing Hard Drive into Carrier
9. With the black lever in the fully open position, slide the drive assembly into the
server system. The green latch at the front of the drive carrier must be to the right.
Do not push on the black drive carrier lever until the lever begins to close by itself.
10. When the black drive carrier lever begins to close by itself, push on it to lock the
drive assembly into place.
Figure 37. Install Drive Assembly into the Server System
11. Install the server system cover. For instructions, see
12. (Optional) Install the front bezel. For instructions, see
13. Plug all peripheral devices and the AC power cable(s) into the server.
TP02143
A
B
B
TP02144
A
B
