52 Intel® Server System SR2500AL User’s Guide
4. Remove the server system cover. For instructions, see “Removing the System
Cover” .
5. Remove the tape drive filler panel from the server system by using a long
screwdriver to push it out from the inside of the server system. See the figure below
to locate the tape drive filler panel.

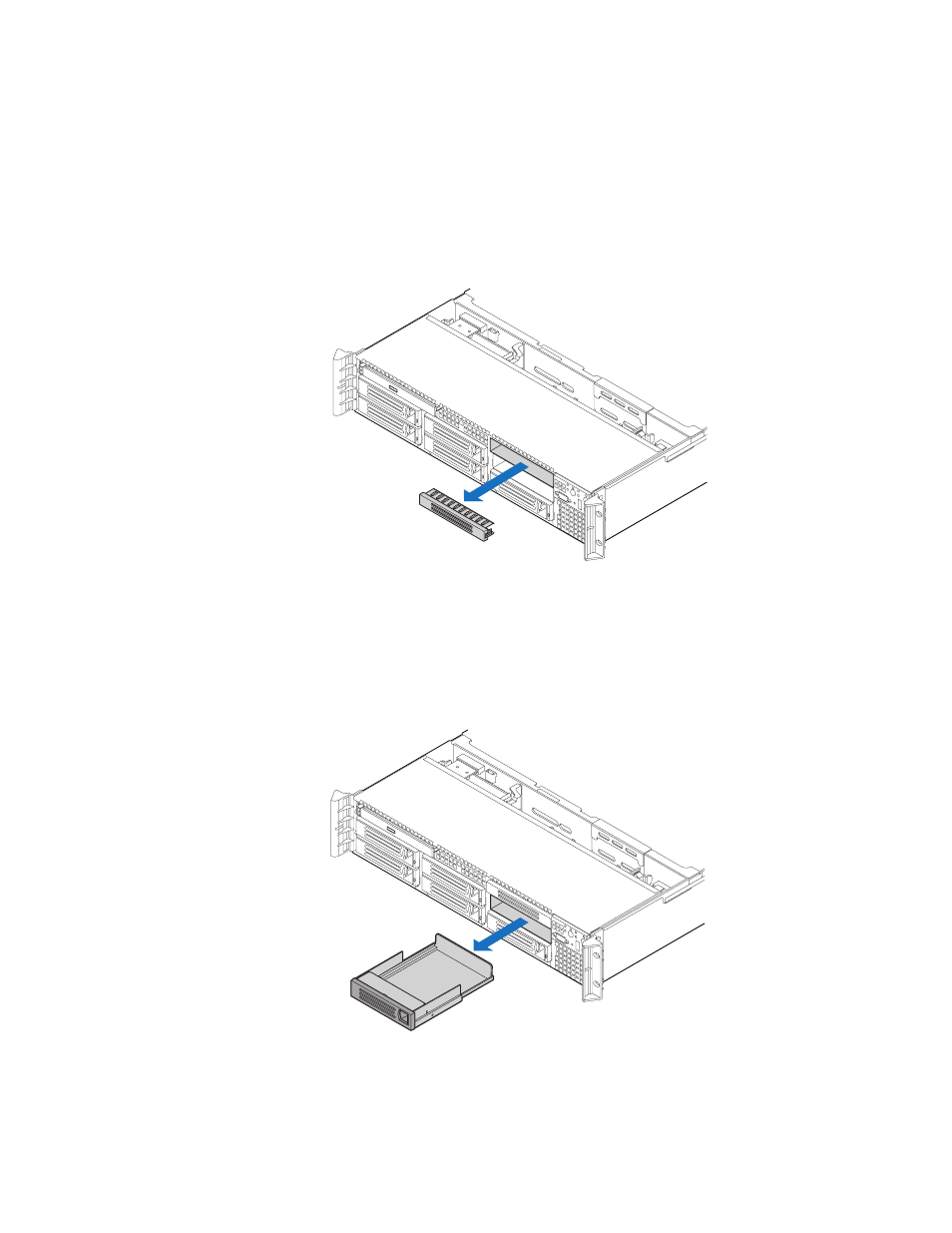

Figure 43. Removing Tape Drive Filler Panel from the Server System
6. Remove the hard drive blank that is installed in the sixth drive bay. See the figure
below to locate the sixth drive filler panel.
Figure 44. Removing Sixth Drive Filler Panel from the Server System
AF000036
AF000035
