Removing the front bezel, Unlock the bezel, Pull the bezel from the server system – Intel SERVER SYSTEM SR2500AL User Manual
Page 51: Figure 18. removing the front bezel
Intel® Server System SR2500AL User’s Guide
29
Removing the Front Bezel
Use the steps below if your system includes a front bezel.
1. Unlock the bezel.
2. Disconnect any cables attached to the control panel.
3. Pull the bezel from the server system.

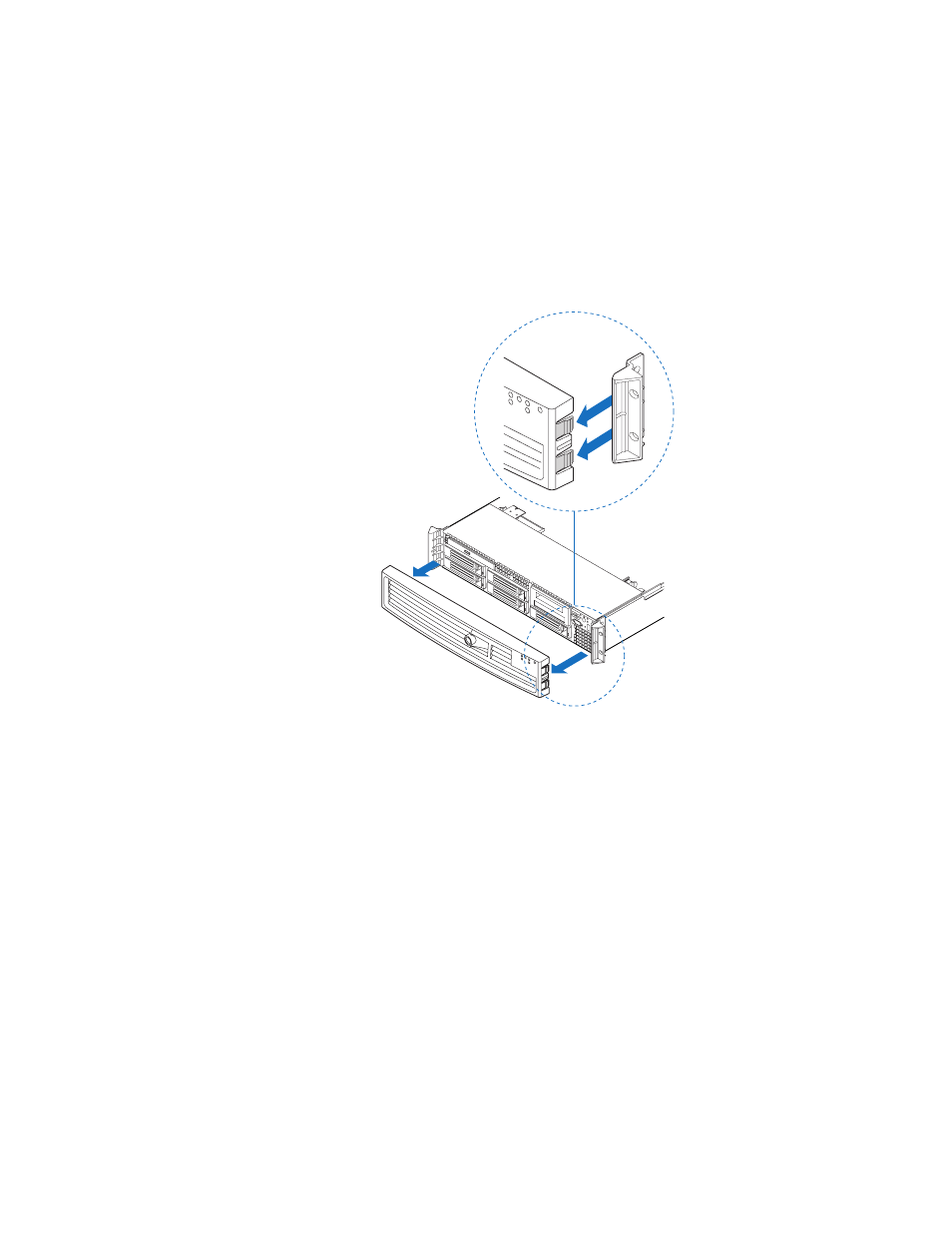

Figure 18. Removing the Front Bezel
TP02129
