Figure 45. inserting a tape drive into the carrier – Intel SERVER SYSTEM SR2500AL User Manual
Page 75
Intel® Server System SR2500AL User’s Guide
53

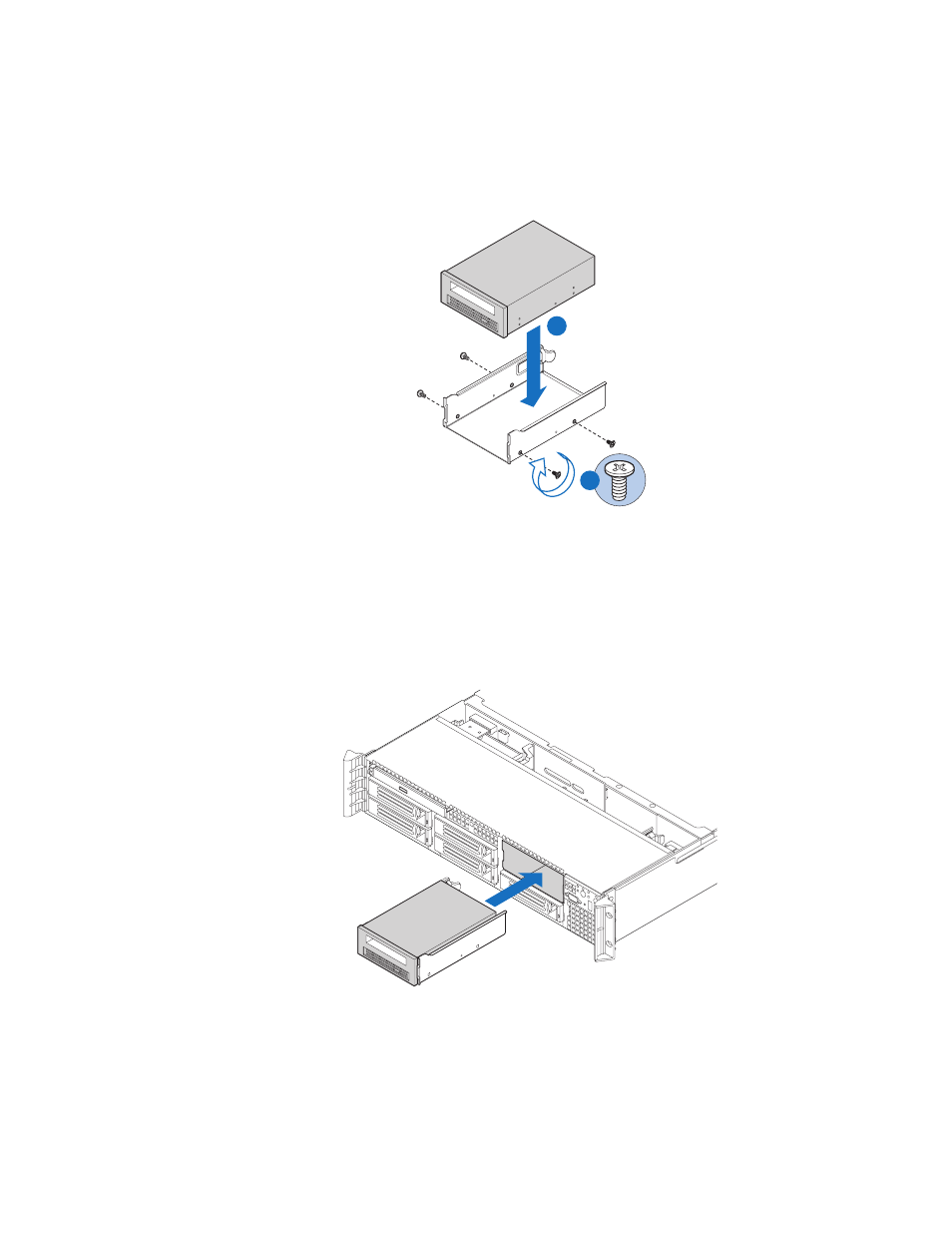

7. Attach the tape drive to the tape drive carrier kit using the four screws that were
included with the tape drive kit. See the figure below.
Figure 45. Inserting a Tape Drive into the Carrier
8. Slide the tape drive carrier with the installed tape drive into the combined tape drive
bay/sixth drive bay until the carrier clicks into place.
Figure 46. Installing Tape Drive Assembly into the Server System
AF000032
A
B
AF000033
