Hardware Maintenance Manual: IBM PC Server/Enterprise Racks
Power Distribution Unit
Note:
For information and installation instructions for the IBM NetBAY Rack Power
Distribution Units, see “NetBAY Power Distribution Units” on page 141.

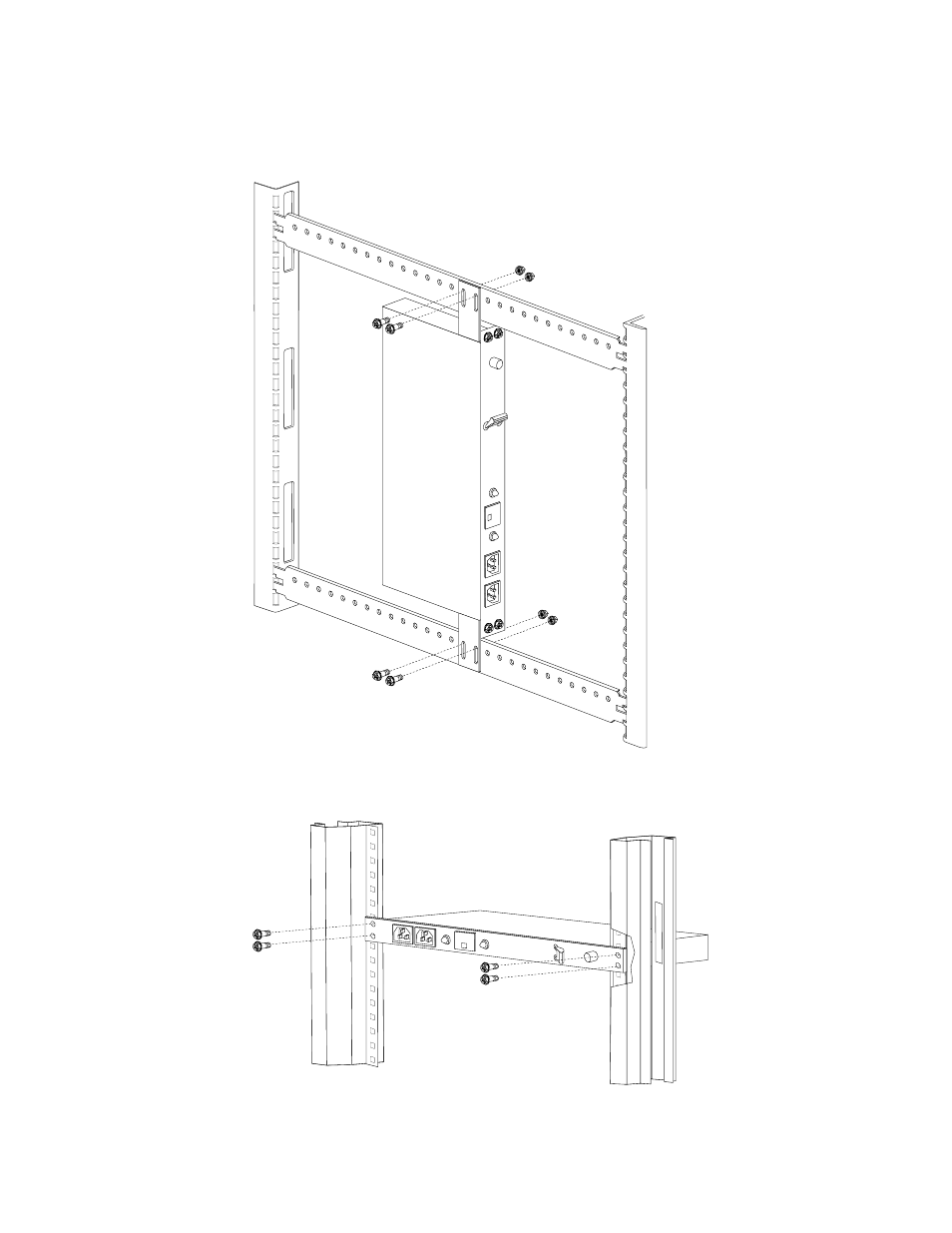

Figure 6. Power Distribution vertical installation
Figure 7. Power distribution horizontal installation
REAR
FRONT
