100

Hardware Maintenance Manual: IBM PC Server/Enterprise Racks

Fixed shelf

Note:

A fixed shelf can support a device or option weighing up to 45kg (100 lbs).

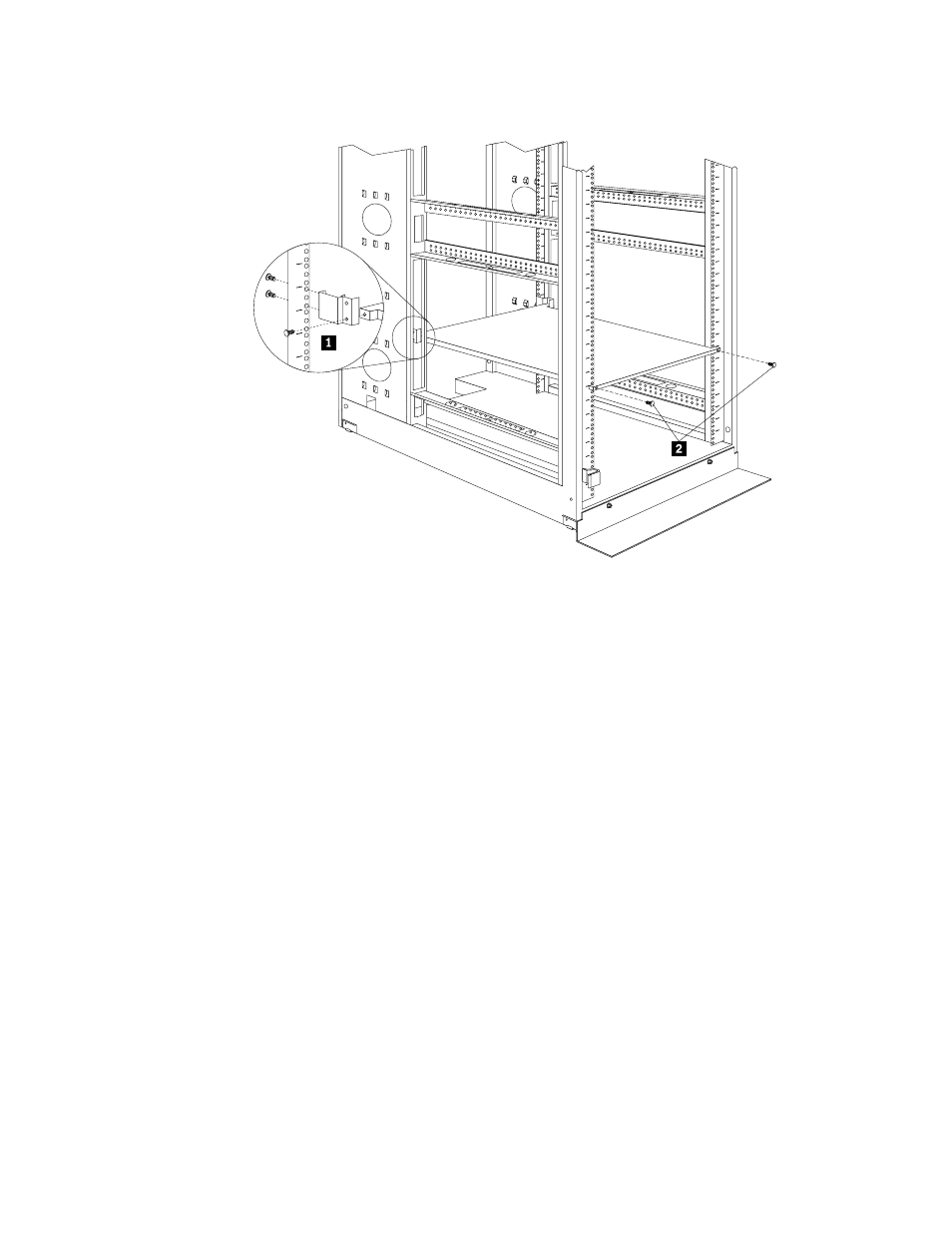

To install a fixed shelf:

1.

Determine the location for the fixed shelf within the rack.

2.

Secure the threaded mounting brackets

c1d to the rear of the shelf; then, secure

the brackets to the rack with two screws and clip nuts per bracket.

3.

Secure the front of the shelf

c2d with two screws and clip nuts.
