NetBAY Power Distribution Units
145
2. Verify that the circuit breaker switch is in the Off position before installing
your Rack PDU.
3. Install the horizontal mounting bracket
c3don one side of the Rack PDU c5d with
M3x5 screws c4d.
Note: There are two sets of mounting holes on the bracket. You can align the
Rack PDU to be even with the back of the rack cabinet or recessed inside,
depending on how you install the bracket.

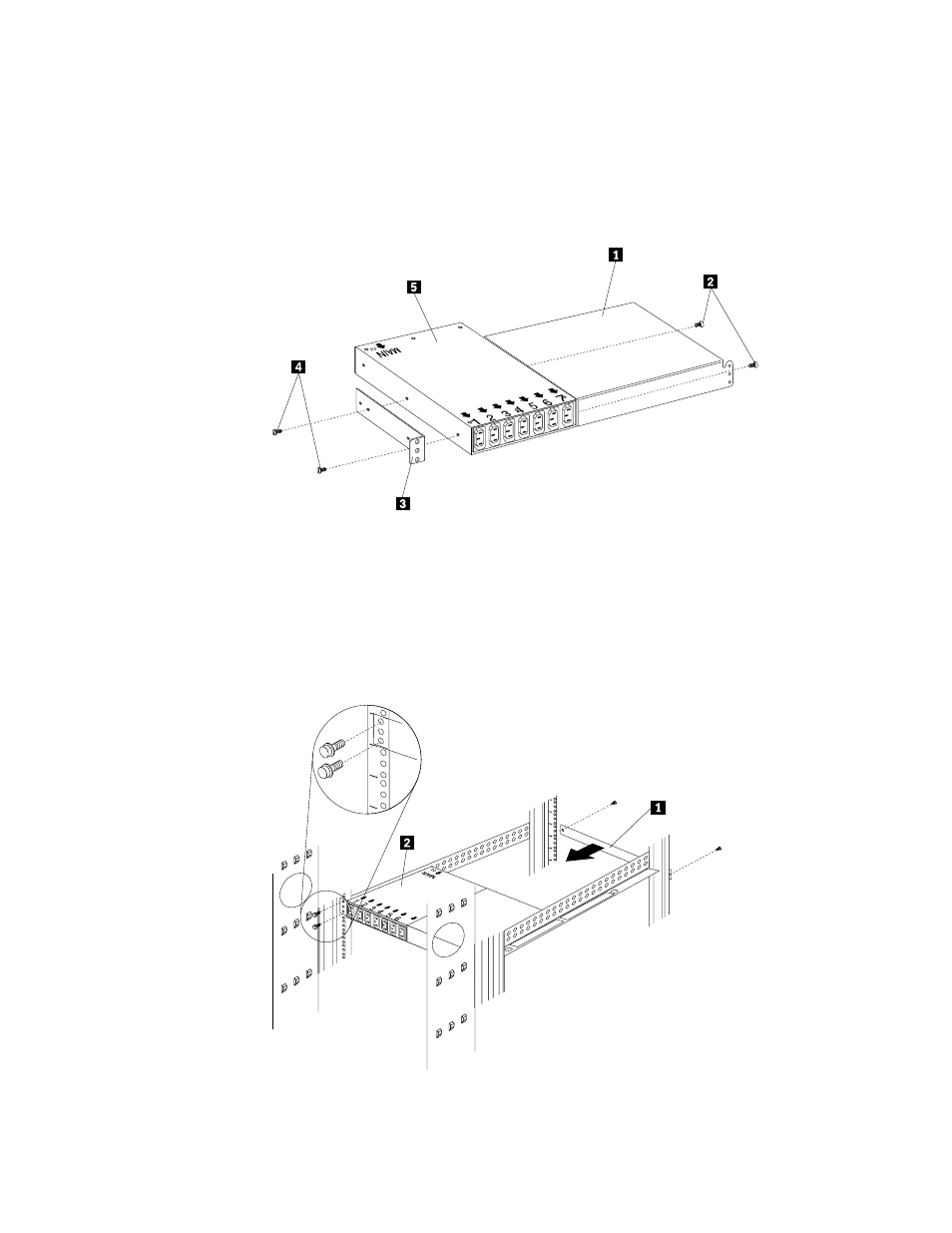

Figure 61. Installing the mounting brackets for a single device
4. Install the single-device attachment bracket c1d on the other side of the Rack PDU
c5d with two M3x5 screws c2d. Make sure that you use the same set of mounting
holes on this bracket as you used on the bracket in the previous step.
5. Determine the U level within your rack cabinet where you are going to install the
Rack PDU; then, install the Flat Panel Monitor Rack Mount Kit and bracket
assembly
c2d in the rear of the rack cabinet with four M6 screws and clip nuts or
cage nuts (two screws and nuts per bracket).
Figure 62. Installing the Rack PDU and the blank filler panel
