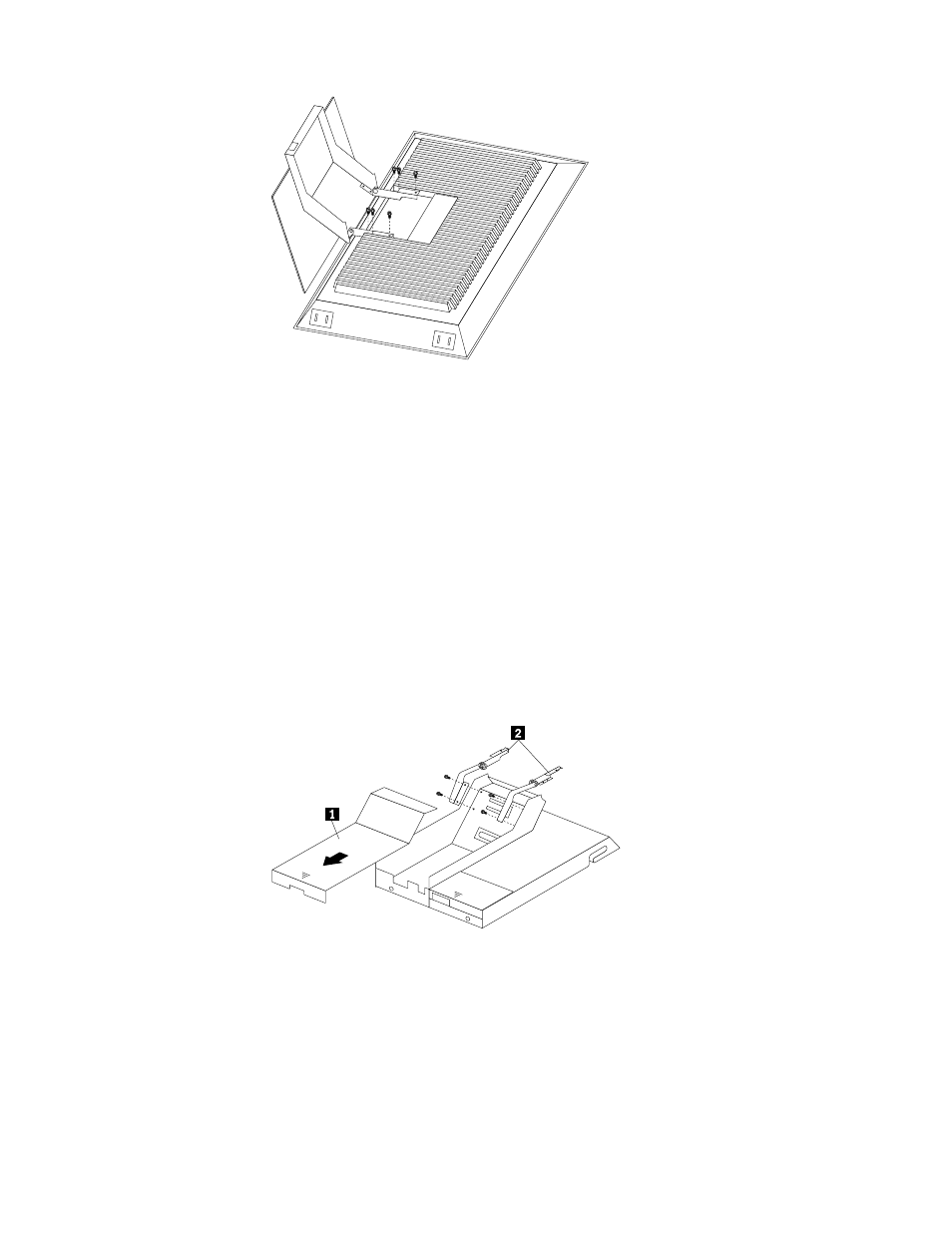

Figure 48. Removing the existing monitor stand from the monitor
7. Lift off the hinge and monitor stand assembly. Store this assembly in a safe place
for possible future use.
Installing the new monitor stand
Refer to “Removing the existing flat panel monitor stand” on page 103 for instructions
on how to remove the existing stand from the flat panel monitor. Before installing the
new stand, install the keyboard tray in the rack according to the instructions that
come with the rack or the keyboard tray option.
Note: The Flat Panel Monitor Rack Mount Kit and keyboard tray require 3U of rack
mounting space. If the keyboard tray does not have at least 2U of clearance
above it, relocate the keyboard tray within the rack.
Use the following steps to install the Flat Panel Monitor Rack Mount Kit:
1. Remove the cable cover c1d from the new monitor stand; then, remove the four
screws (two per hinge) that secure the hinges c2d to the stand.
Figure 49. Removing the hinges from the new monitor stand
2. Install the hinges on the flat panel monitor, using the six screws that you removed
from the old monitor stand.
