164
Hardware Maintenance Manual: IBM PC Server/Enterprise Racks
7. Route each line cord towards a dedicated power source. Use the provided cable
straps to secure the line cords along the way. Use the openings in your rack
cabinet, if you must exit the rack cabinet to connect to your power source.
8. After you connect both line cords to properly wired and grounded dedicated
power sources, you can connect up to three other M/PDU family devices to the
three power outlets on each Rack PDU. Route all other power cables neatly, and
use the cable-management bracket to secure the cables that you plug into the
outlets on the Rack PDU.

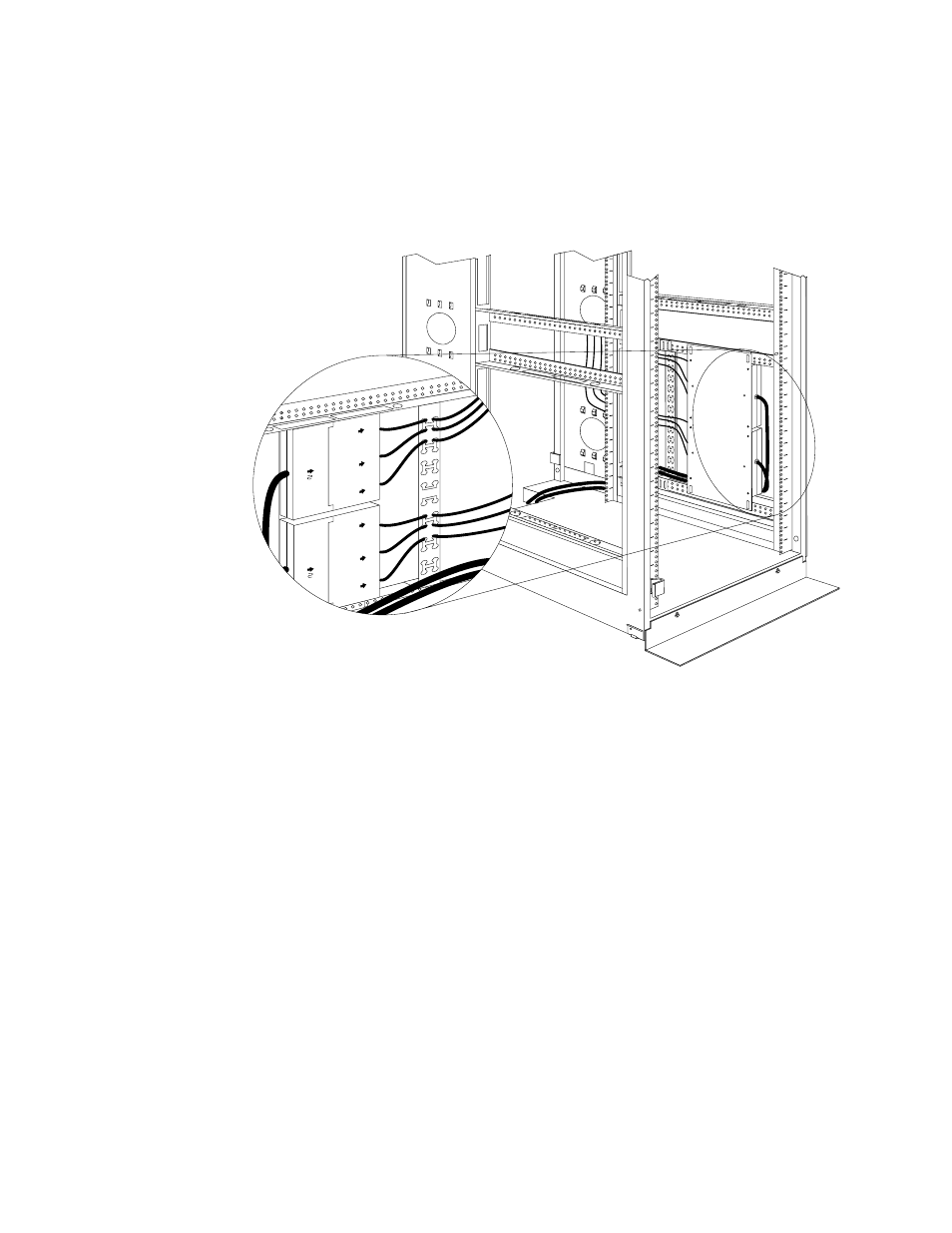

Figure 76. Connecting and routing other power cables to the outlets
Rack PDU specifications
When connected to a properly wired, grounded, and dedicated power source, the
Rack PDU conforms to UL950, CSA 22.0-950, EN-60950, and IEC-950 standards. The
following table contains the product specifications for the Rack PDU:
1
1
2
2
3
3
MAIN
M
AIN
