IBM PC Server/Enterprise Racks 42S - Manual (Page 32)

24
Hardware Maintenance Manual: IBM PC Server/Enterprise Racks
Selector switch cable connections

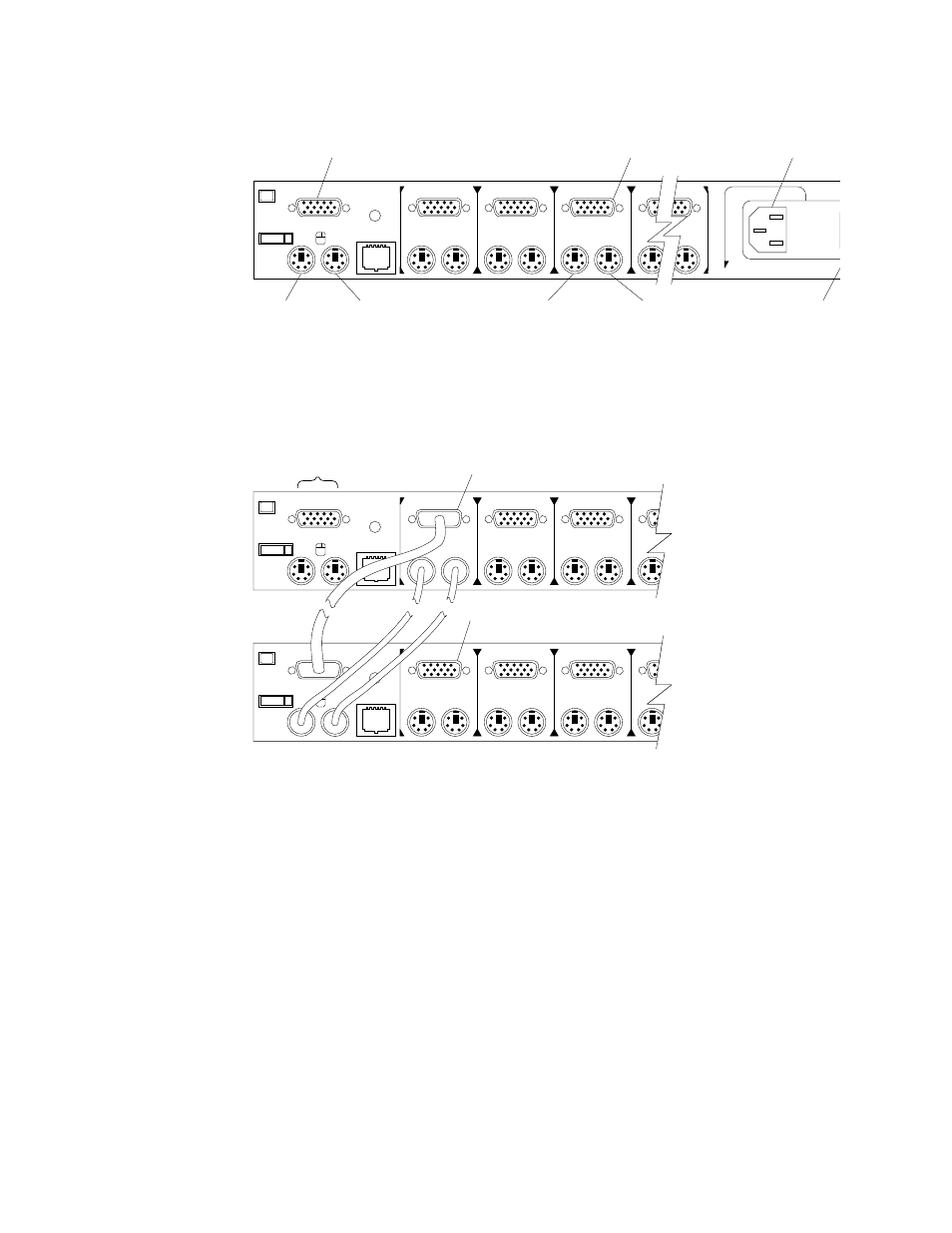

Tiered switch configuration
One eight-port primary selector switch can accommodate up to eight secondary
selector switches which can then support up to 64 servers.
Note:
There are two types of selector switches available:
• 4 port
• 8 port
One
K M
Three
K M K M K M
Two
Aux.
Reset
Important Information
Power Co
Connecto
Power
Switch
Computer 3
Mouse
Computer 3
Keyboard
Computer 3
Monitor
Mouse Keyboard
Monitor
One
K M
Three
K M K K M
Two
Aux.
Reset
Monitor
Keyboard
Mouse
Connectors
One
K M
Three
K M K K M
Two
Aux.
Reset
System 1 to 8
System 1-1 to 1-8
